Quartet User’s Guide
2-8
All specifications subject to change without notification. All rights reserved. Copyright © 2007 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
(EIA / TIA 568a termination required)
Keypad connector-power
Caged Euro Style
Phoenix connector
IR Source control output
Infrared LED flashed; 38 and 56KHz supported
Input level
2 Vrms
Input Impedance
10k Ohms
Output Level
2.0 Vrms
Power
100-240 V AC, 50-60 Hz
Power Consumption
150W
In-wall dimensions
4 1/5” x 3 7/10” x 1 24/25”
(backbox) (W x H x D)
(106mm x 94mm x 50mm)
Fits standard 2 gang box
Outside dimensions
4 3/10” x 5 1/10” x 2/5”
(faceplate) (W x H x D)
(110mm x 130mm x 10mm)
Weight
0.74 lbs (0.33 kg)
(back box with electronics)
Optional Add-On Audio Port (AP500)
A dealer can purchase an optional add-on Audio Port (AP500) for each keypad to add
an additional audio source. The AP500 is sold separately. See Figure 2-7 for the front
panel of the Audio Port. See Figure 2-8 for the rear panel of the Audio Port.

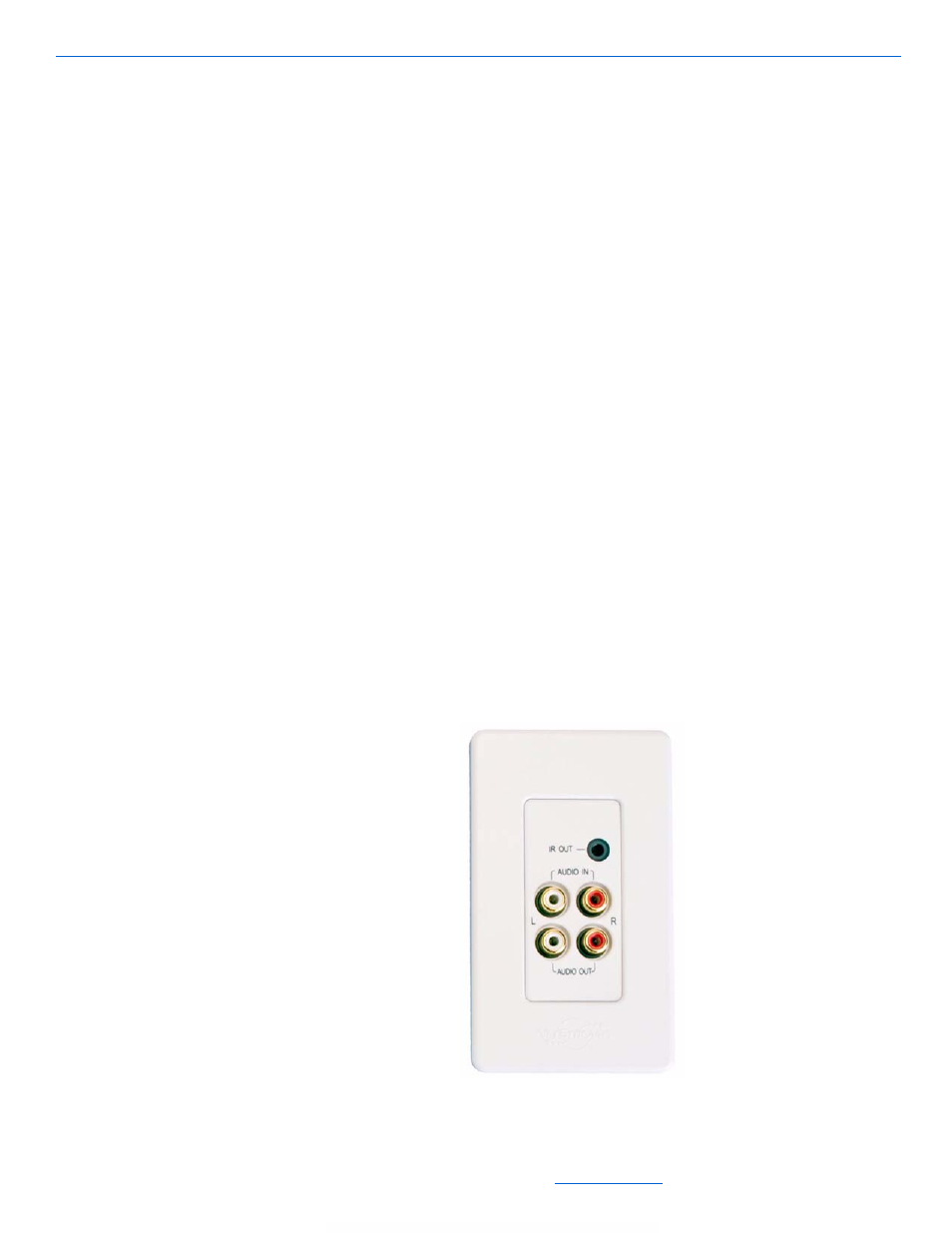

Figure 2-7
Audio Port (front panel)
