Repeat - repeats the currently selected song.
12.
Skip Track Back - goes to next track
13.
Skip Track Forward - goes to previous track
14.
Rewind - rewinds the current song.
15.
Fast forward - fast forwards the current song.
16.
Stop - stops the currently selected song.
17.
Mode - Toggles the mode setting for the currently selected source.
In-Wall Keypad Rear Layout

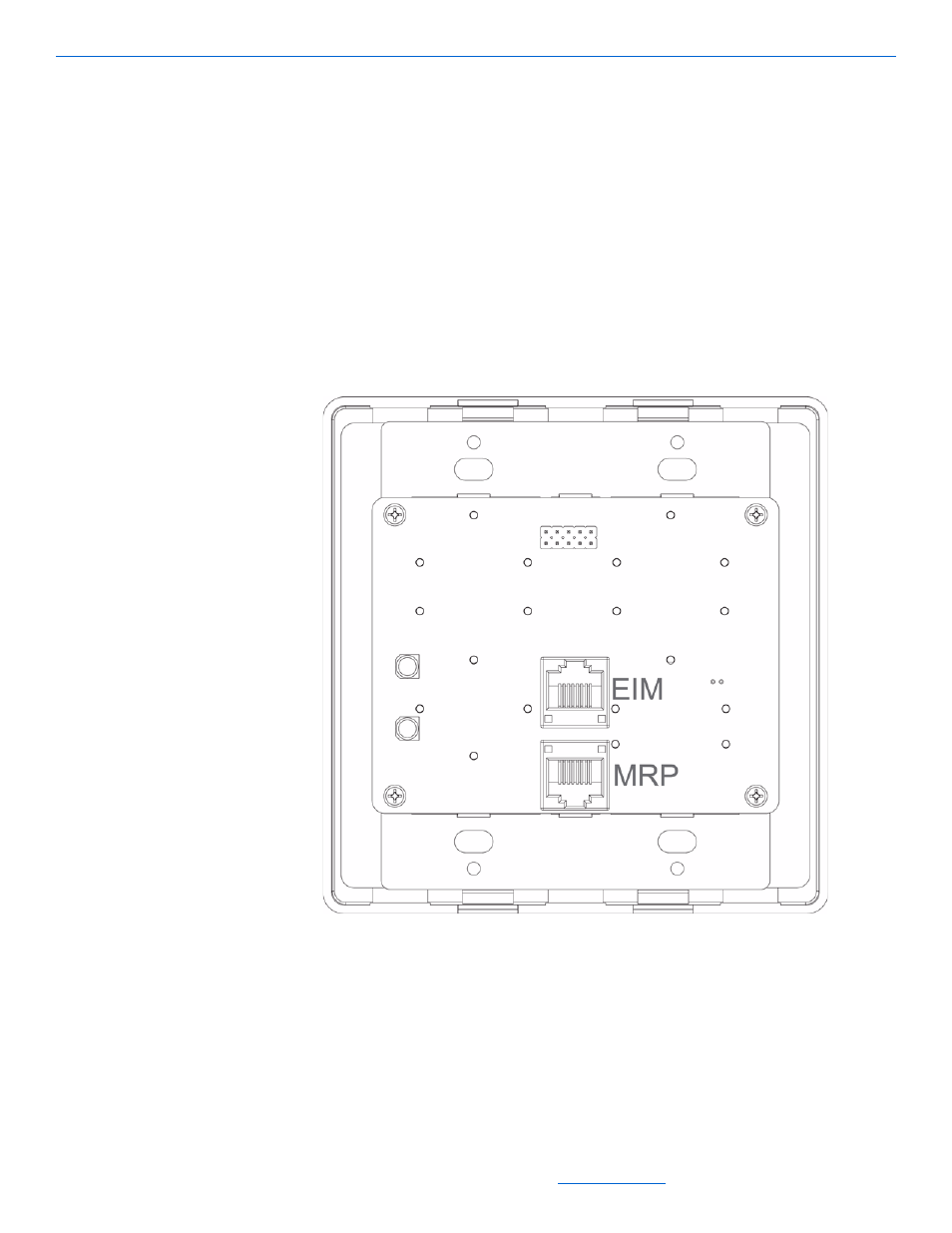

See Figure 2-6 for a diagram of the in-wall keypad rear layout.
Figure 2-6
In-Wall Keypad Rear Layout
Quartet Keypad Specifications
FM Tuner
Channel Separation
50KHz, 100KHz, 200KHz
Keypad 2-Gang,
Decora-compatible
Keypad connector-data
8-pin RJ45 data jack
