In-Wall Keypad Layout and Specifications
In-Wall Keypad Front Layout

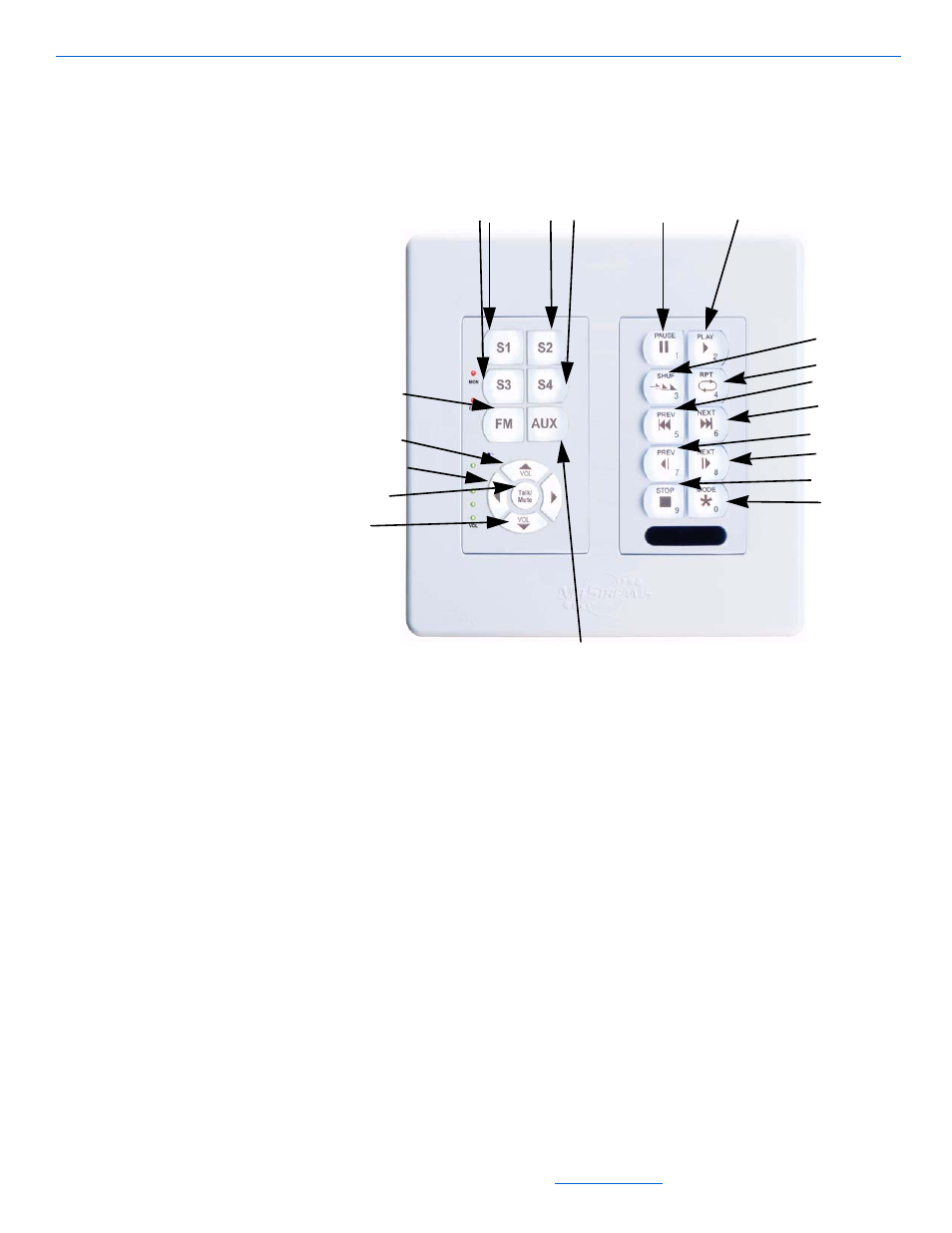

Figure 2-5 Quartet Keypad
1. Source Selection Buttons - used to select a specific global source connected to the MRP.
Turns off the source when pressed a second time.
2. FM Tuner - to select the FM tuner. Press and hold to scan. Pressing a second time after
initial selection will turn off the room.
3. AUX - selects source connected to local or global Audio Ports (in the room or in another
room).
4. Right and left arrow - for FM tuning.
5. Up arrow - volume up.
6. Talk/Mute - press once to mute. Press and hold for 1 second (button will blink), then
release to intercom with a specific room. S1 through S4 will light to allow selection of
rooms 1 - 4. Press and hold Talk/Mute for 4 seconds for an all rooms page.
7. Down arrow - volume down.
8. Pause - pauses the music.
9. Play - plays the currently selected source.
10. Shuffle - Turns the source’s Shuffle setting ON or OFF.
1. Source Selection Buttons
2.FM Tuner
3. Selects the Source Connected to the Audio Port
4. FM Scanning
5. Volume Up
7. Volume
Down
8. Pause 9. Play
10. Shuffle
11. Repeat
12. Skip Track
13. Skip Track
14. Rewind
15. Fast Forward
16. Stop
17. Mode
6. Talk/Mute
Back
Forward
