SARGENT 8200 Mortise Lock with BHL Trim - Manual (Page 2)

Inside of
door
Inside of
door
Outside of
door
9. Slide cylinder (A) through spring (B) & collar (C) and thread into lock until
cylinder face is flush with collar (C). Pull the key slightly out of the cylinder
to help thread.
Note: SARGENT logo must be horizontal & in an upright position.
10. Tighten cylinder clamp screw and wood screws by hand with #2 Phillips
screwdriver.
11. Assemble thumbturn/emergency release according to instructions on bag.
12. Attach outside front plate (H) with two #8-32 x 1/4" flat head screws (I).
13. Check for proper operation.
Note: To check for proper lock operation by function number see catalog
(www.sargentlock.com).
5. Insert spindle (E) into inside trim of lockbody hub.
6. Slide adapter plate assembly (F) over spindle & secure with two #8-32
screws (G).
7. Tighten rose (J) firmly onto adapter plate assembly (F). Align holes
and install security set screw (K) to plate assembly (F) with security torx
screwdriver.
8. Attach inside lever and secure with security torx screwdriver. Verify lock
is operating correctly prior to closing door.
Important: Check template A7057 to prep door for function
holes, size and location. Verify strike location according to
template. Clean door pocket and verify hand of lock.

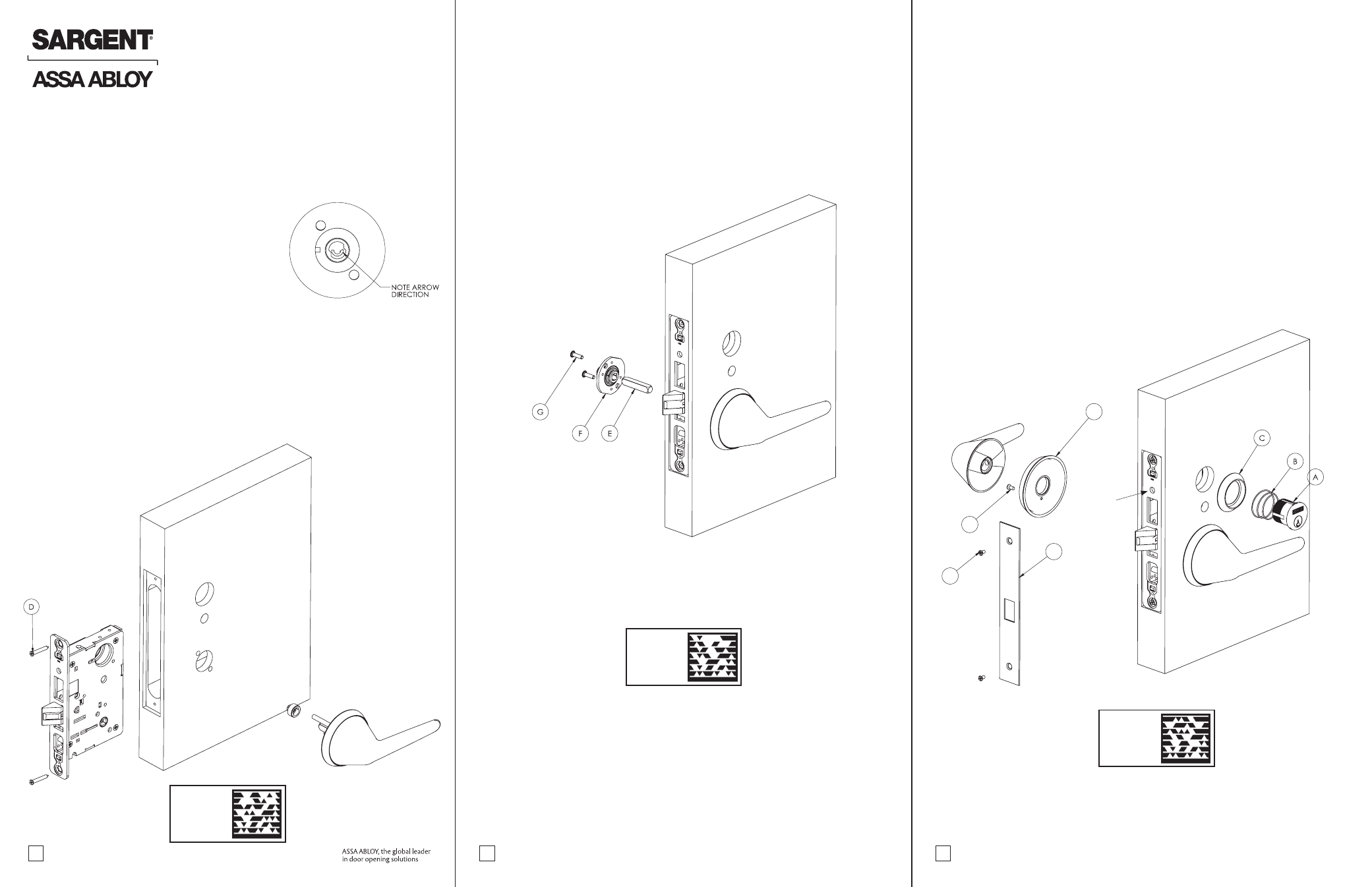

1. Slide lock body in door pocket.
2. Secure lock in door with two wood screws #12 x 1-1/4" or
machine screws #12-24 x 1/2" (D).
3. Insert spindle adapter into lockbody on the
outside trim, as shown in image at right.
Note: Spindle adaptor only goes on the
outside trim.
4. Slide outside lever & rose assembly (or lever &
escutcheon assembly) onto the door and lock body.
Note: Keep door open while installing lock.
Note: If installing trim one side, see separate instruction sheet.
When the spindle adaptor is installed correctly the lever will
free wheel up.
RH Door Shown
R/C & I/C cylinder cores require Control key
(stamped ”C”) to install. Must request
separately. If 1 bitted—specify 11311 cut.
J
K
I
H
4 3 2
J
K
I
H
Cylinder
Clamp
Screw
A8131:C
Copyright © 2012, 2014, Sargent Manufacturing Company, an ASSA ABLOY
Group company. All rights reserved. Reproduction in whole or in part without the
express written permission of Sargent Manufacturing Company is prohibited.
