3
Copyright © 2009, 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
A7393D 3-10-10
E

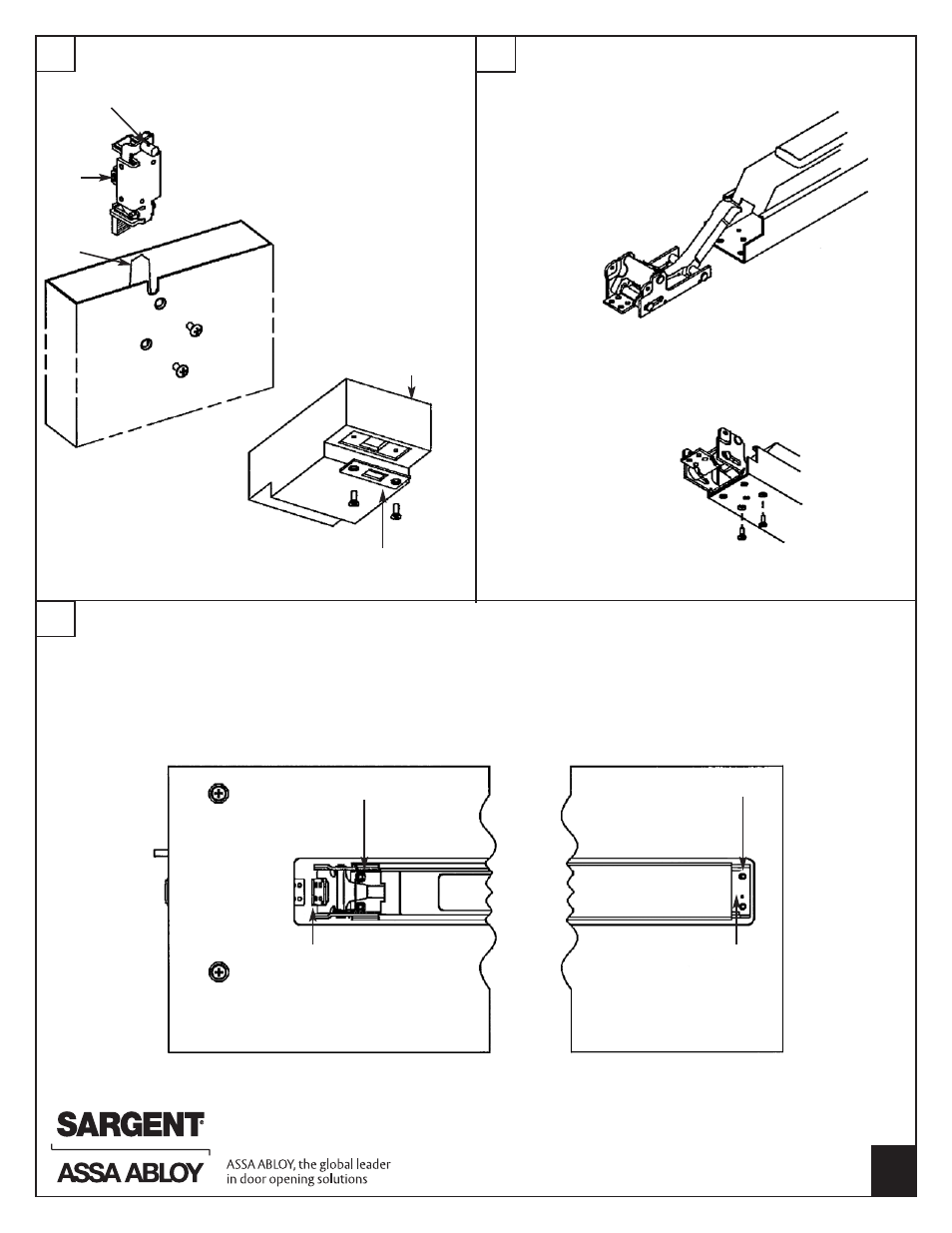

INSTALL TOP CASE AND STRIKE
F
INSTALL CHASSIS IN RAIL
1) Slide top case over top bolt until
threaded holes line up with 2 C-Sunk
holes at the top of the door.
2) Using (2) #10-24 x 3/8" oval head screws
fasten top case in place.
3) Mount top strike to frame using (2)
#10-24 flat head screws provided.
NOTE: Ensure notch at the
top of the door is large
enough, so that there is no
interference or bind with
the top case button.
Top case
button
Top
case
Top
bolt
Frame header
section
650
strike
1) Depress lift arm and slide chassis into
rail as shown.
2) Align tapped holes in chassis to C-Sunk
holes in rail. Using (2) #6-32 flat head
screws, secure chassis to rail.
G
1) Rotate link connector up and place rail assembly in door cavity as shown.
2) Align C-Sunk holes in chassis with tapped holes in door and secure with (2) #10-24 flat head screws.
3) Position mounting bracket to support end of rail and secure with (2) #10-24 pan head screws.
INSTALL RAIL
#10-24 flat
head screws #10-24 pan
head screws
Link
connector Mounting
bracket
