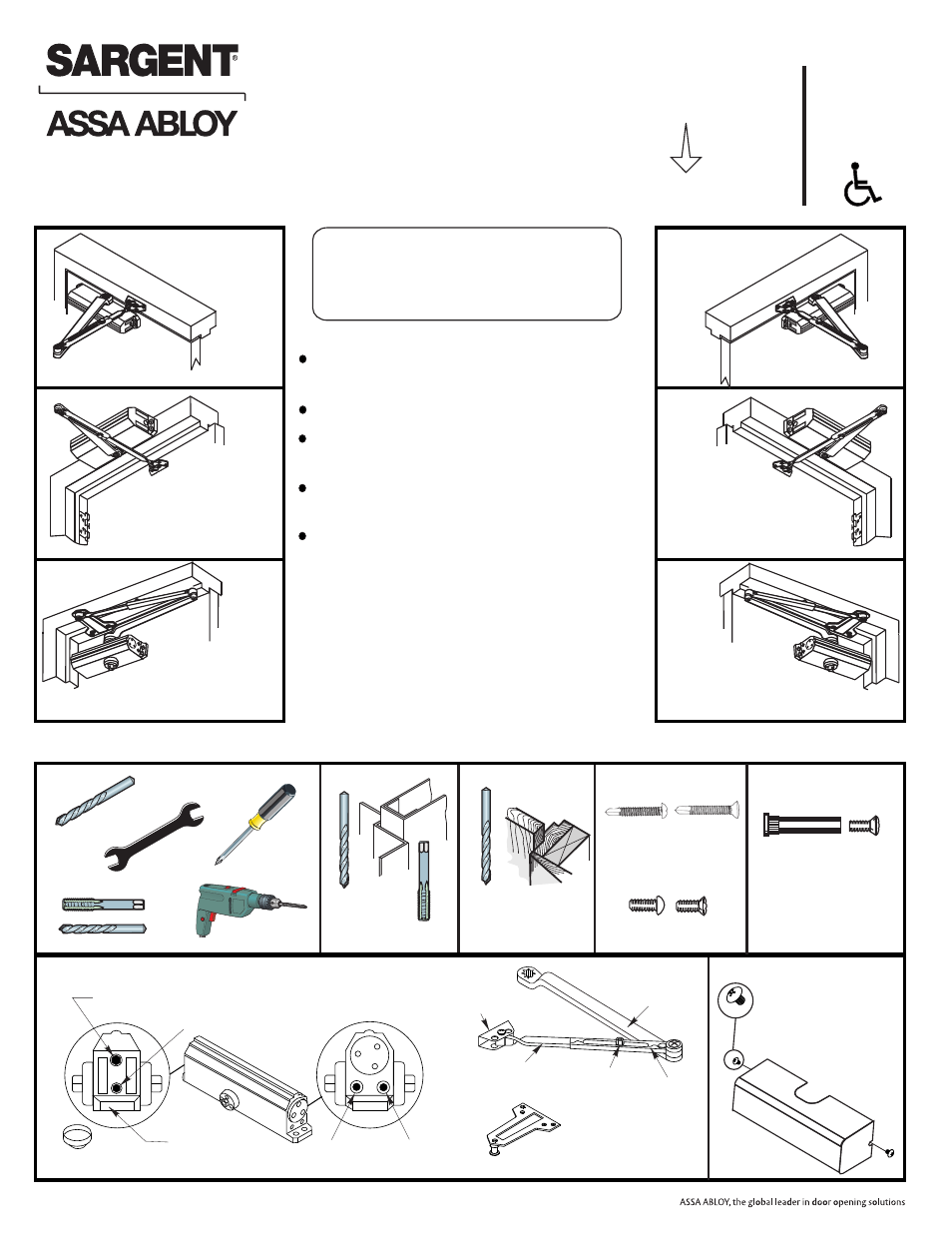

SARGENT 1130 Series - Manual

Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Top Jamb
Installation
See Page 5
Regular Arm
Installation
See Page 2
Parallel Arm
Installation
See Pages
3 & 4
Parallel Arm
Installation
See Pages
3 & 4
CA
UTION
CA
UTION
An Incorrectly installed or improperly adjusted
door closer can cause property damage or
personal injury. These installation instructions
should be followed to avoid the possibility of
misapplication or misadjustment.
Installation Instructions
80-9311-0001-021 (12-12)
Non Hold Open Models
Sized
(Sizes 2,3,4,5)
1132
1133
1134
1135
Adjustable
(Sizes 3 thru 6)
1130
(Sizes 1 thru 4)
1131
Non Handed Door Closer
1130 Series Weaker
-
Stronger
+
Doors should be hung on ball bearing or
anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°.
These door closers should NOT be
installed on the exposed side (weather
side) of exterior doors.
3/16"
#7
1/4-20
Spring Power Adjustment Screw
1130/1131 Series Only
"BC" Valve
Pinion Cap
Closer
Size
Stamp
"L"Valve "S"Valve
Standard Components Optional Components
4
Closer Body
Co
ver
Sleeve Nut and Bolt
Drill 9/32 thru from Closer Side
3/8 Drill other side
(Optional)
Metal Wood
RU Soffit Plate
Used with Parallel
Arm Closers Only
Soffit Plate
Regular Arm/Top
Jamb Shoe
Main Arm
Connecting Rod
Forearm
Screw
Arm Slide
Arm Assembly
Machine Screws
#7 Drill, 1/4-20 Tap
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
A7674B Copyright © 2012, SARGENT Manufacturing. All rights reserved. Reproduction in whole or in
part without the express written permission of SARGENT Manufacturing is prohibited.
