SARGENT 281 Series Cast Iron Closer User Manual
Page 2

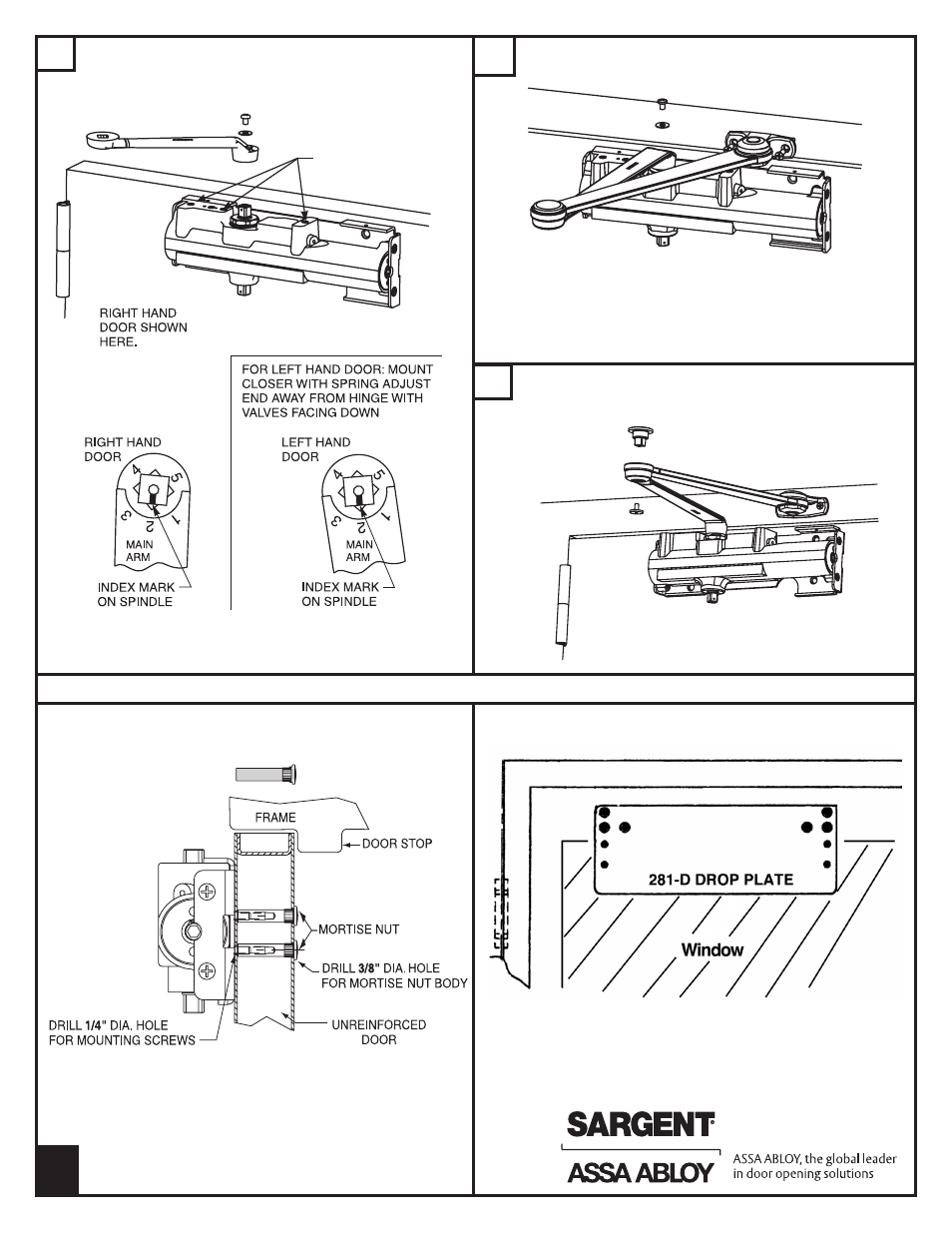

ACCESSORIES
OPTIONAL: USE MORTISE NUTS (#4TB)
WHEN THRU-BOLTING IS REQUIRED
D
A. ATTACH ARM WITH INDEX MARK ON SPINDLE
ALIGNED AS SHOWN BELOW
B. SECURE WITH SCREW AND WASHER.
D1
*
WARNING: IF NOT PROPERLY INDEXED, DOOR
CLOSER WILL NOT FUNCTION PROPERLY.
!!
!!
ALTERNATE METHOD FOR ATTACHING
PREASSEMBLED ARM
281 DROP PLATE USED WITH NARROW TOP RAILS.
E
A. INSTALL PIVOT AS SHOWN
B. USE SCREW TO SECURE PIVOT AND ARMS AS SHOWN
2
CLOSER VALVES
Copyright © 2012, 2014, Sargent Manufacturing Company, an ASSA ABLOY
Group company. All rights reserved. Reproduction in whole or in part without
the express written permission of Sargent Manufacturing Company is prohibited.
A7921C
