SARGENT 421 Cam Action User Manual
SARGENT Safety

A7959A
1

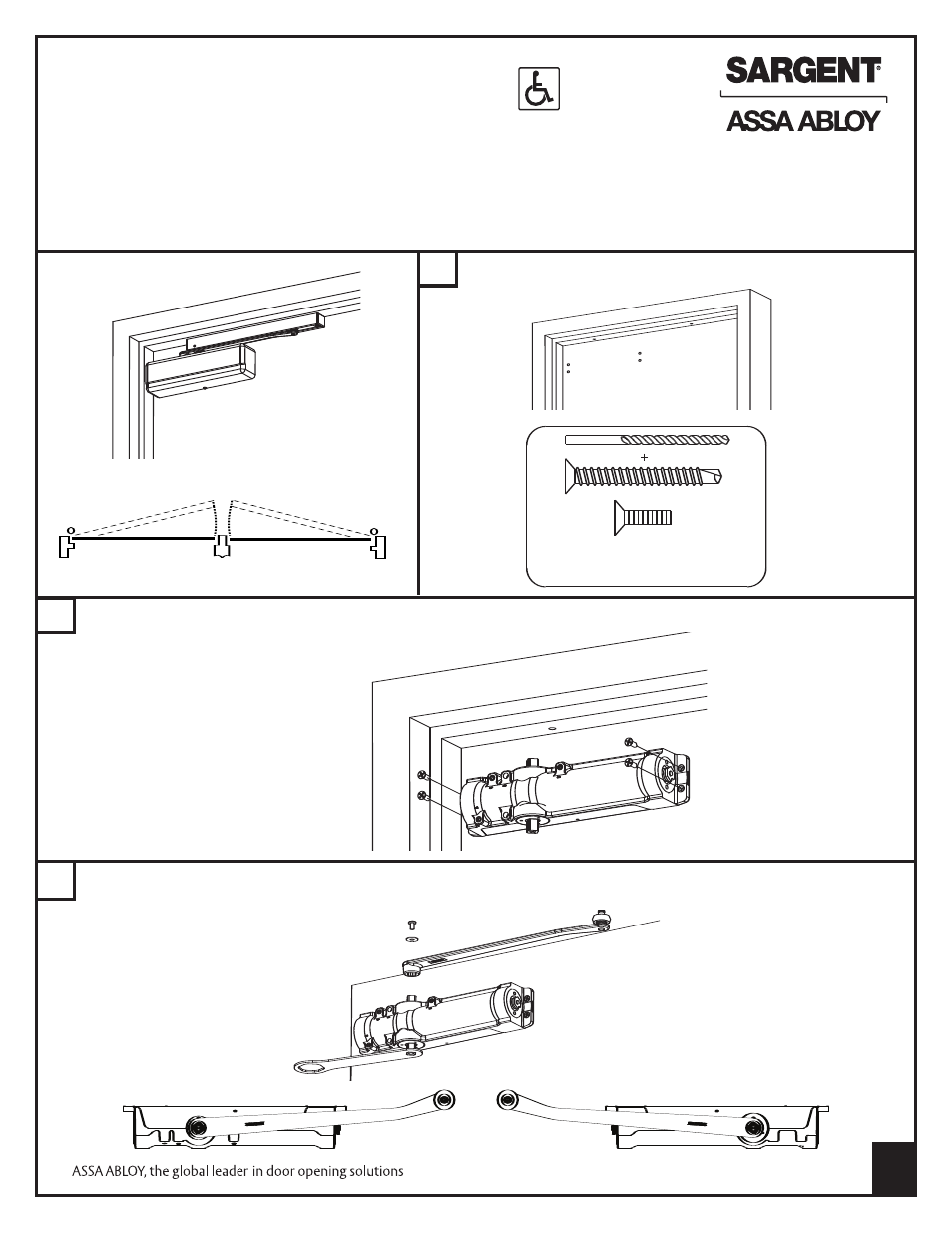

421 CAM ACTION DOOR CLOSER
(PCTB & PCHTB) PUSH SIDE TRACK
APPLICATION INSTALLATION INSTRUCTIONS
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE
For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com
NOTE: AN AUXILIARY DOOR STOP IS REQUIRED
B
LEFT HAND
SHOWN
MEASURE & MARK HOLES. PREP HOLES USING DIMENSIONS
ON PAGE 4
C
WITH A WRENCH, ROTATE THE BOTTOM SPINDLE TOWARD HINGE APPROXIMATELY 15°. SECURE ARM TO SPINDLE
WITH SCREW AND WASHER PROVIDED
A
HINGE SIDE
HINGE SIDE
STOP SIDE
STOP SIDE
RIGHT
HAND DOOR
LEFT
HAND DOOR
WITH PROVIDED FASTENERS, SECURE CLOSER BODY TO DOOR WITH POWER ADJUSTMENT FACING
AWAY FROM HINGE SIDE OF DOOR.
When using mortise nuts,
see accessories on page 3
Warning: If not properly indexed, door
closer will not operate properly
OR
Pre-drill - 3/32” holes
for self tapping screws or #16 drill and tap
#12-24 UNC for machine screws
©
S
a
rg
e
n
t
M
a
n
u
fa
c
tu
ri
n
g
C
o
m
p
a
n
y
2
0
0
7
Left Hand
Right Hand
Left Hand Shown
(Right Hand Opposite)
