SARGENT MPower 4000 User Manual
Introduction, Installation, Wiring

General Notes:
• The Model 4315 Receiver is not operable when 120VAC
power is removed from the 2600 Door Operator
• When 120VAC power comes back on (after being
removed), the door must be manually pushed open prior
to resuming automated operation
Introduction:
• The Sargent Model 4310 Key-Chain Transmitter is a
conveniently sized RF actuator (2
"
x 1.5
"
x 0.59
"
),
operating at 315 MHz and containing over 68 billion
possible codes. The unit is powered from a 12VDC alka-
line battery and includes an integrated flashing LED
for transmission indication
• The 4313 Transmitter mounts
behind a wall plate switch
• The Sargent Model 4315 Receiver
operates at 315 MHz and includes
approximately 30
"
of pre-wired
jacketed cable to simplify the installation
Installation:
Mounting:

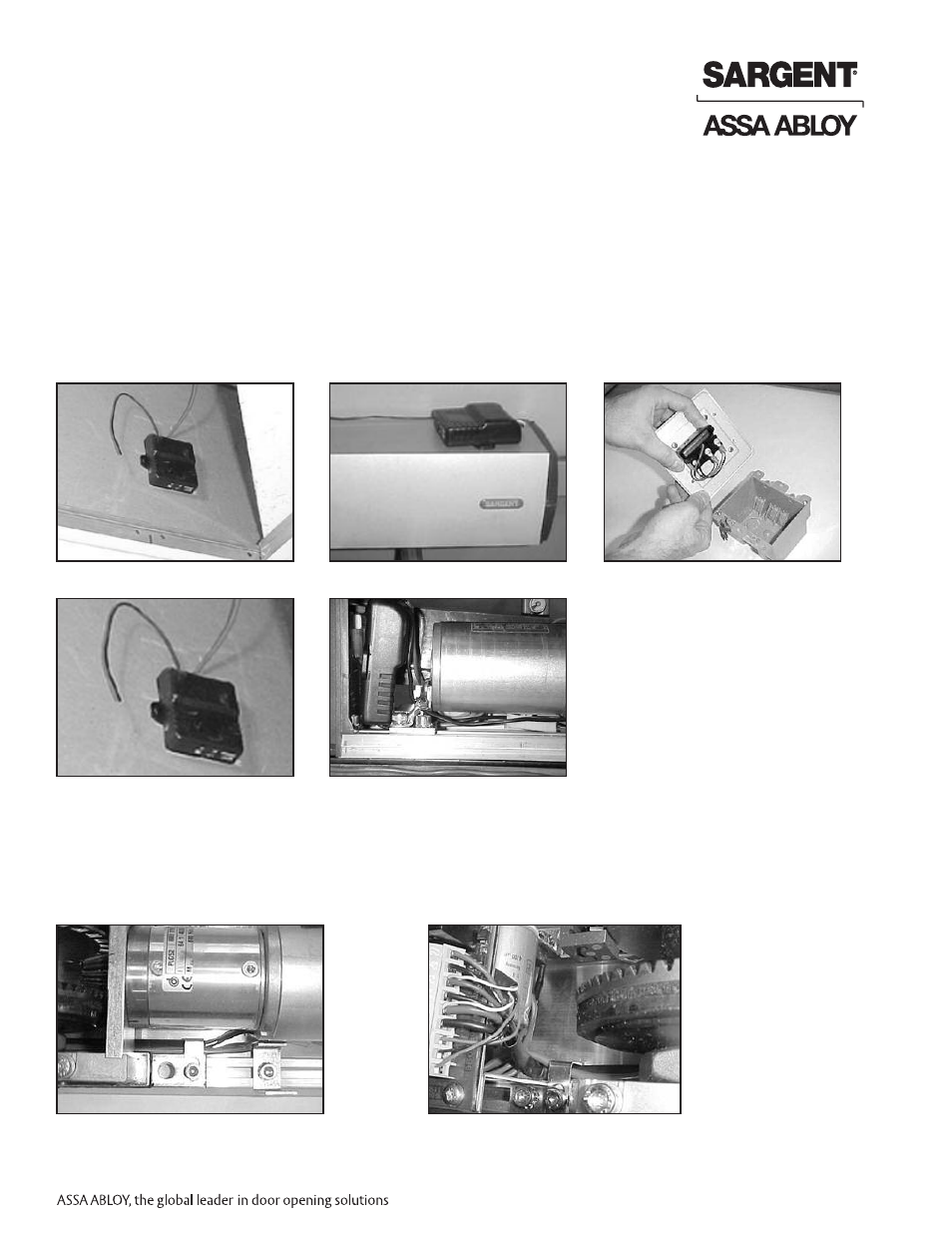

Select a suitable location for the Model 4315 Receiver.
Typical mounting locations are shown below.
Due to the variety of mounting conditions, the customer
must supply the appropriate mounting hardware for the
Model 4315 Receiver.
Model 4310/4313 Transmitter and
Model 4315 Receiver Instructions
Concealed above ceiling
Mounting on 2600 Operator Cover
Mount to wall surface
Concealed under the 2600 Operator Cover
Wiring:
Route the jacketed wire cable from the Model 4315 Receiver
to the signal termination block on the 2600 Door Operator.
Wiring must be done carefully to ensure that it is properly
held in-place and away from moving objects.
If the Model 4315 Receiver is to be concealed
underneath the 2600 Door Operator Cover, the wiring
should be routed as shown in the pictures below.
2. Continue routing the jacketed cable
below the main gear and through the
wire clamp next to the Main Control
PCB Bracket.
1. Route the jacketed cable through the
wire clamp beneath the motor.
A7446B
1. See learn mode prior to assembly
2. Connect to the common and
normally open terminals of the
push plate switch
3. Insert into a PLASTIC OUTLET BOX
Installation of 4313 Transmitter
