Quick Robotic toRch
SM-QRTORCH MAINTENANCE
SECTION 6:
MAINTENANCE
Contact tips and nozzles should be cleaned frequently. Spatter
buildup may cause bridging between nozzle and tip. This
could cause electrical shorting between the nozzle and work
piece as well as restricting gas flow.
Regularly inspect the conductor tube, torch and cable
assembly for abrasions, cuts and undue wear. Replace or
repair any parts as needed. The torch and conductor tube assemblies have o-rings for
seals. Lubrication of these o-rings should be done periodically
and periodical inspections should be made to ensure that the
o-rings do not degrade, allowing water and or shielding gas
leaks to occur. When removing the conductor tube from the
torch assembly, be sure the single o-ring located in the bottom
of the hole remains in place.
Each Use
Visual check of torch
Consumable parts
Weekly
Visually inspect the torch
body and consumables
Visually inspect the
cables and leads.
Replace as needed
3 Months
Clean
exterior
of power supply
6 Months
Replace all
broken parts
Visually check and
use a vacuum to carefully
clean the interior
Gas and
air lines

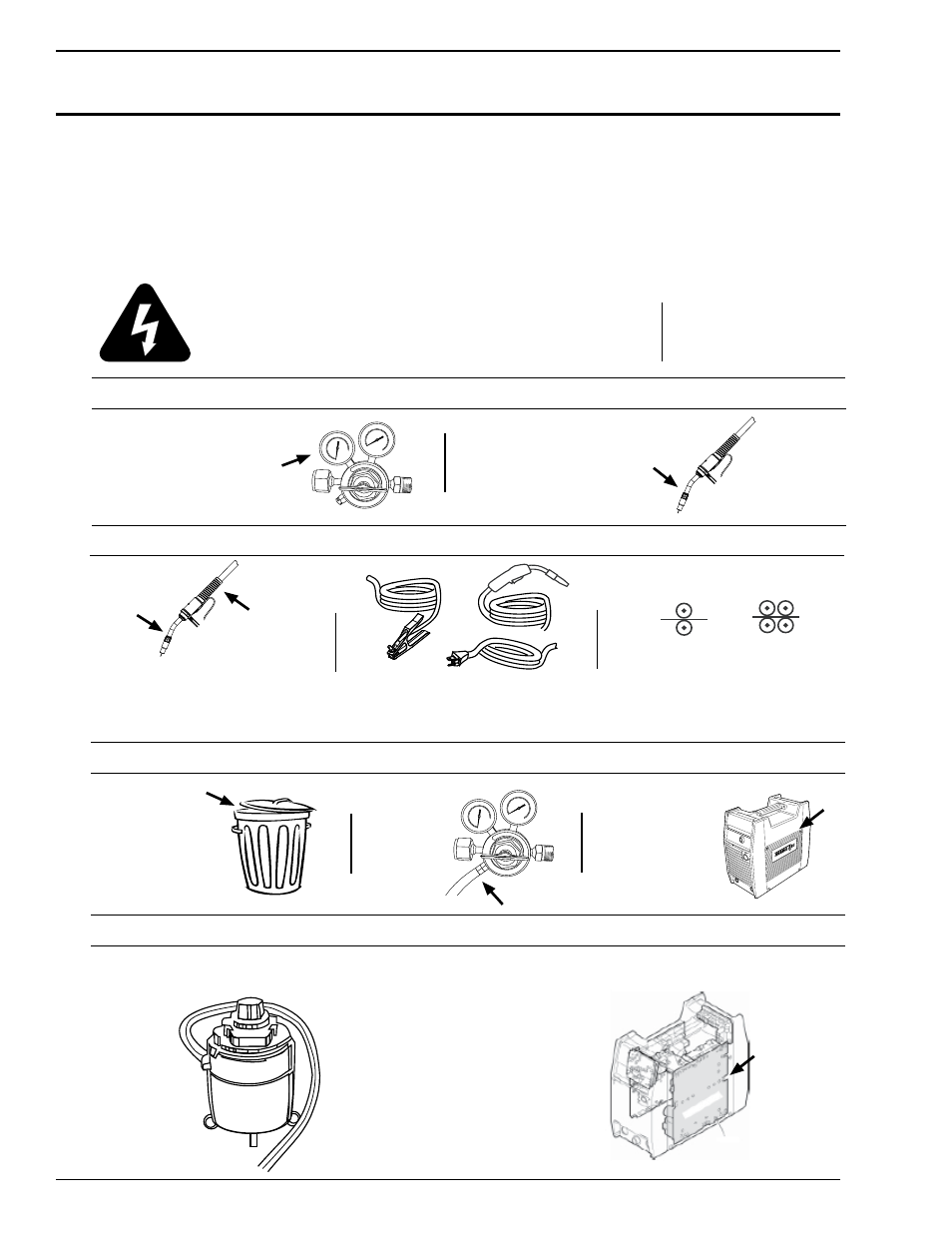

dwg-00032
Visually inspect the Wire
feed mechanisms
Warning!
Disconnect input power before maintaining.
Maintain more often
if used under severe
conditions.
Visual check of
regulator and pressure
