ULTRAFEED VA 4000S
Manual No. 0-5135 A-1 APPENDIX

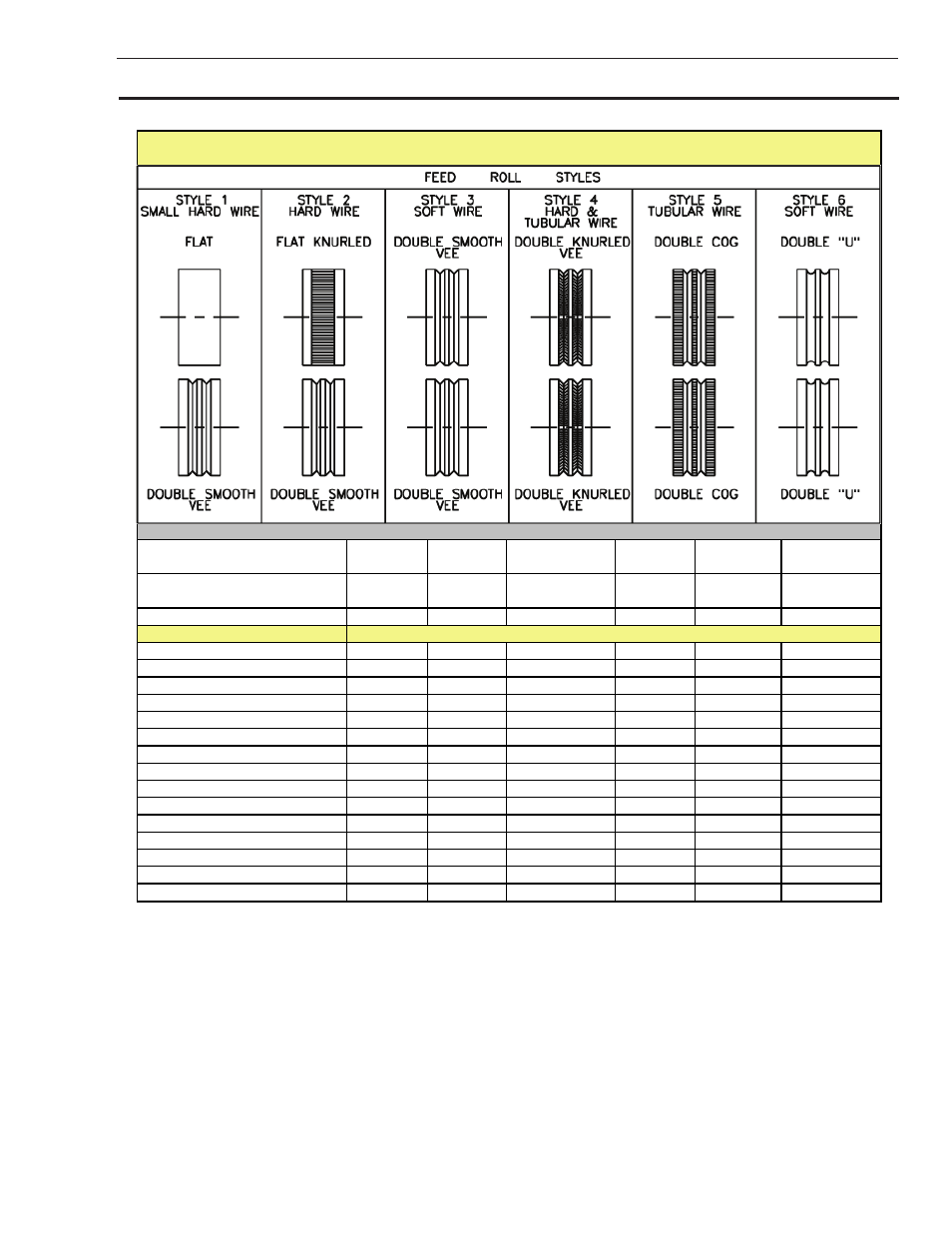

APPENDIX 1: FEED ROLL KITS
Style 1 Style 2 Style 3 Style 4 Style 5 Style 6
Top Flat Flat Knurled
Double Smooth
"V"
Double
Knurled "V" Double Cog Double "U"
Bottom
Double
Smooth "V"
Double
Smooth "V"
Double Smooth
"V"
Double
Knurled "V" Double Cog Double "U"
Wire Type Hard Hard Soft/Hard/Tubular Hard/Tubular Tubular Soft (Aluminum)
Wire Size
.024" / 0.6mm
375980-071 - - - - -
.030", .035" / 0.8, 0.9mm 375980-041 375980-043 375980-050 - - -
.030", .035", .045" / 0.8, 0.9, 1.2mm 375980-068* 375980-069 - - - -
.035" / 0.9mm 375980-080* - 375980-050 - - 375980-072
.035", .045" 3/64" / 0.9, 1.2, 1.2mm - - 375980-070 - - -
.045" / 1.2mm 375980-042* 375980-044 - 375980-083 375980-062 -
3/64 / 1.2mm - - 375980-051 - - 375980-073
.052" / 1.3mm 375980-081* - - - - -
.052", 1/16" / 1.3, 1.6mm - - 375980-052 375980-057 375980-083 -
1/16" / 1.6mm 375980-045* - - - - 375980-074
.068" / 1.7mm - - - 375980-057 - -
5/64" / 2.0mm 375980-046* - - 375980-058 375980-064 -
3/32" / 2.4mm - - - 375980-059 375980-065 -
7/64" / 2.8mm - - - 375980-060 375980-066 -
1/8" / 3.2mm - - - 375980-061 375980-067 -
Notes: 1) One Kit is supplied standard w ith each w ire feeder (tw o kits w ith dual).
2) Drive Roll Kits include: Drive Rolls; Input, Output & Center Guides
3) Narrow 30° "V"
DRIVE ROLL KITS (#375980-Series) 4 ROLL
