Arcmaster, 300 s, 05 description – Tweco 300 S Arcmaster User Manual

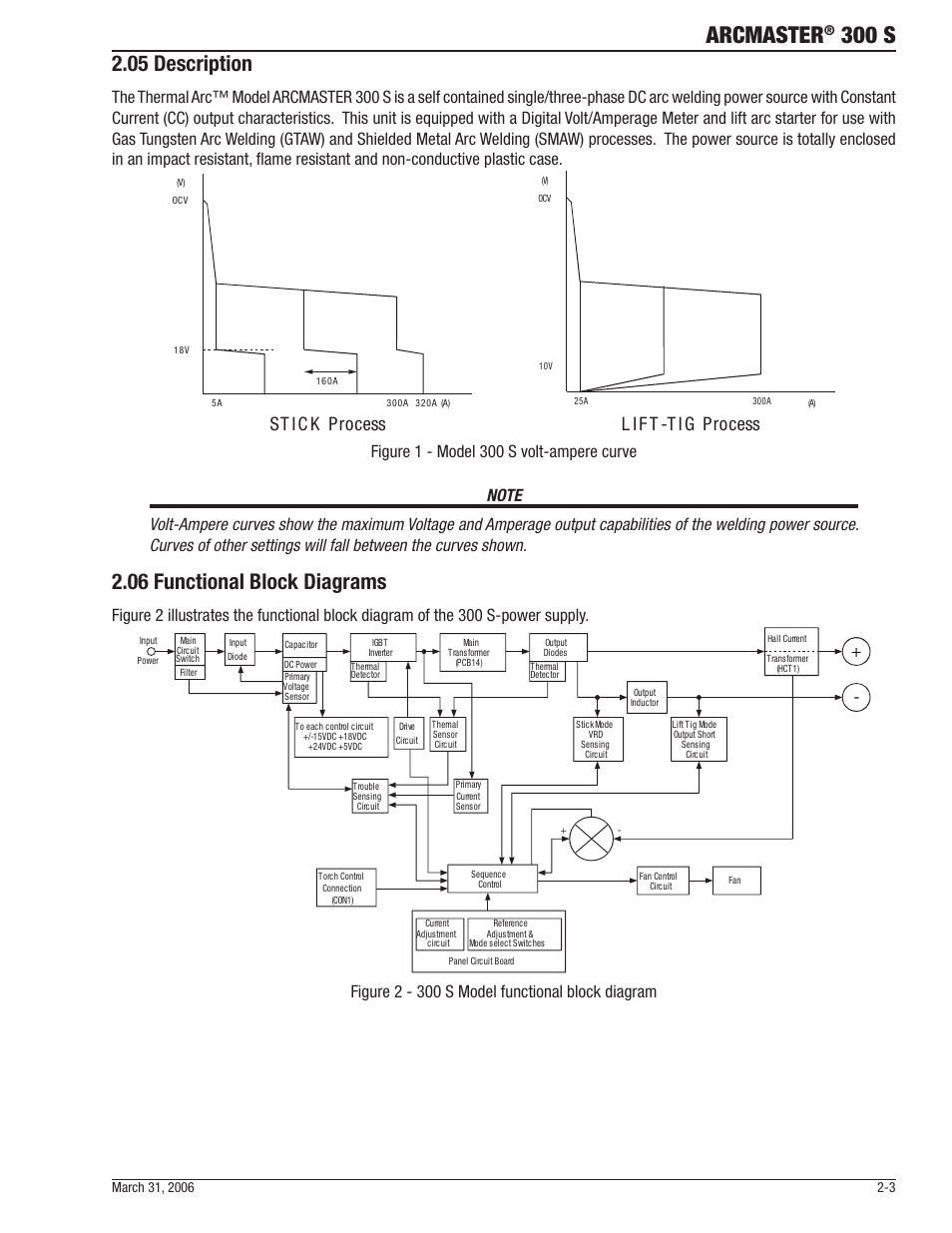

Page 17: 06 functional block diagrams, Figure 2 - 300 s model functional block diagram
