Manual No. 0-4817 Auto-Cut 300 3-12 INSTALLATION
3.08 Connect Work Cable
1. Pass the end of the work cable upward through the bracket at the bottom of the power supply rear panel, and up
through the opening in the connections cover support panel.

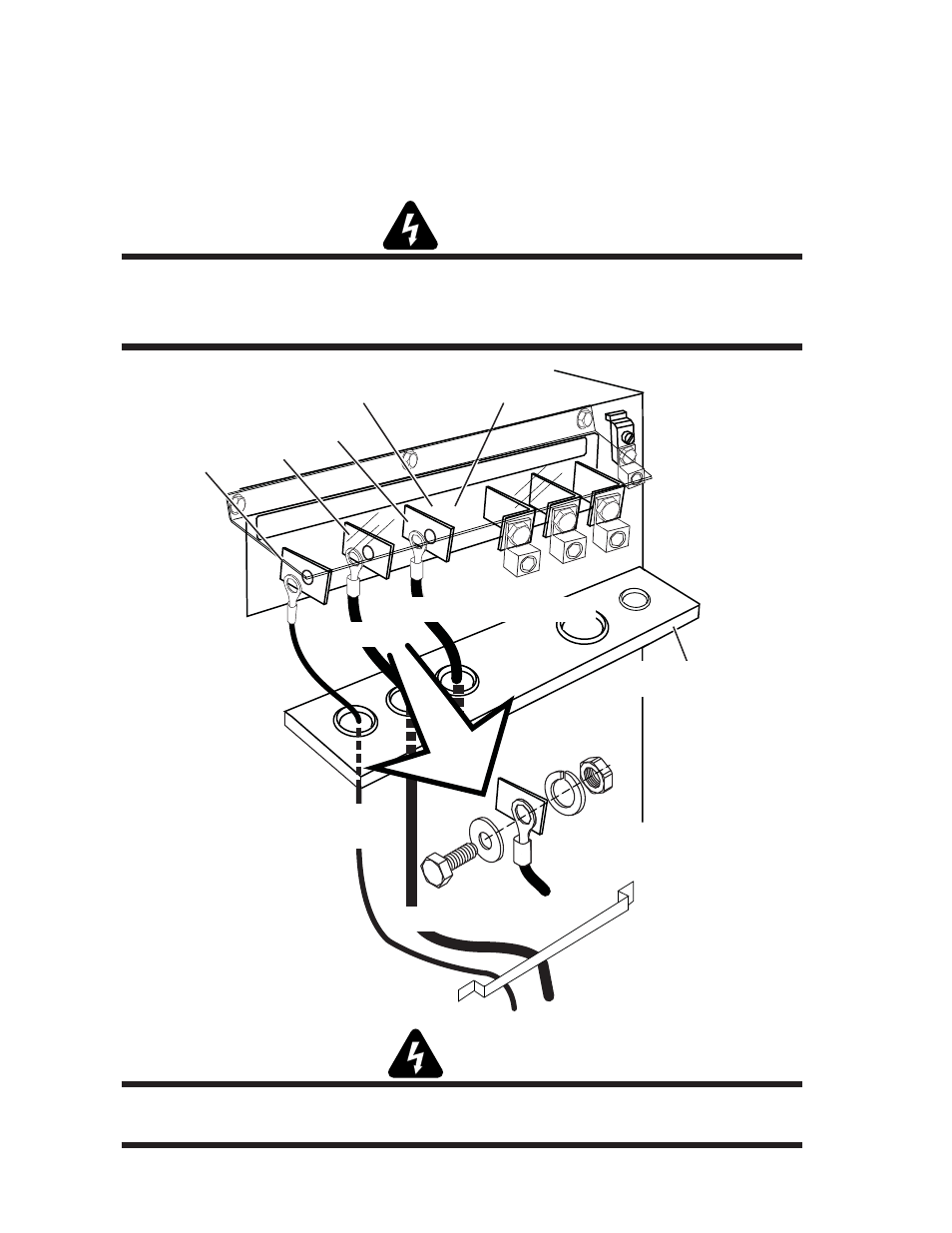

2. Refer to the illustration. Connect the lead as shown. Tighten securely. Do not overtighten.
WARNINGS
Ensure that lead attachment hardware is properly sized. Excess length may cause damage if hardware
contacts other parts of the system.
The clear connections cover must remain in place.
PILO
T
WORK
TORCH
Connection Panel
AC INPUT
L1 L2 L3
Work Lead
Torch Lead - To Remote Arc Starter
Work
Torch
Lead Connection Detail
Connections Cover
Support Panel
Art # A-07660_AB
Connections Cover
Pilot
To Cutting Table
Leads Bracket
Pilot Lead -
To Remote Arc Starter
WARNING
Dangerous high voltage is present when the power supply is connected to input power. Do not connect
input power or operate the power supply unless the connections cover is fastened in place.
