Manual No. 0-4817 Auto-Cut 300 3-6 INSTALLATION
Check / Adjust Input Voltage Configuration
1. The power supply includes a voltage configuration board which must be positioned to match the primary
input voltage. Remove the power supply left side panel and locate the voltage configuration board. The input
voltage configuration is shown at the top of the board.
2. If necessary, disconnect the jumper from the top-right corner of the board, remove the board and re-install with
the correct input voltage shown at the top of the board. Reconnect the jumper to the top-right corner of the
board.
3. Re-install the power supply side panel.

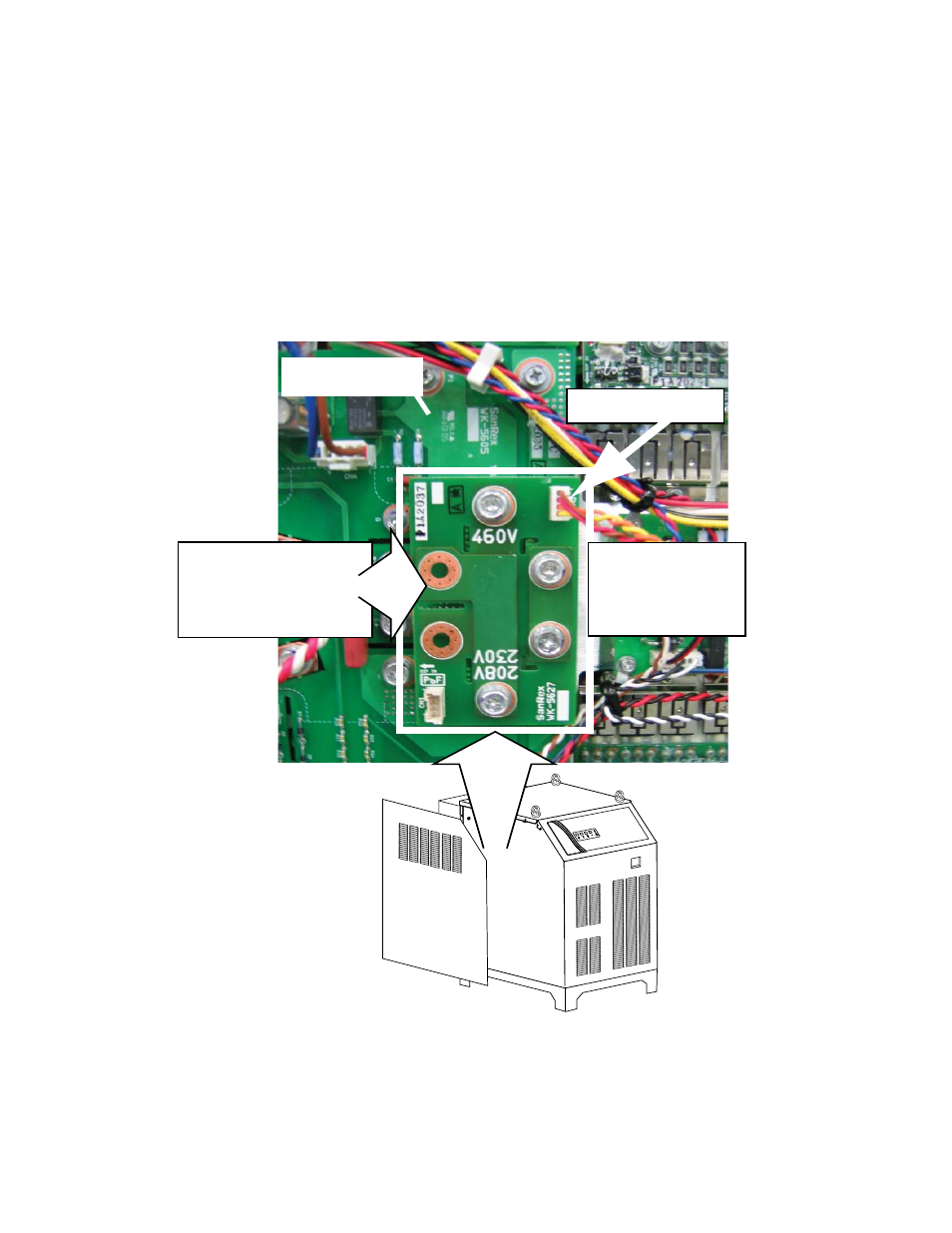

Art # A-04856_AB
1. Unplug connector
2. Remove bolts.
3. Invert board.
4. Re-install board.
5. Plug in connector.
208/230V / 460V
Input Voltage Board
(Shown in 460V Position)
Inverter Module
