Manual No. 0-4817 Auto-Cut 300 2-1 SPECIFICATIONS
SECTION 2: SPECIFICATIONS
2.01 General Description Of The System
A typical Auto-Cut ® 300 plasma cutting system includes:
• One Power Supply
• Arc Starter / Gas Control Module (Mounted on Power Supply)
• General Purpose Plasma Cutting Torch
• Set Of Connecting Leads
• Torch Spare Parts Kit
2.02 Plasma Power Supply
The power supply provides the necessary current for cutting operations, and monitors system performance. The
power supply also cools and circulates the liquid coolant for the torch and leads.
2.03 Gas Control Module / Arc Starter
This module mounts to the top of the power supply. This module enables the operator to select gas, set pressures
and flows and set cutting current.
2.04 Plasma Cutting Torch
The torch delivers the controlled current to the work through the main arc, causing the metal to be cut.

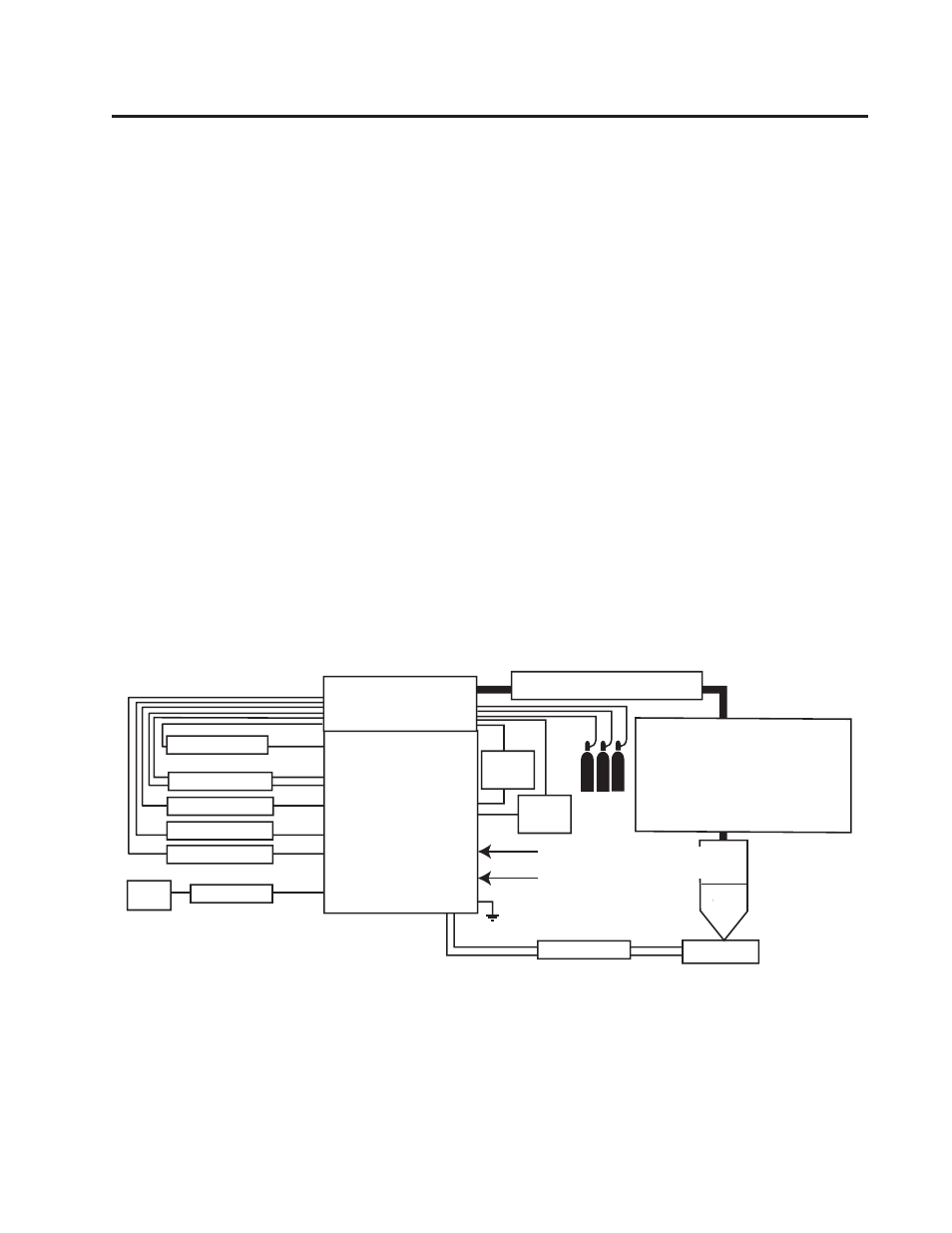

2.05 System Component Layout
Primary power
Work
Art # A-07232
Torch T T Torch
Work Cables
Auto-Cut 300
Power Supply
Arc Starter /
Gas Control Module
(GCM-1000)
Pilot Return
Negative
Coolant Supply
Coolant Return
Control Cable
CNC CNC Cable
Positioning
Tube
Torch Lead Set, Shielded
- Coolant Supply w/ Negative
- Coolant Return
- Pilot Return
- Plasma Gas
- Shield Gas
Control
Cable
Ground
Cable
Maximum Length 25’ / 7.6 m
