TORCH MAINTENANCE 7-3 Manual 0-4817 Auto-Cut 300
7.04 Torch Consumables Installation

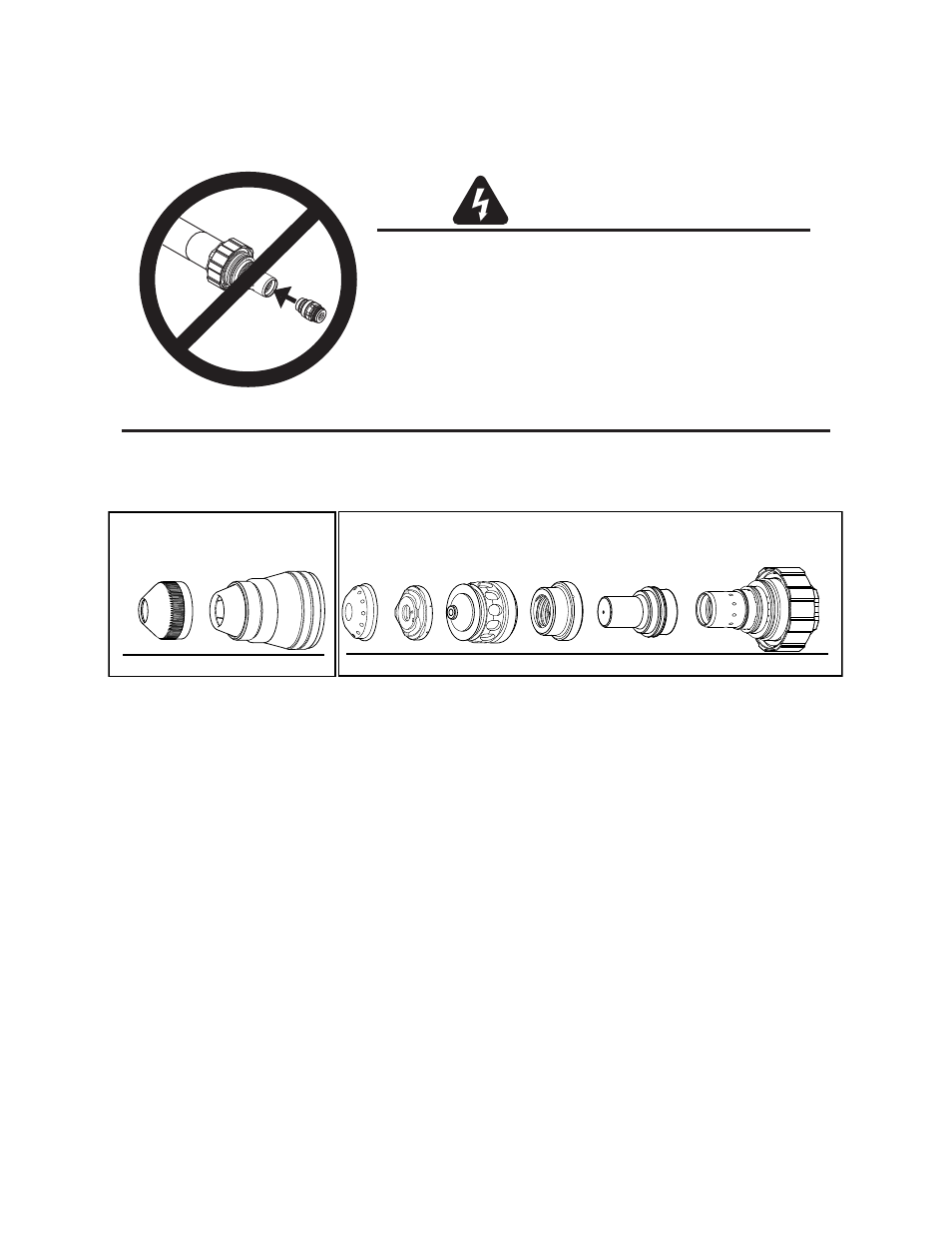

1. Install the consumables as follows:
Art # A-03887
W ARNINGS
Do not install consumables into the Cartridge
while the Cartridge is attached to the Torch Head.
Keep foreign materials out of the consumables and Cartridge.
Handle all parts carefully to avoid damage,
which may affect torch performance.
NOTE
Shield
Retainer
Shield Cup
Shield Cap Shield Gas
Distr
ib
utor
Tip Plasma Gas
Distr
ib
utor
Electrode
Car
tridge
Art # A-07262
Assemble First Assemble Second
