Manual 0-2477 17 INSTALLATION PROCEDURES
NOTE
Refer to the Operating Manual supplied with the
Power Supply for proper connection of the Gas
Control Cable to the Power Supply
A-01126
Gas Control
Output Connector
J53
Gas Control
Interface Cable

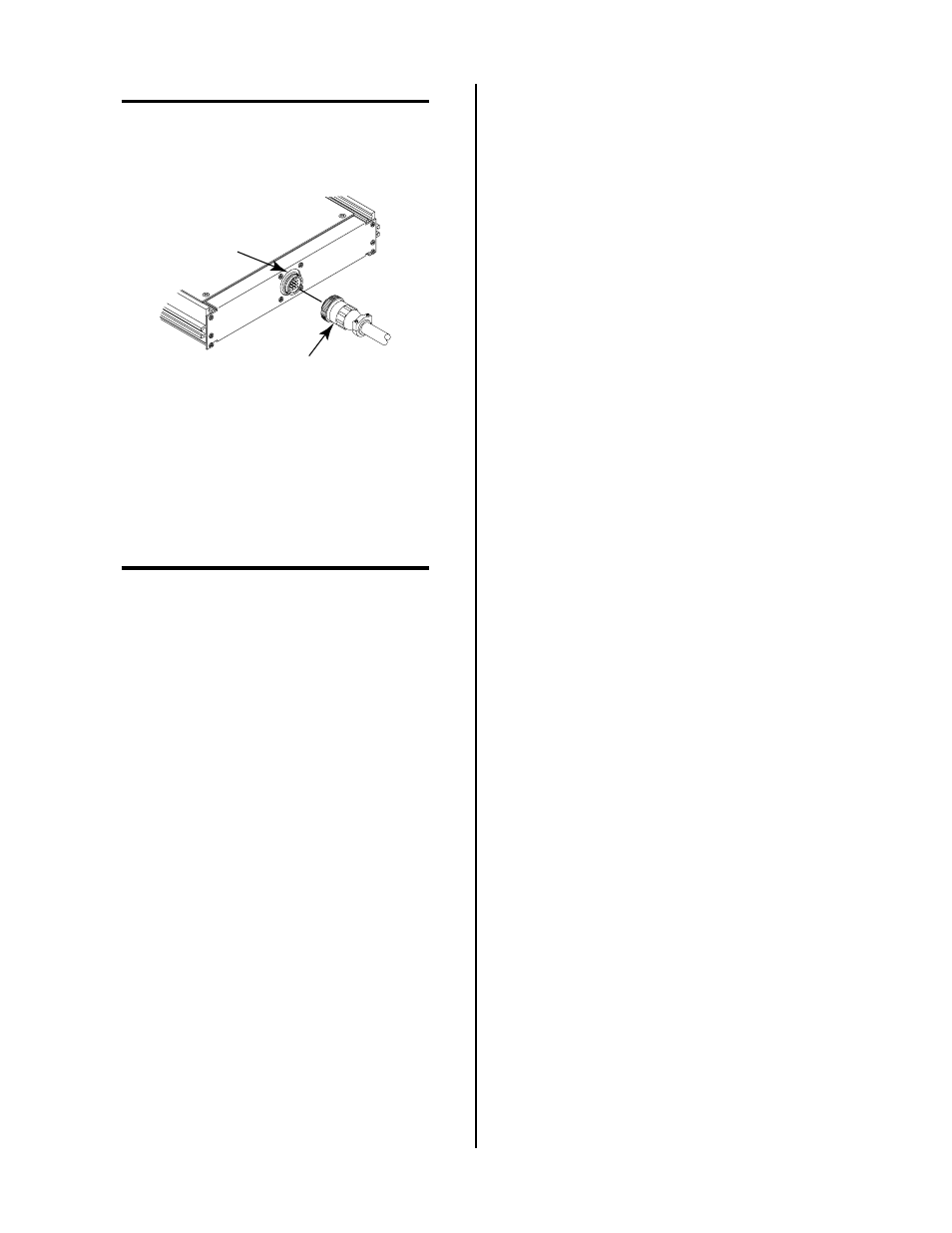

Figure 3-16 Cable Connection
3.09 Gas Supply Connections
The Plasma and Secondary supply gases connect to the
fitting on the Rear Panel of the Power Supply.
NOTE
Refer to the Operating Manual supplied with the
Power Supply for making proper gas supply con-
nections for the application.
