2.04 Power Supply Specifications
CutMaster 12mm Power Supply Specifications
Input Power
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
† NOTE: Some CutMaster 12mm models will only operate on 380-400V. Please check your machine
before attempting to run on any of the other voltages that are listed above.
Input Power Cable
Power Supply includes input cable.
Cable for 400V 3 Phase.
Output Current 20 - 40 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster 12mm Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
IEC Rating
All Units
Duty Cycle 40% 60% 100%
Ratings
Non CE CE Non CE CE Non CE CE
Current 40A 35A 40A 25A 25A
DC Voltage 96 96 94 96 90 90
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low
or the output voltage (DC) is higher than shown in this chart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications include
calculating an output voltage based upon power supply rated current. To facilitate comparison between power sup-
plies, all manufacturers use this output voltage to determine duty cycle.

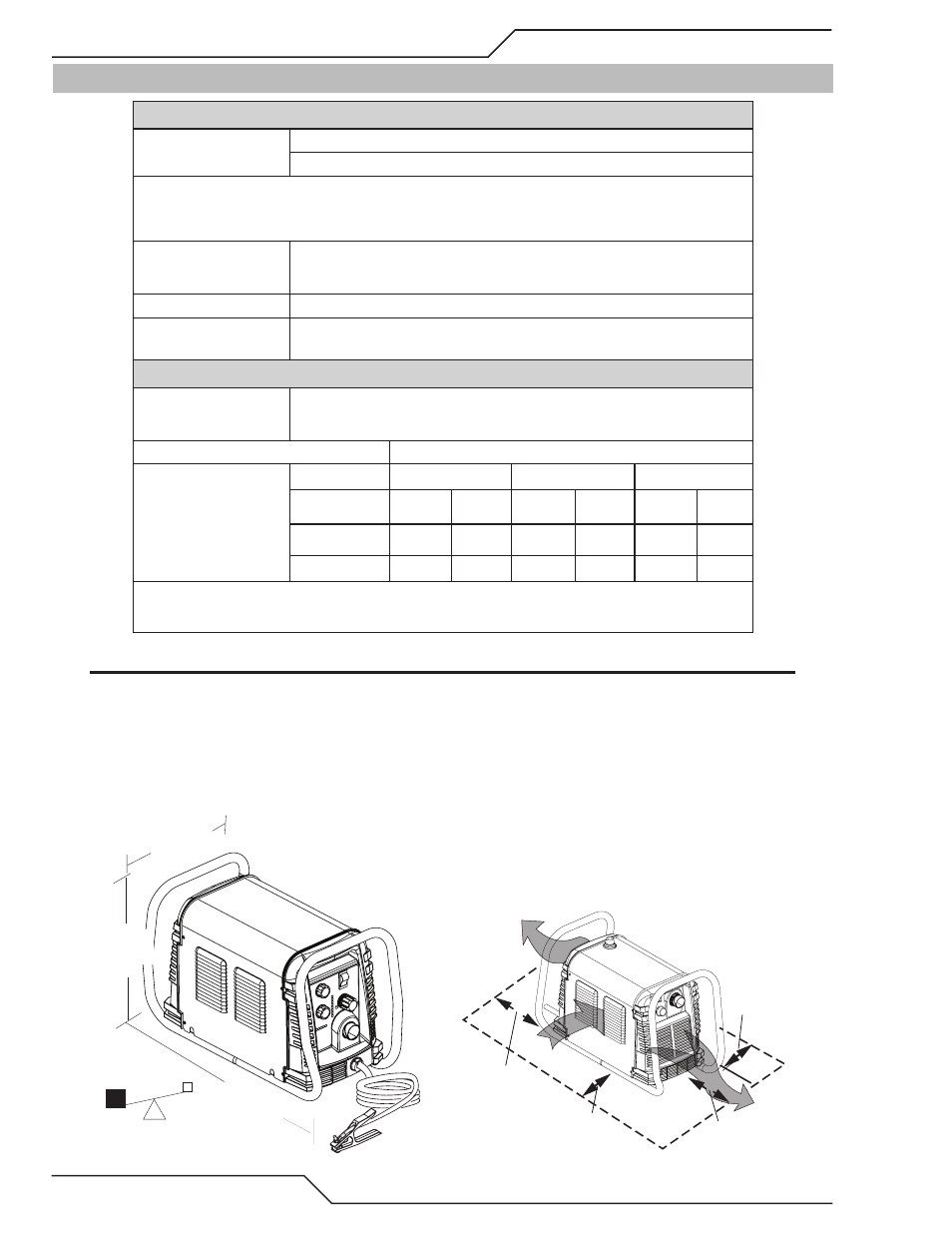

Power Supply Dimensions & Weight Ventilation Clearance Requirements
22.5"
0.57 m
43 lb / 19.5 kg
10.75"
273 mm
16.375"
416 mm
Art # A-07941
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
