2 3
GB GB
Contents / Symbols Parts List

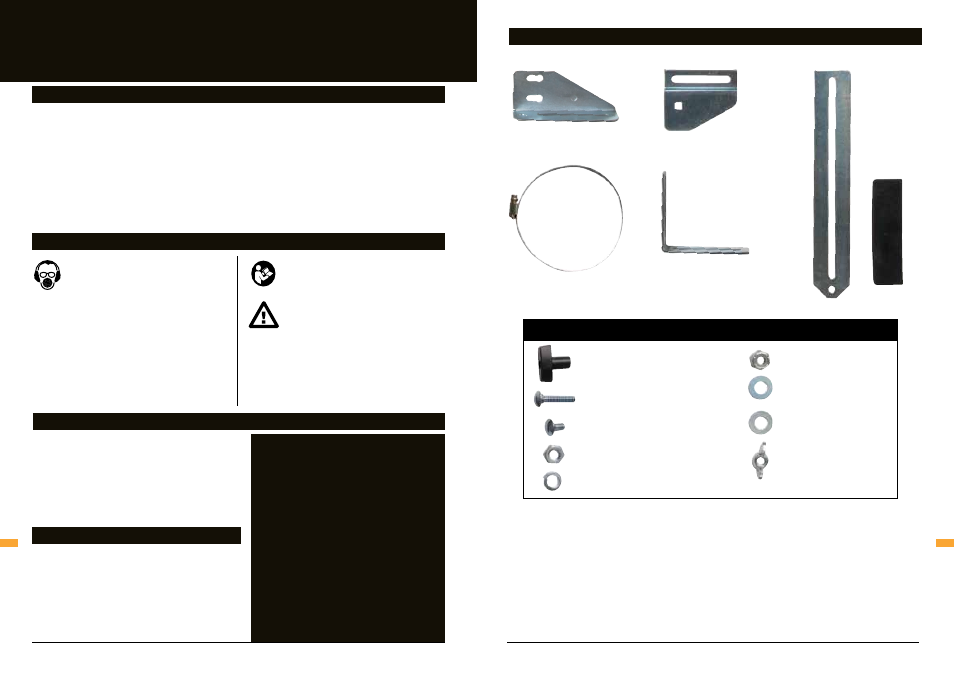

PARTS LIST
A. Base bracket (1) B. Pivot Mounting Bracket (1) C. Slotted Strap (1)
E. Saw Motor Bracket (1) F. Rubber Cushion
Strip (1)
D. Band Clamps (2)
CONTENTS
Thank you for purchasing this Triton tool. These instructions contain information necessary
for safe and effective operation of this product.
Please read this manual to make sure you get the full benefit of this unique Triton product.
Keep this manual close to hand and ensure all users of this tool have read and fully understand the instructions.
Symbols 2
Guarantee 2
Parts List 3
Safety 4
Assembly
6
Operating Instructions 8
Troubleshooting 8
SYMBOLS
Always wear ear, eye and respiratory
protection
WARNING. To reduce the
risk of injury, user must read instruction
manual
Instruction warning
FASTENER BAG
G. T-Knob (1)
H. ¼” x ¾” Coach Bolts (2)
I. ¼” x ½” Coach Bolts (3)
J. ¼” Nuts (4)
K. ¼” Spring Washers (4)
L. ¼” Nyloc Nut (1)
M. ¾” O.D. x 5/16” I.D. Flat
Washer (1)
N. ¾” O.D. x ¼” I.D. Flat
Washer (1)
O. ¼” Wing Nut (1)
NOTES
• This saw stabilising bracket has been specifically designed for saws that pivot at the front
for blade height changes (for example, Makita, Hitachi, Black & Decker and Skil saws). The
bracket can be fitted to vertical lift saws, but benefits will be limited to increased stability
when the saw is tilted for bevel cutting, or raised for rebates etc. With vertical lift saws,
resetting of the bracket is required on each occasion the blade height is altered or the saw
tilted.
• Begin with your Workcentre in the crosscut mode, with the slide chassis in the bearing
channels. Set your saw at full cutting depth, with the saw’s quadrant at 0° (normal 90°
crosscutting position).
To register your guarantee visit our web site at
www.tritontools.com* and enter your details.
Your details will be included on our mailing list
(unless indicated otherwise) for information on
future releases. Details provided will not be made
available to any third party.
PURCHASE RECORD
Date of Purchase: ___ / ___ / ____
Model: ABA020
Serial Number: __________________
Retain your receipt as proof of purchase
Hand-Held Operation
Triton Precision Power Tools guarantees
to the purchaser of this product that if
any part proves to be defective due to
faulty materials or workmanship within 12
MONTHS from the date of original purchase,
Triton will repair, or at its discretion replace,
the faulty part free of charge.
This guarantee does not apply to
commercial use nor does it extend to
normal wear and tear or damage as a result
of accident, abuse or misuse.
* Register online within 30 days.
Terms & conditions apply.
This does not affect your statutory rights
GUARANTEE
