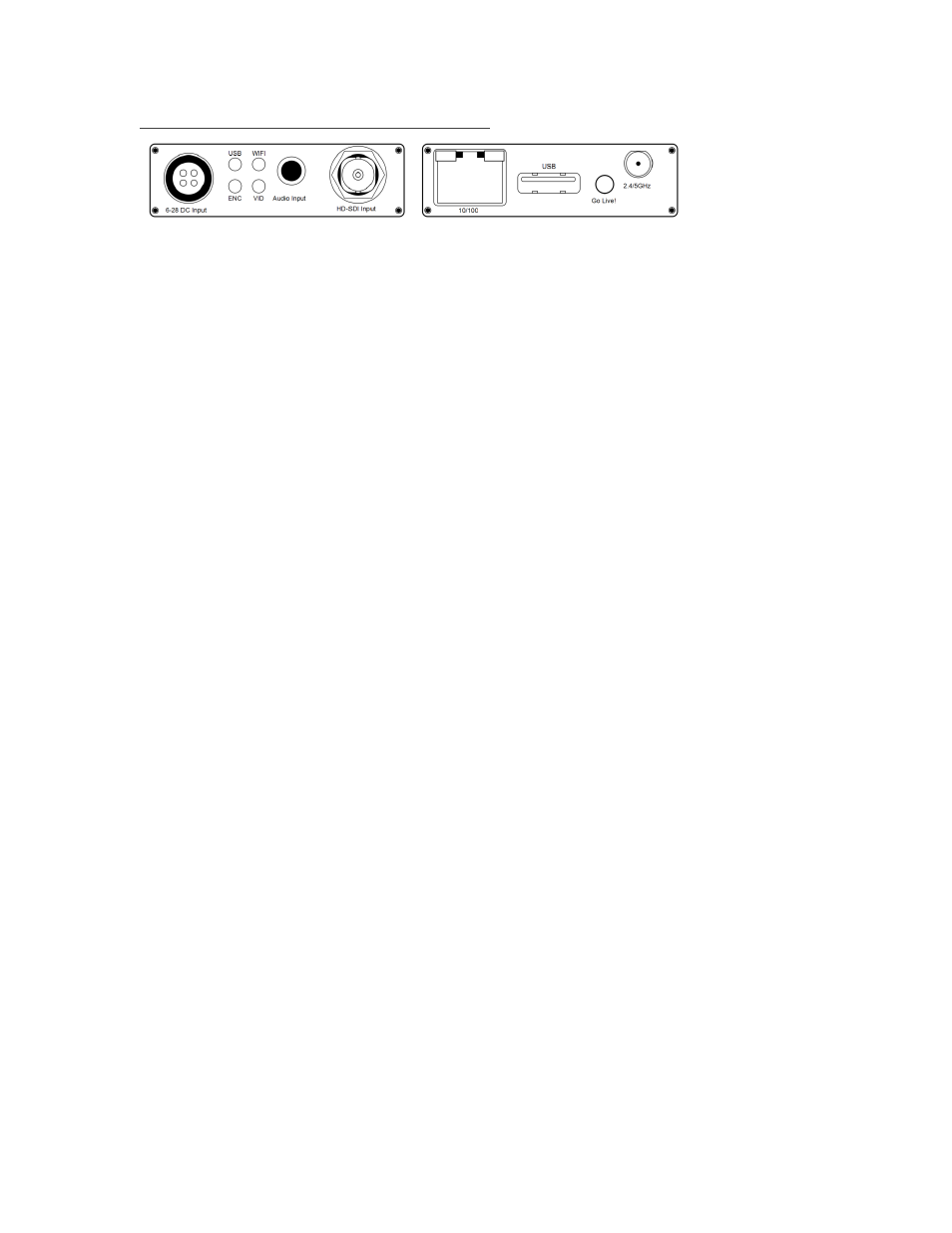

3. Description of Button and Standard LED Operation
1. LED functions
1.1. USB/PWR (model dependent):
1.1.1. PWR – Green is on
1.1.2. USB – USB modem status. Off, nothing connected. Green, USB modem connected.
Orange, USB modem connection in progress. Red, USB modem connection failed
1.2. WiFi
1.2.1. Cube 100/200 – USB modem status (see above).
1.2.2. Cube 120/150, 220/250, 320/350, 420/450 – Wireless status. Off, wireless disabled.
Red, wireless disconnected. Green, wireless associated/connected.
1.3. ENC/DEC – Green, encoding/decoding. Orange, no video detected. Red, codec is restarting
or recording is in progress.
1.4. VID – Off, no video sync. Green, video sync. Orange, resolution mismatch. Red, resolution
not supported.
2. Button operation – Hold down the reset/‟Go Live‟ button for the indicated times to use the
following functions:
2.1. 1-3 seconds (Livestream/RTSP Announce/RTMP mode only): Broadcast start or stop. ENC
LED blinks green rapidly, and then indicates broadcast status. See Stream Modes (page
15) for more information.
2.2. 1-4 seconds (Other stream modes), 7-9 seconds (Livestream, etc.): Pairing – ENC/DEC and
WiFi LEDs blink green rapidly. See the Decoder section, page 14 for more information.
2.3. 10-15 seconds: Network reset – WiFi LED cycles red, amber, green. Cube resets all network
settings to their defaults and reboots.
2.4. 20+ seconds: Full factory reset – ENC and WiFi LEDs cycle red, amber, green. Cube
configuration is restored to factory defaults and the unit reboots.
2.5. NOTE: when your stream type is set to „Live Internet Streaming‟ or „RTSP Announce,‟ the
button operation changes as follows:
2.5.1. 1-3 seconds: Broadcast start or stop. ENC LED blinks green rapidly, and then indicates
broadcast status. See Stream Modes (page 15) for more information.
2.5.2. 7-9 seconds: Pairing – see above.
