1. Audio/Video Input/Output:
1.1. Video intput: SD/HD-SDI (Cube 1xx Series), HDMI (Cube 2xx Series), PAL/NTSC
Composite (Cube 5xx Series)
1.2. Video output: SD/HD-SDI (Cube 3xx Series), HDMI (Cube 4xx Series)
1.3. Audio in
put: 2Ch. Embedded HDMI/SDI audio, Line in via 1/8” stereo TRS, Mic in via 1/8”
stereo jack* (Cube 150 and 250 models only)
1.4.
Audio output: 2Ch. Embedded HDMI/SDI audio, Line out via 1/8” stereo TRS
2. Power:

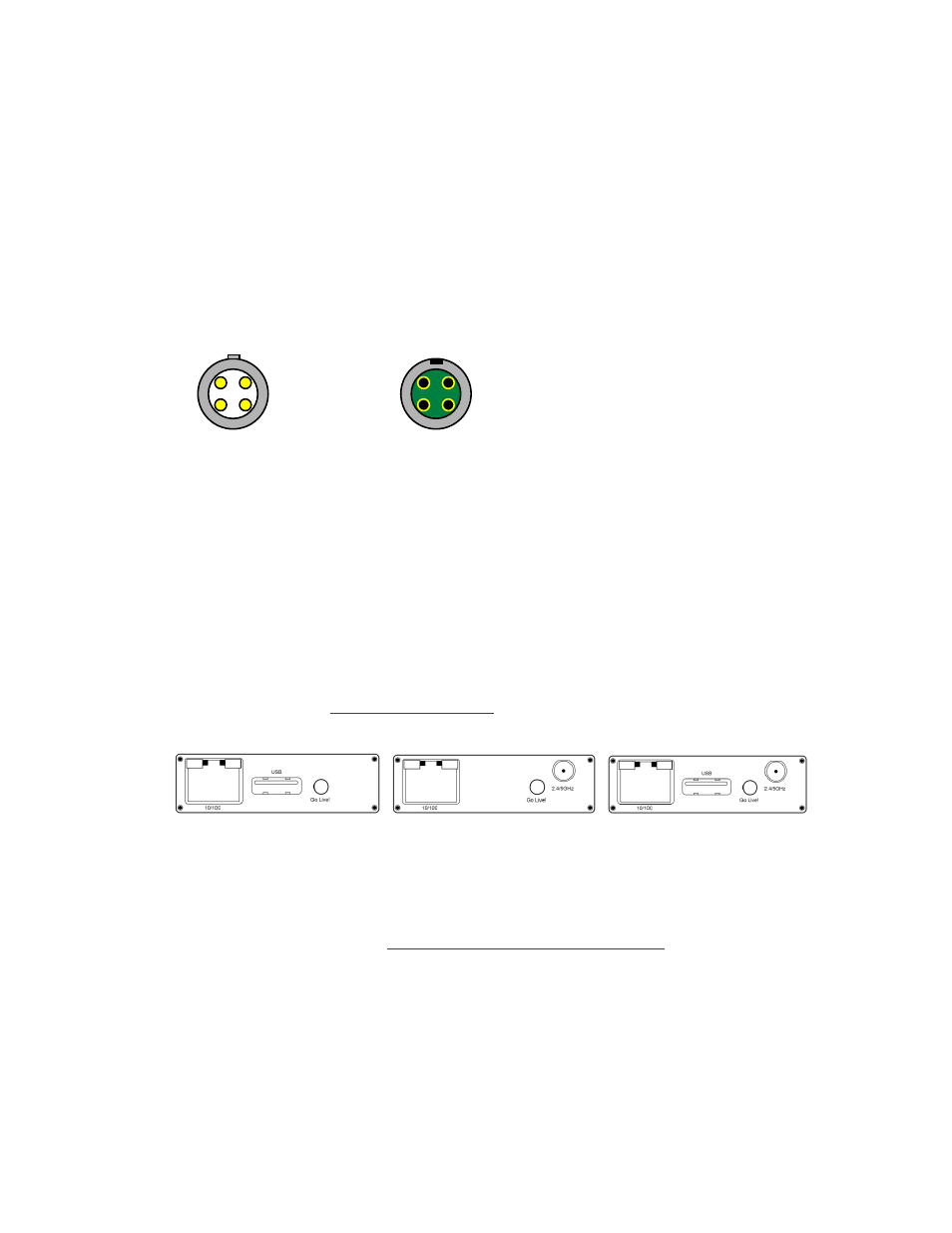

2.1. LEMO pin configuration:
1. DC +
2. No Connect
3. No Connect
4. DC -
2.2. Cube accepts 6-28 volts DC input via a 4 pin LEMO connector.
2.3. An AC adapter is included with Cube. Teradek also offers a number of power accessory
cables and battery plates to integrate with your existing power equipment. Accessories are
available online aor through your local Teradek dealer.
3. Ethernet, USB, antenna
Left to right: Cube x00, x20, x50 back connections
3.1. 10/100 Ethernet port
– Use this for connecting to networks via Ethernet.
3.2. USB port (if applicable)
– Used for connecting to Wireless broadband USB modem.
3.3. Go Live! Button
– Used for various tasks including broadcast start and stop, pairing, and
factory resets. Please See Description of Button and Standard LED (page 7) for more
information.
3.4. Antenna (if applicable)
– RP-SMA connector used to attach antenna (included). NOTE: this
is labeled 2.4/5GHz on both single and dual-band equipped Cubes.
Male 0B.304
LEMO on Cable
Female 0B.304
LEMO in Cube
4.
3.
1.
2.
1.
2.
4.
3.
