Input Setup and Control
The 664 has six, full-featured audio inputs on XLR-3F connectors and six direct outputs on TA3 con-
nectors. The direct outputs can optionally be used as line inputs ( see 12 Channel Mode ). Each analog
input has a wide gain range to accommodate nearly all signal types, from microphones to line-level
sources. Inputs can be used as either balanced or unbalanced connections. To unbalance, tie pin-3 to
pin-1 of the XLR connector of the cable. There is no change in gain between unbalanced and bal-
anced connections into the 664.

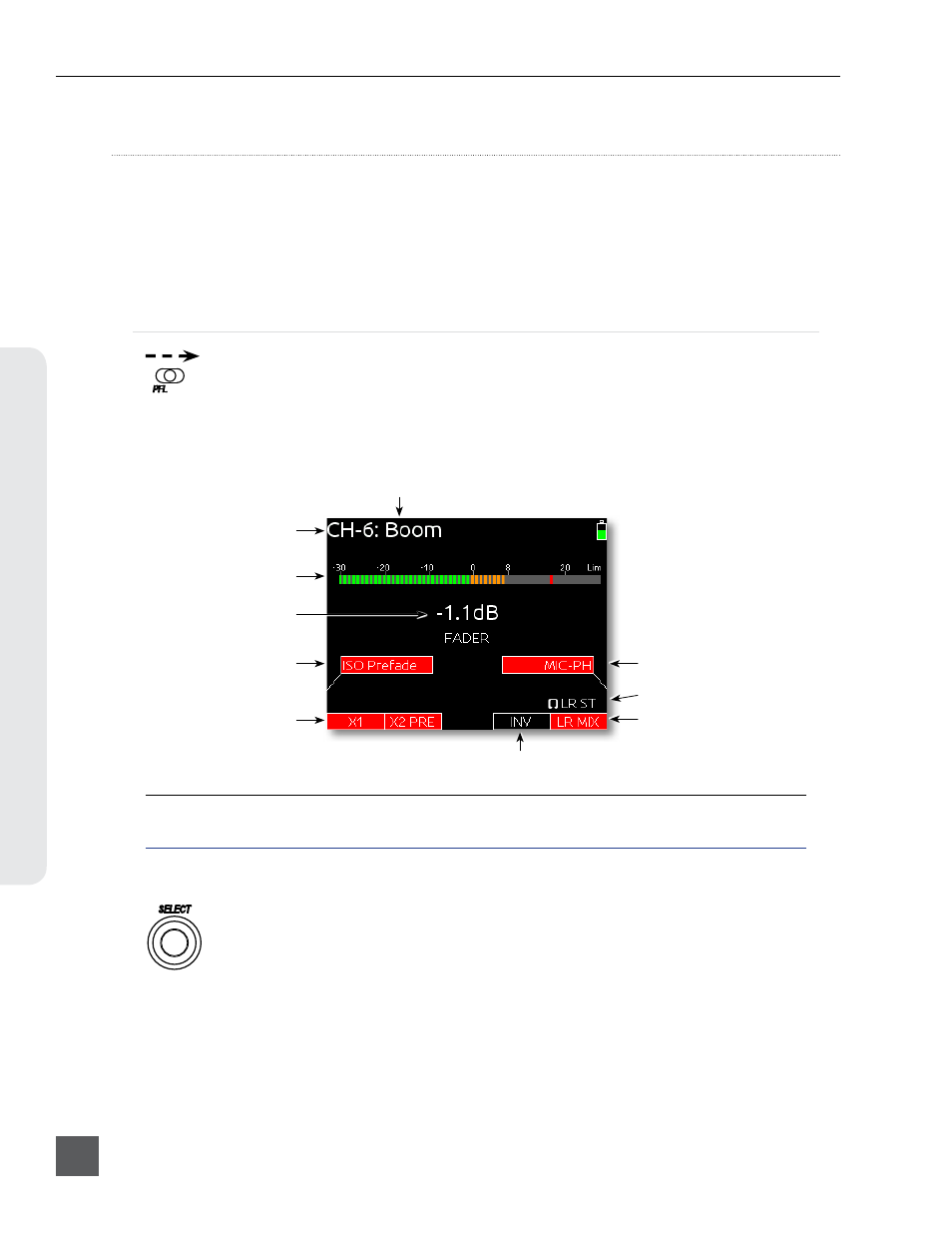

Input Settings Screen
Each input’s settings are accessed through its Input Settings Screen. To access the Input Settings
screen for an input, slide the Input Selector Switch to the right. The LCD will display information
pertaining to the selected input and provide access to.
2) Input Meter
Input/Track Number
input/Track Name
6) Input Polarity
1) ISO Track Status
4) Aux Bus Assignment
3) Input Selection
Headphone Source / Level
5) LR Bus Assignment
Current Fader Gain
The method for accessing the Input Settings screen is altered when in 12 Channel Mode. See 12 Channel
Mode.
1) ISO Track Status
Displays the status of the Input’s dedicated Iso Track on the recorder. Each input is permanently
routed to its Iso track. To select whether an input is routed pre- or post-fade, press the Select Encod-
er, turn it to make a selection, and press it again to confirm the selection.
The background color of the Iso Track Status box indicates the status of the Input’s Iso Track. A blue
background indicates that the Iso Track is not active and will not be recorded. A red background
indicates the Iso Track is armed for recording.
