Screen Overview
Main Screen

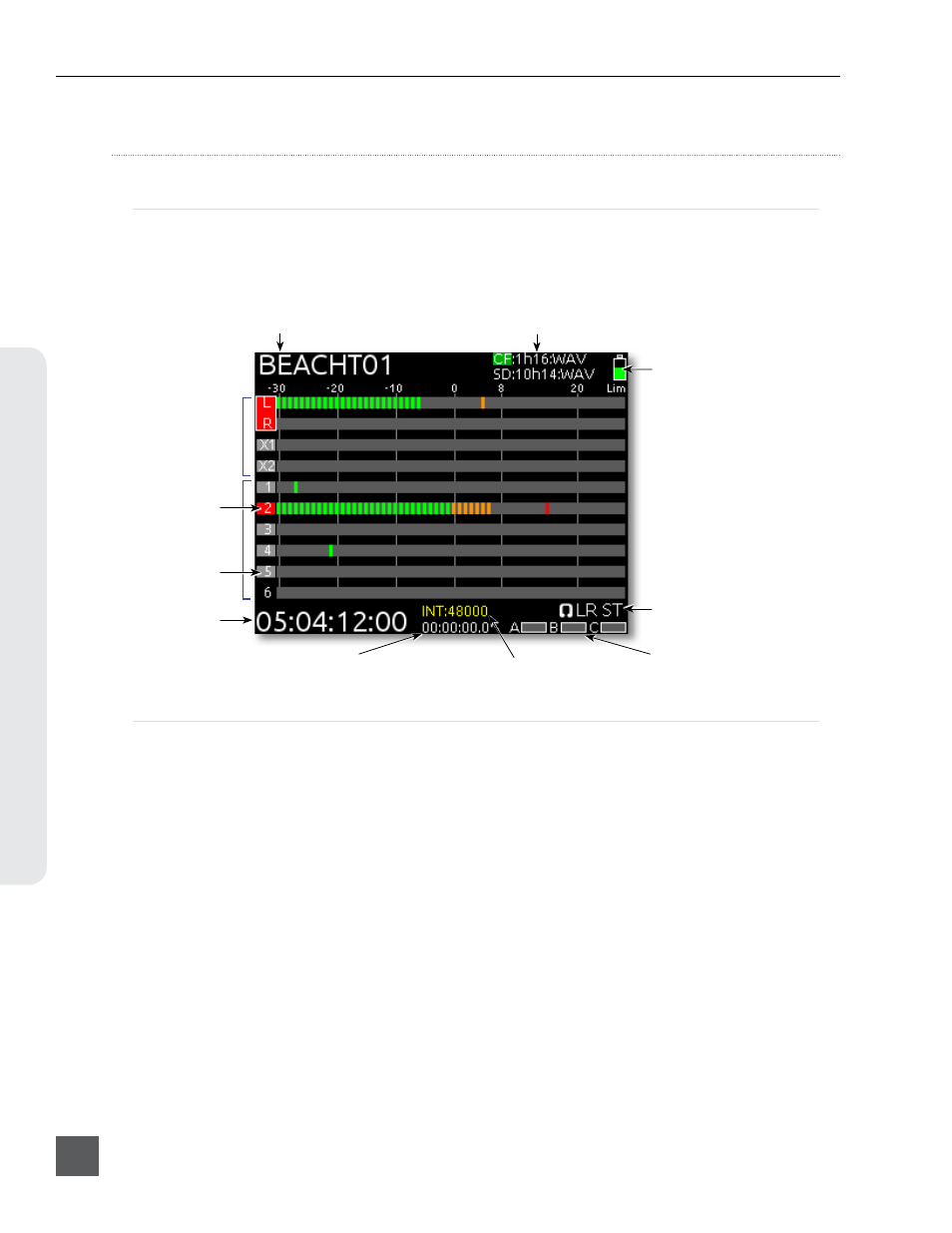

The Main Screen displays important information at-a-glance. The Main Screen can be accessed
quickly from any other screen by pressing the Meters button. Display of the sample rate information
and time code frame rate information can be “swapped” by holding the Meters button and Sliding
the RTN Switch to the left.
Input tracks
Bus tracks
Armed track
Current take Media information
Power source level
Sample rate information RTN levels
Monitor (Headphone) information
SMPTE Timecode
Absolute recording time
Unarmed track
Meter Views
Various combinations of input, track, and return meters are available for viewing on the Main
Screen. These various signal sources are grouped into preset Meter Views. Pressing the Meters but-
ton on the Main Screen will cycle through up to 3 different Meter Views. Access Setup Menu option
SYSTEM > Meter Views to define the selectable Meter Views.
In the Meter View titles, RTNs refers to 2-channel meters for RTN A, RTN B, and RTN C. (wide)
indicates that the preceding source will be displayed with a taller, more visible meter. The
LR(wide),X1X2,RTNs Meter View demonstrates this:
664 User Guide and Technical Information
