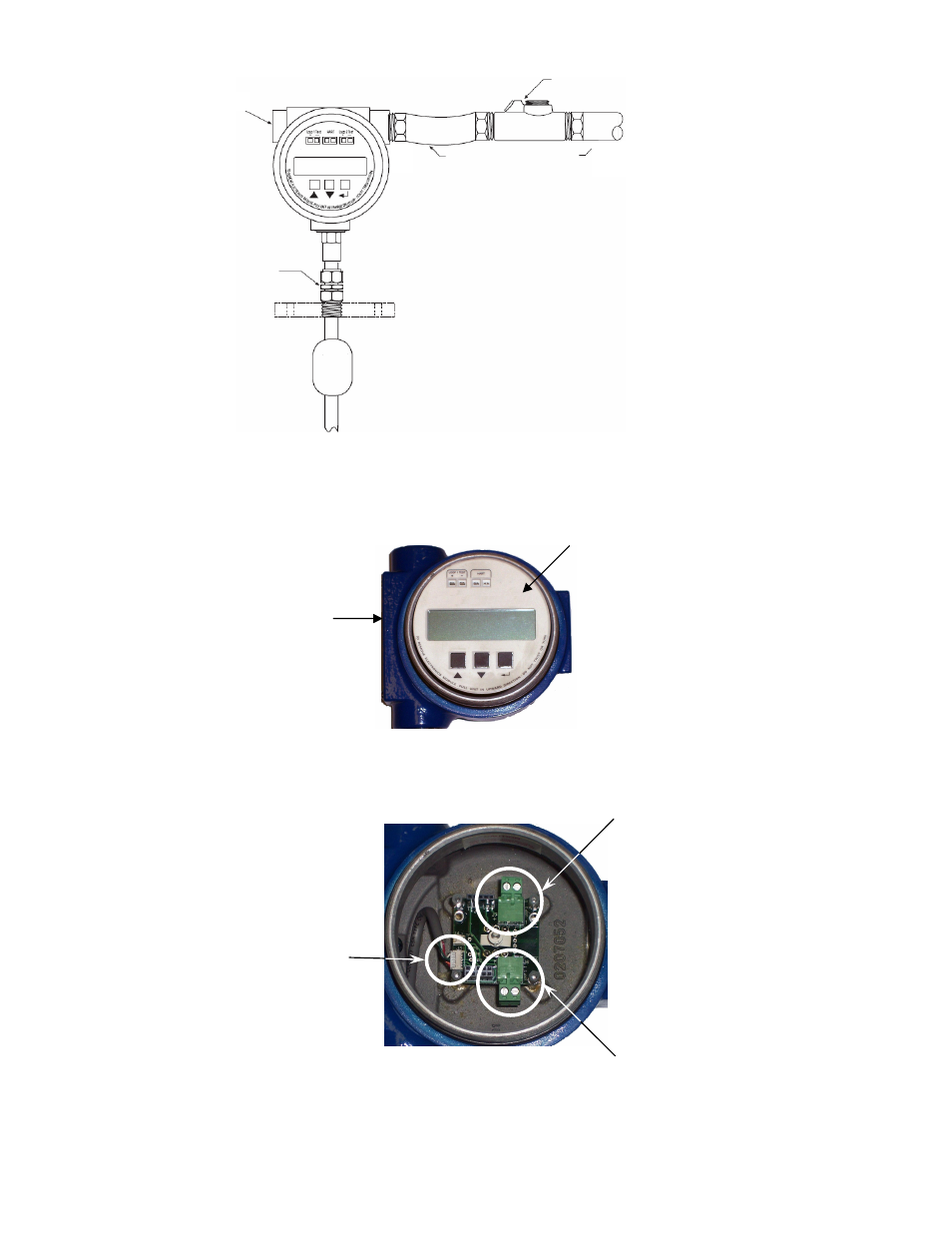

Conduit Installation
Wiring Connections
Before starting installation procedures in hazardous areas, insure that all power sources have been turned off and locked
out. “Live” electrical circuits can ignite flammable gasses and dusts. Do not apply more than 36Vdc to the transmitter, as
this may damage the instrument.
1. Remove the cover from the instrument enclosure.
2. Remove the electronics assembly (puck) from the instrument enclosure. Hold the puck firmly around the diameter
and pull it out of the enclosure. No tools are necessary.
3. Unplug the connector from Loop #1. Using the above photo as a guide, pull the connector straight down. DO
NOT pull the connector toward you. This is a (2) piece connector (plug & socket); the socket will remain on the
board.
NPT Fitting
DO NOT Overtighten
Explosion-proof Conduit Seal Fitting
Conduit from
Control Room Conduit
(Flex / Rigid)
¾” NPT Access
Instrument
Enclosure
Electronics Assembly
(Puck)
Loop #2
Loop #1
Sensor
Connection
