Kenco Engineering KMD Transmitter - Manual (Page 10)

Page 10
Operation Modes
Run Mode --
This is the primary mode of operation. It performs measurements, displays data, and responds to HART
commands.
Program -- To enter this mode press any of the three keys (UP, DOWN, or ENTER). Menus will guide you through
Mode the process of setting the zero & span settings for the two loops, as well as setting the LCD contrast and
performing an LCD test. When in the Program Mode, HART communication is not functional. There I
also an automatic time out feature. If a key is not pressed within a one minute timeframe, the transmitter
automatically reverts back to the Run Mode.
Test Ports
Loop #1 Test -- Use a multimeter set for DC mA and attach across the terminals. This puts your meter “in the loop” and
allows you to measure loop current directly, without breaking the loop.
Loop #2 Test -- Same as Loop #1 Test
HART --
This port allows you to connect a HART Host Device (Handheld or Modem) to the transmitter. There
must be at least a 250Ω load in Loop #1.

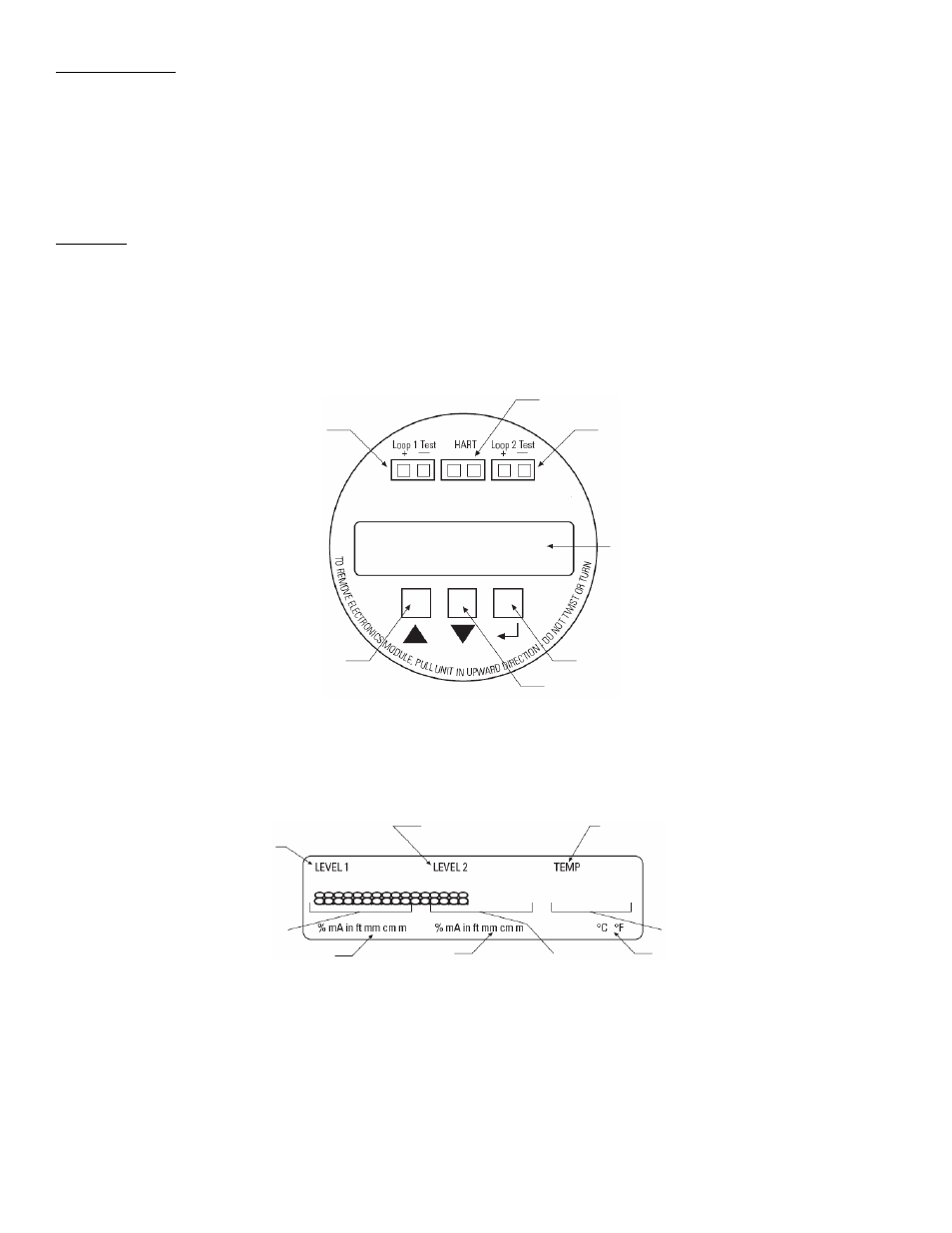

Loop #2 Test Port
(Optional)
Loop #1 Test Port
HART Test Port
Display
UP Key
DOWN Key
ENTER Key
Series KMD Puck with Display
Always enabled in Run Mode
Enabled in Run Mode and when
Level 2 is used
Enabled in Run Mode and when
Temperature is used
Level 2 Data
Level 1 Data
Level 1 Units Level 2 Units
Temperature Data
Temperature Units
LCD Display Details
