3.5 Measuring head with optical viewfinder 1°or5°
Flat dome- spherical dome
The measuring head is the optical control center of the
STARLITE 2. The 270° rotating measuring head
provides the basis for effective working in practice.
Caution:
Never try to overwind the built-in lock by force.
Sooner or later this will cause the connection
between measuring head and basic meter to break
and will have to be repaired!
The following measuring modes can be selected
using the diffuser ring at the measuring head
- Reflected light measuring 1°, spot measuring
- Reflected light measuring 5°, selective measurement
- Incident light measuring, flat dome
- Incident light measuring, spherical dome
The optical viewfinder with measuring angles of 1 ° and
5° for reflected light measuring is also located in the
measuring head. Due to these measuring angles it is
possible to precisely focus an even the smallest spots in
the subject.
The viewing field is about 12°.

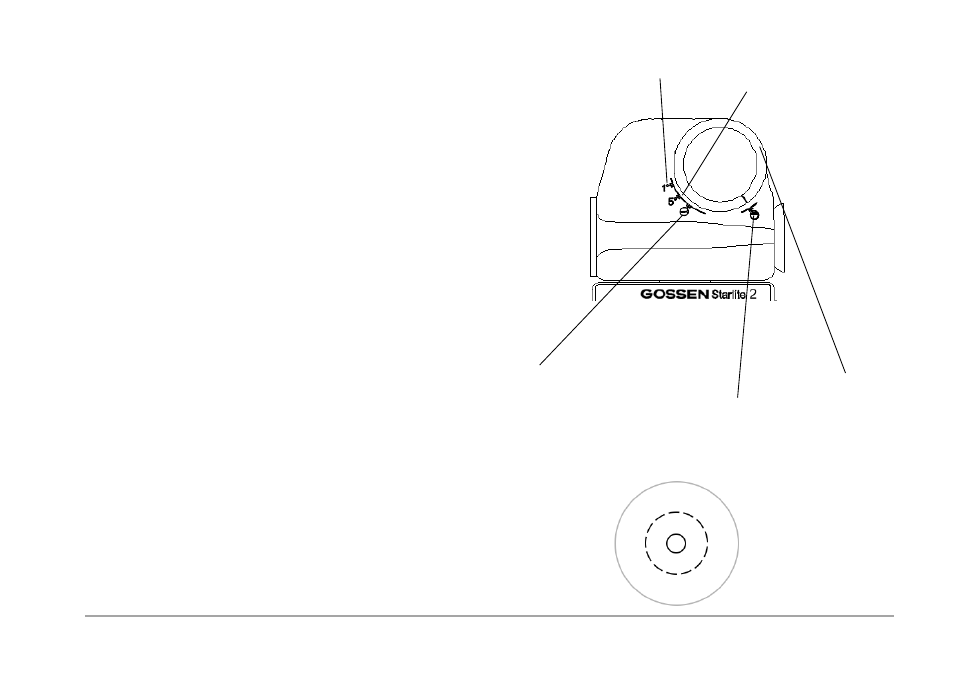

Reflected light
measuring 1°
Reflected light
measuring 5°
Incident light measuring,
spherical dome
Dome ring
Incident light measuring,
flat dome
