GBC Digicoil User Manual
Page 13

12

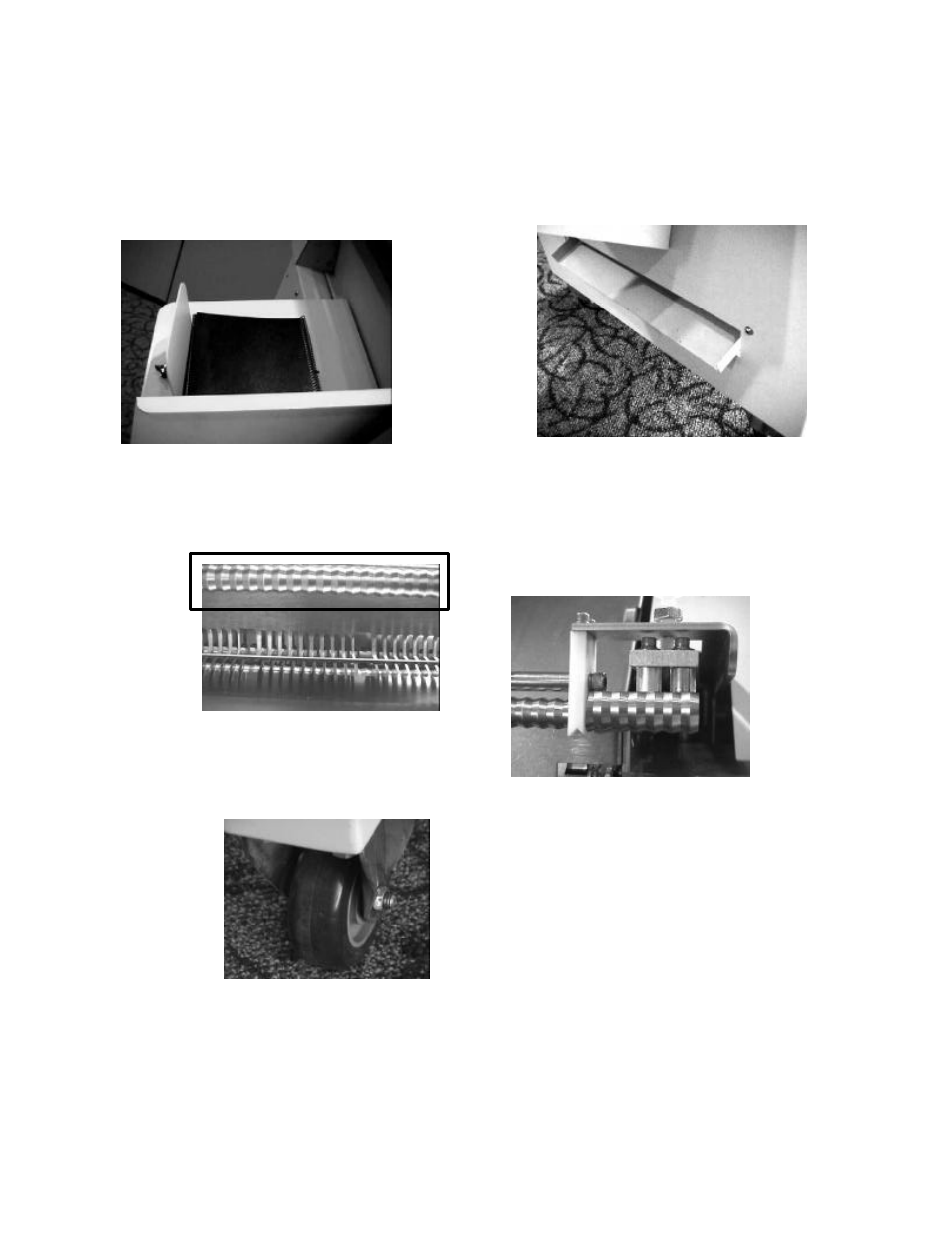

Output Stacker
Located at the far-left side of the machine. Finished
documents are ejected into the Output Stacker. The
Stacker must be emptied regularly to prevent jams.
Top Coil Guide Bar
Located in the middle of the Document Insertion Area.
This is a metal roller bar that assists in the guidance of
the coil.
Caster
Located on the ends of the legs of the DigiCoil. There
are four Casters, making the unit easy to roll from work
station to work
station, or away
for storage.
Excess Coil Shoot
Located underneath the Output Stacker. After the coil
has been cut to the appropriate length for the document,
the excess coil is ejected out of the DigiCoil through the
Coil Shoot. Please place an empty paper box under the
Shoot to collect the remnants.
Detection Arm
Located at the end of the Top Coil Guide Bar in the
Document Insertion Area. This tells the unit whether a
coil is present or not. It also assists the Black Rollers in
driving the coil into the document.
