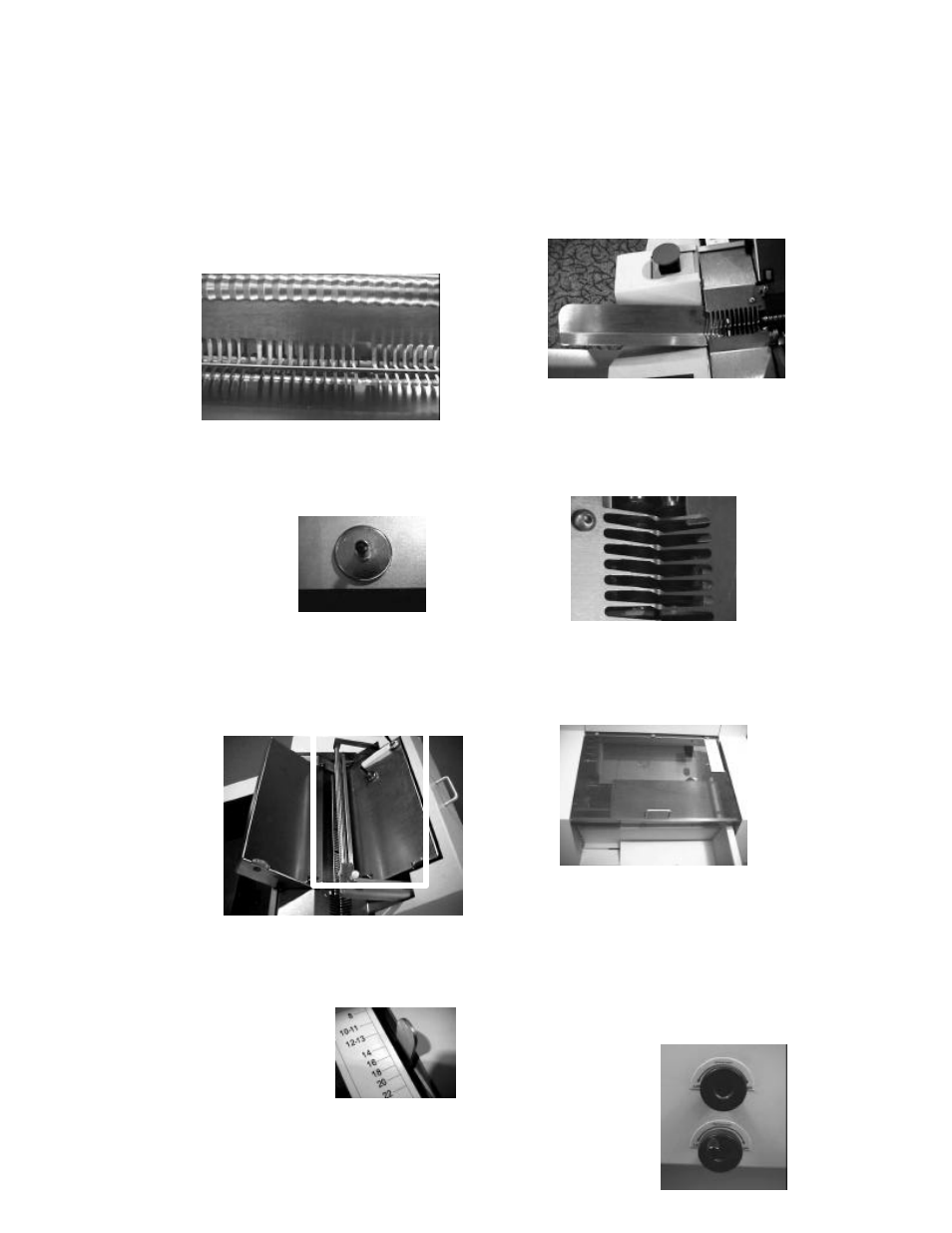

Edge Adjustment Guide Knob

Located on both the Right and Left Bind Decks. The
Knob is used to adjust the paper/document placement
against the Platen.

Platen

Located on the top of the machine in the Document
Insertion Area. The Platen guides the coil through the
document.
It is
important to
align the
holes in the
document
with the
openings in
the Platen.

Document Guide Magnet

Located on the Right Bind Deck. The magnet helps
prevent document from skewing as the document is
dropped from the Document
Insertion Area to the
Cut/Crimp Station. The
magnet should be placed ¼”
from the edge of the
document, aligned with the
middle of the document.

Bind Deck

Located on the top of the machine. There is a Right
Bind Deck and a Left Bind Deck. Documents are placed
on the Bind Deck prior to coil
insertion.
Document that
are 16mm and
larger must have
½

inserted on the

Right Bind
Deck and ½
inserted on the
Left Bind Deck.

Cut/Crimp Knife Height Adjustment Lever

Located on the top left side of the machine. The lever
controls the height of the paper path that delivers the
document to the Cut/Crimp Station. The Lever is easily
adjusted, according to coil size, by
moving the Lever to the
appropriate position as indicated
on the Adjustment Label. The
Adjustment Label is next to the
Lever.

Coil Driver

Located on the top of the machine. This is a chute-like
metal holder towards the bottom, with slots at the top.
Place the coil on top of the slots for Document insertion.

Black Rollers

Located under the slots of the Coil Driver. These rubber
rollers drive the coil into the document.

Cut/Crimp Station

Located under the Clear Access Panel, in the mid-
section of the machine. This is where the document is
cut and crimped after the coil has been inserted.

Clear Access Panel

Located on the left side of the machine. Opening this
panel accesses the Paper Path, Cut/Crimp Station and
Knives.

Knife Adjustment Knob(s)

Located on the front of the machine. There are two
Knife Adjustment Knobs, one for each knife. These
knobs adjust the cutting position of each knife
individually.
