20 E-flite Beechcraft Staggerwing 480 ARF Assembly Manual
Receiver and Motor Battery Installation
Required parts
Fuselage assembly Receiver
Motor battery Two-sided tape
Hook and loop tape (not included)
6-inch (152mm) servo extension

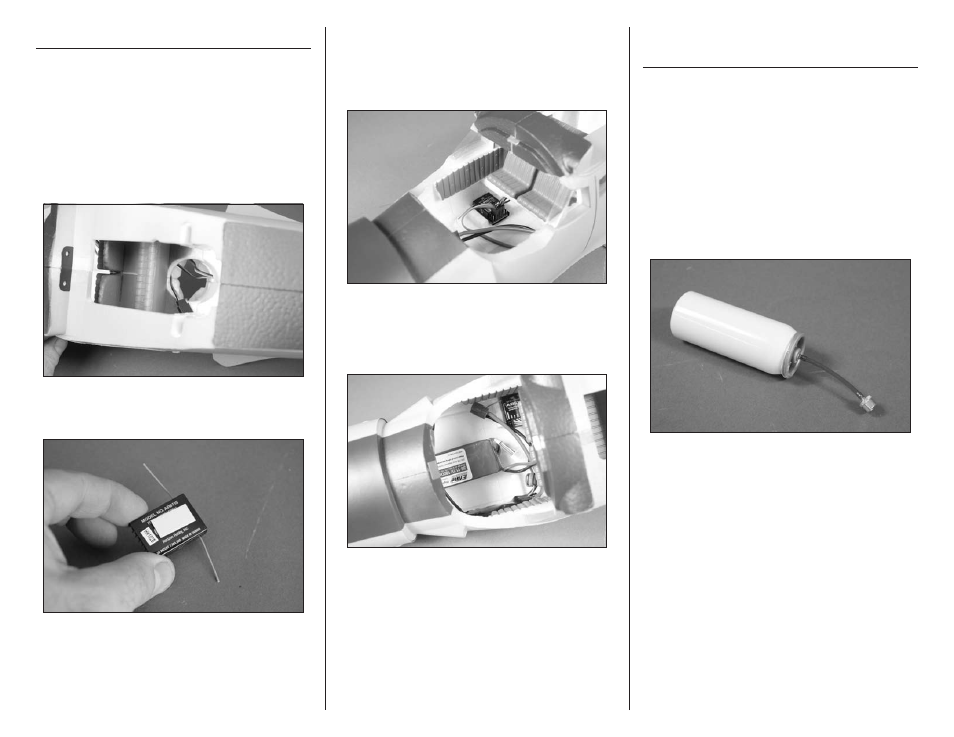

 1. Route the 6-inch (152mm) servo extension
from the top of the fuselage through to the battery
compartment of the fuselage.
 2. Place a piece of two-sided tape on the bottom of
the receiver.
 3. Connect the leads from the ESC, elevator servo,
rudder servo, and the 6-inch (152mm) aileron servo
extension to the appropriate ports of the receiver.
Secure the receiver in the fuselage using the two-
sided tape.
 4. The motor battery will slide into the opening at
the front of the fuselage. Use hook and loop tape
on the battery and fuselage to keep it secure in
the fuselage.
Retract Air Tank
Installation (Optional)
Required parts
Fuselage assembly Air tank
Air line Quick disconnect
Required Tools and Adhesives
Hobby knife with #11 blade
Silicone adhesive
 1. Use a hobby knife with a #11 blade to trim a
2-inch (52mm) piece of red airline. Connect the
airline to the air tank. Connect the quick disconnect to
the opposite end of the air line.
