E-flite Aeronca Champ 15e ARF Assembly Manual



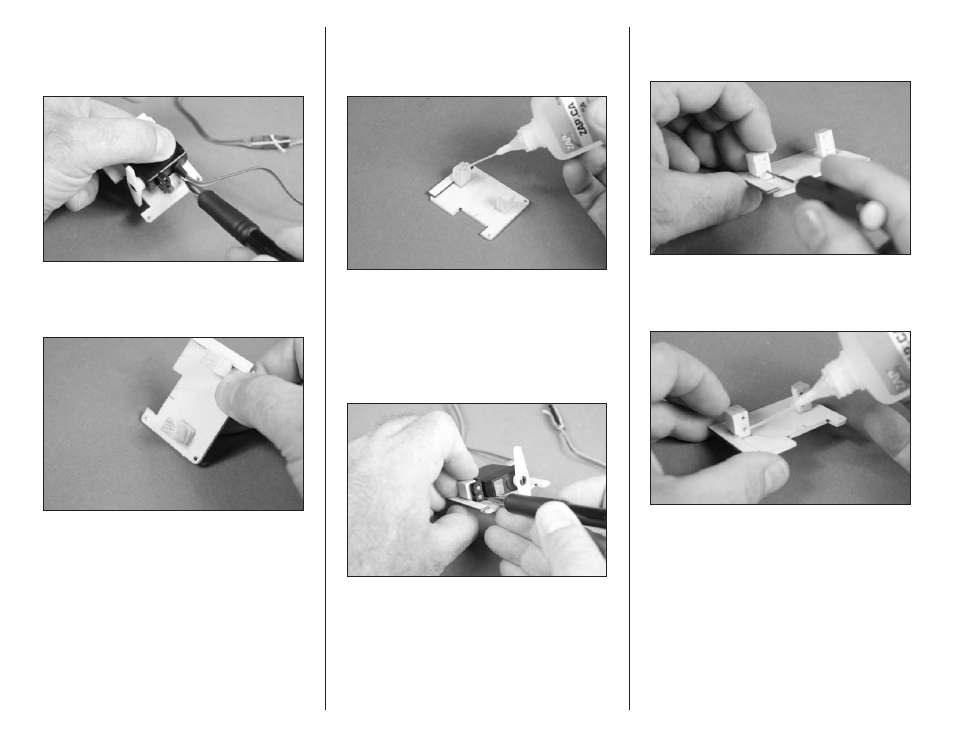

13. Position the servo between the servo mounting

blocks. Use a pencil to mark the block against

the servo lead so it can be trimmed to provide

clearance for the servo lead.



14. Use a razor saw and sanding block to trim the

servo mounting block to allow clearance for the

servo lead.



15. Apply thin CA to the top of each servo

mounting block. The wood fibers will soak in the

CA, which will help prevent the blocks from splitting

when they are drilled for the servo mounting screws.



16. Position the servo between the blocks. Position

the servo so there is a small gap of 1/64-inch

(.5mm) between the servo cover and servo to

prevent the transfer of vibration from the airframe

into the servo. Use a pencil to mark the locations

on the servo mounting blocks for the servo

mounting screws.



17. Use a pin vise and 1/16-inch (1.5mm) drill bit

to drill the holes in the servo mounting blocks for the

servo mounting screws.



18. Apply 2–3 drops of thin CA in each hole to

harden the surrounding wood. This will help keep

the screws from vibrating loose.
