18 E-flite Aeronca Champ 15e ARF Assembly Manual

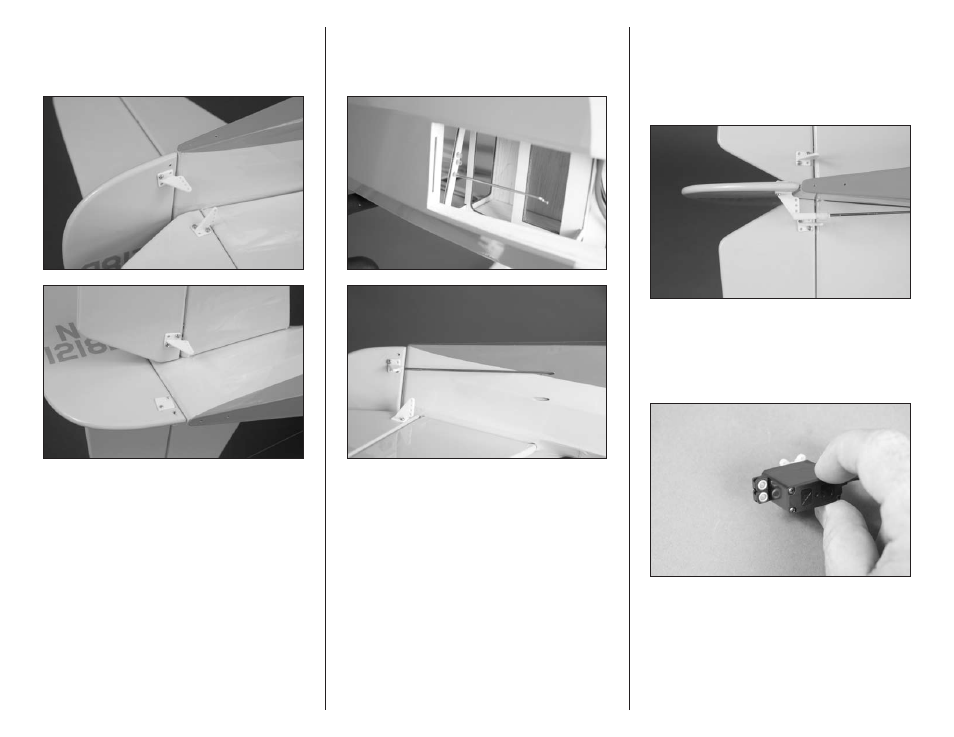

 3. Repeat Step 2 to install control horns on the
rudder and remaining elevator. Note that the rudder
control horn is on the left side of the fuselage as if
you were sitting in the pilot seat.
 4. Slide the 19 7 /
8
-inch (505mm) rudder pushrod
into the guide tube in the fuselage. You may need to
assist it exiting the rear of the fuselage so it doesn’t
damage the covering at the exit.
 5. Slide a silicone clevis retainer over a nylon clevis.
Thread the clevis 10-turns on the end of the rudder
pushrod. Connect the clevis to the outer hole of
the rudder control horn. The overall length of the
pushrod must still be adjusted, so don’t slide the
retainer over the clevis at this time.
 6. Install the servo grommets and brass eyelets
following the instructions provided with the servo.
Prepare both the rudder and elevator servos at this
time. Remove the horn from the servo at this time
using a #1 Phillips screwdriver.
