23 E-flite Aeronca Champ 15e ARF Assembly Manual

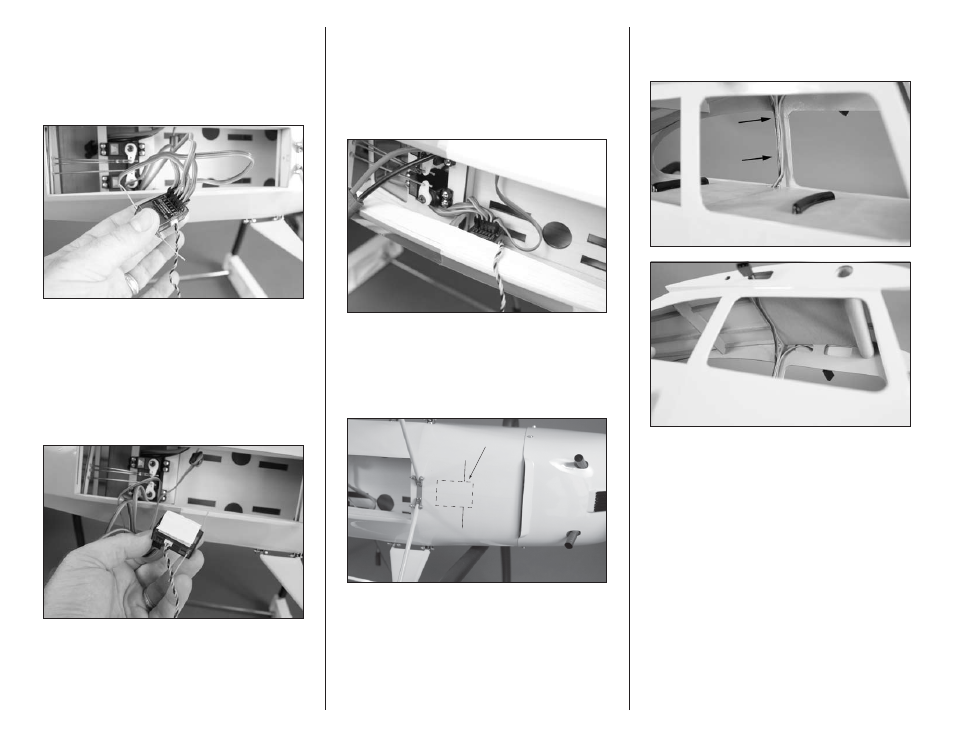

 2. Use hemostats to retrieve the leads for the aileron
servos and bring them up along side the rudder
servo. Plug the 12-inch (305mm) extension into the
aileron channel, the 9-inch (228mm) extension into
the flap channel, and rudder, elevator and speed
control into the correct ports of the receiver.
Note: Use a Y-harness for both aileron leads
when using a non-computer radio without the
capability of individual aileron channels. Plug
the Y-harness into the aileron port of the radio.
 3. Use scissors to cut a piece of hook and loop tape
to fit the receiver. Peel the backing from the tape
and place it on the back of the receiver.
 4. Use the hook and loop tape to secure the
receiver in the fuselage. Make sure the antennas
on the receiver, are straight. If they are not
straight, it could reduce the range of the radio
system. Carefully tuck the servo leads so they
don’t interfere with the operation of the rudder
and elevator servos.
 5. Use scissors to cut a small piece of hook and
loop tape sized to fit the remote receiver. Use the
hook and loop tape to mount the remote receiver
forward and inside the fuselage as indicated. Note
the direction of the antenna for the remote receiver.
Remote receiver location
 6. Use medium CA to tack glue to the servo leads
for the aileron extensions. This will keep them
hidden, enhancing the appearance of your model.
