3 E-flite Aeronca Champ 15e ARF Assembly Manual
Using the Manual
This manual is divided into sections to help make
assembly easier to understand, and to provide breaks
between each major section. In addition, check boxes
have been placed next to each step to keep track
of its completion. Steps with a single circle () are
performed once, while steps with two circles ( )
indicate the step will require repeating, such as for a
right or left wing panel, two servos, etc.
Remember to take your time and follow the directions.

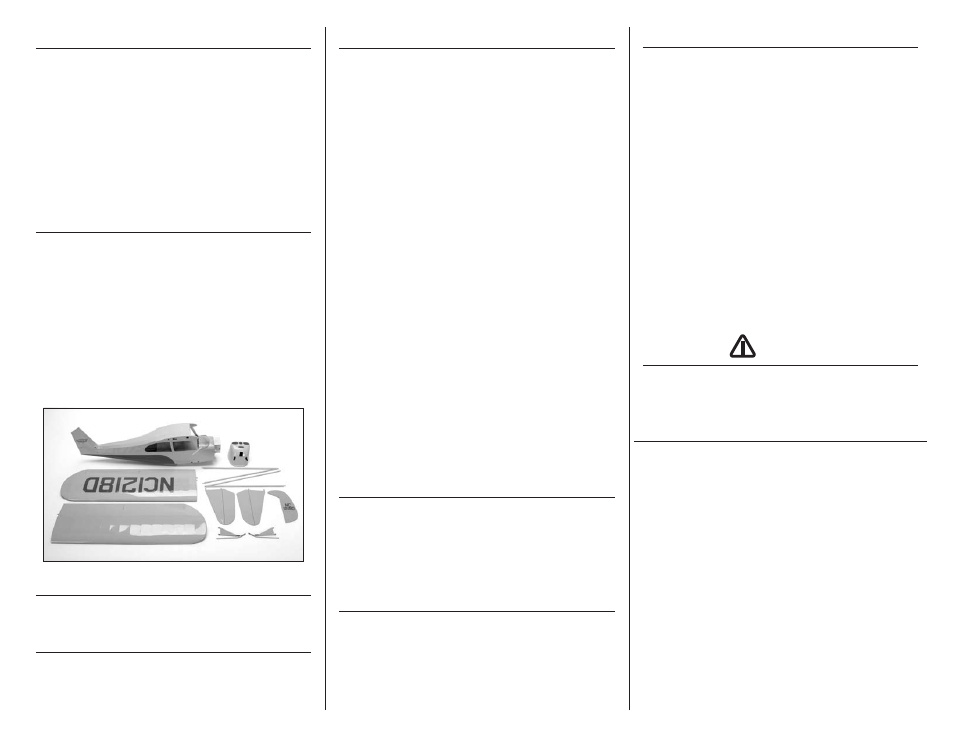

Contents of Kit/Parts Layout
Replacement Parts
EFL280001 Fuselage
EFL280002 Wing Panels (left and right)
EFL280003 Tail Set
EFL280004 Landing Gear
EFL280005 Cowling
EFL280006 Main Wheel Set
EFL280007 Windshields
EFL280008 Hardware
EFL280009 Pushrods
EFL280010 Main Struts
EFL280011 Wing Tube
EFL280012 Tail Wheel Assmembly
Covering Colors
Orange HANU877
Cub Yellow HANU884
Hardware/Accessory Sizes
Main wheel diameter 2 1 /
2
-inch (63mm)
Tail wheel diameter 1-inch (25mm)
Recommended Radio Equipment
You will need a minimum 4-channel transmitter,
receiver and four servos. You can choose to purchase
a complete radio system. If you are using an
existing transmitter, just purchase the other required
equipment separately. We recommend the crystal-
free, interference-free Spektrum ™ DX6i 2.4GHz DSM ®
6-channel system. If using your own transmitter, we
recommend the following radio equipment.
If you own the Spektrum DX6i radio, or you are using
a different DSM2 radio, just add the AR6200 DSM2 ™
6-channel receiver and four JR SPORT ™ MC35 servos.
Complete Radio System
SPM6600 DX6i DSM2 6CH system
Or Purchase Separately
SPMAR6200 AR6200 DSM2 6-Channel
Full-Range Receiver
JSP20030 MC35 Servo (4)
JSP98110 6-inch (152mm) (2)
aileron servo inside wing
JRPA096 9-inch (228mm)
receiver to aileron extension
JSP98030 12-inch (305mm)
receiver to aileron extension
JSP98060 Large JR Sport Servo Arm
Optional
JSP98020 6-inch (152mm) Y-Harness
(Required if not using a
computer radio with dual aileron
inputs)
Power 15 Motor Setup
EFLM4015A: Power 15 Brushless Outrunner
Motor, 950Kv
EFLA1040L: 40-Amp Lite Pro Switch-Mode
BEC Brushless ESC
EFLB32003S30: 3200mAh 3S 11.1V 30C Li-Po,
12AWG EC3
APC11070E APC Electric Propeller,11 x 7E
Optional Accessories
EFLA110 Power Meter
EFLC505 Intelligent 1- to 5-Cell
Balancing Charger
EFLAEC312 Charge Lead with 12-inch
Wire and Jacks, 16AWG
EFLA151 Civilian Pilot, Blue
Required Tools and Adhesives
Tools & Equipment
Balancing stand Card stock
Clamps Drill
Felt-tipped pen Hemostat
Low-tack tape Mixing cup
Mixing stick Needle nose pliers
Paper towels Pencil
Pin vise Phillips screwdriver: #1
Pliers Razor saw
Rubbing alcohol Ruler
Sanding block Scissors
Side cutter Small flat blade screwdriver
Square Straightedge
String Toothpicks
T-pins Tweezer
Hex wrench: 1.5mm, 3/32-inch
Hobby knife with #11 blade
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
Nut driver: 4mm, 7mm
Adhesives
12-minute epoxy 6-minute epoxy
Thin CA Medium CA
Threadlock Canopy glue
Warnings
Read and follow all instructions and safety precautions
before use. Improper use can result in fire, serious
injury and damage to property.
COMPONENTS
Use only with compatible components. Should any
compatibility questions exist please refer to the product
instructions, the component instructions or contact
Horizon Hobby, Inc.
The Spektrum trademark is used with permission
of Bachmann Industries, Inc.
All other marks are trademarks or registered
trademarks of Horizon Hobby, Inc.
