1 E-flite Sobré 3D Profile Assembly Manual

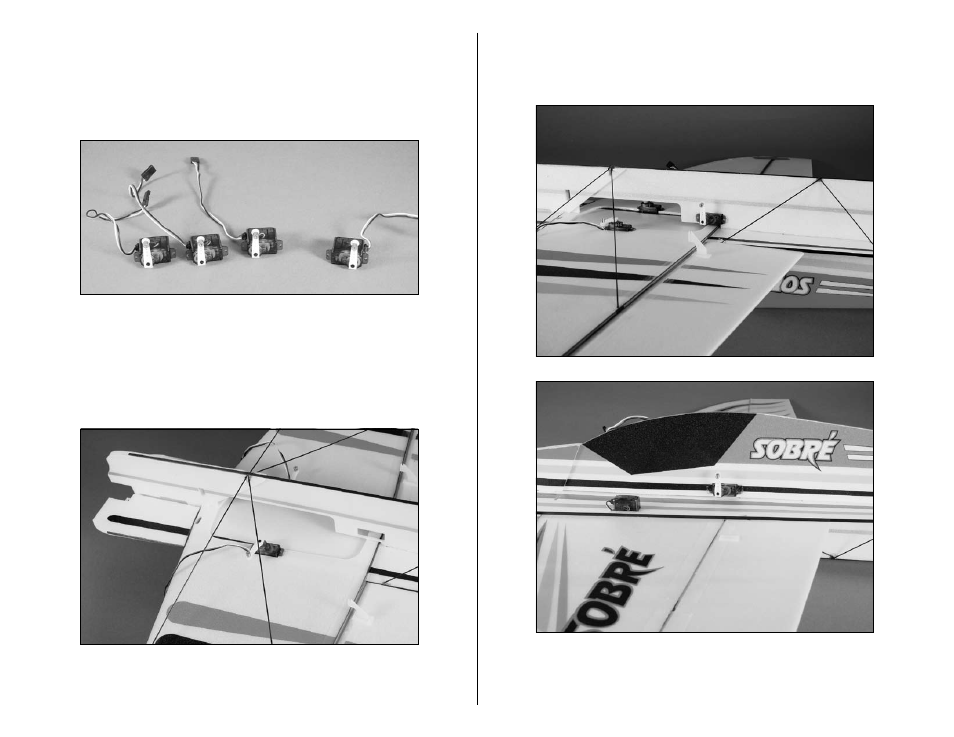

 6. Plug the servos into the receiver. Turn on the
transmitter and receiver and check the operation of
the servos. After centering the trims and sub-trims,
attach the servo arms as shown. Note the direction of
the arms on the servos.
 7. Use hot glue to install the aileron servos.
Note: The servo arms face toward the tips of the wing
and the output shaft of the servo is toward the leading
edge of the wing.
Note: Position the aileron servo arm parallel to the
aileron hinge line.
 8. Install the rudder and elevator servos using hot
glue. The output shafts of both servos face the front
of the aircraft.
