1 E-flite Sobré 3D Profile Assembly Manual
Installing the Bracing
Required Parts
Assembled airframe
Carbon rod, 4.6-inch (117mm) (2)
Carbon rod, 5.9-inch (150mm) (2)
Carbon rod, 4.3-inch (110mm) (2)
Carbon rod, 3.9-inch (100mm) (4)
Carbon rod, 3.75-inch (95mm) (4)
Carbon rod, 12.7-inch (323mm) (2)
Carbon rod, 12-inch (305mm) (2)
Required Tools and Adhesives
Foam-compatible CA, Medium
Sandpaper
Hobby knife
Side cutters
Eye protection
Note: It is important that each carbon rod attaches to
the next, and to the carbon blade spars on the edges
of the foam. This is necessary to provide the stiffest
airframe possible.

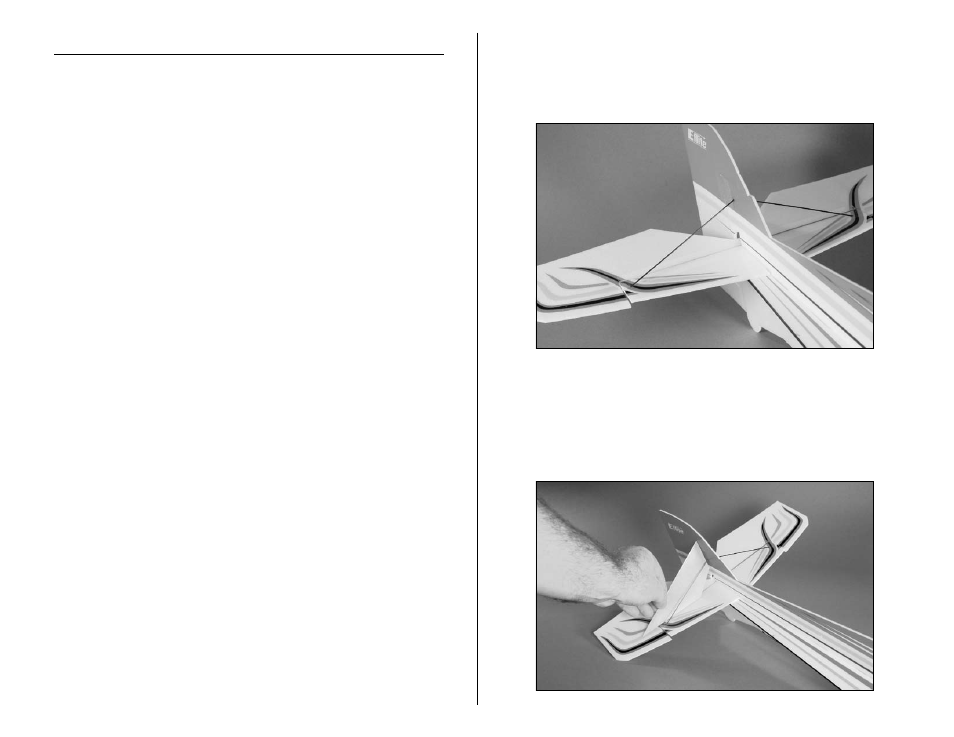

 1. Locate the two 4.6-inch (117mm) carbon rods. Pass
the rods through the fin and stabilizer. Butt the rods
together in the fin and use foam-compatible CA to
glue the rods to the fin ONLY at this time.
 2. Use a square to align the stabilizer with the fin.
Once the fin is perpendicular to the stabilizer, use
Foam-compatible CA to glue the carbon rod to the
stabilizer. Square each side before gluing the rod on
that particular side.
