1 E-flite Sobré 3D Profile Assembly Manual

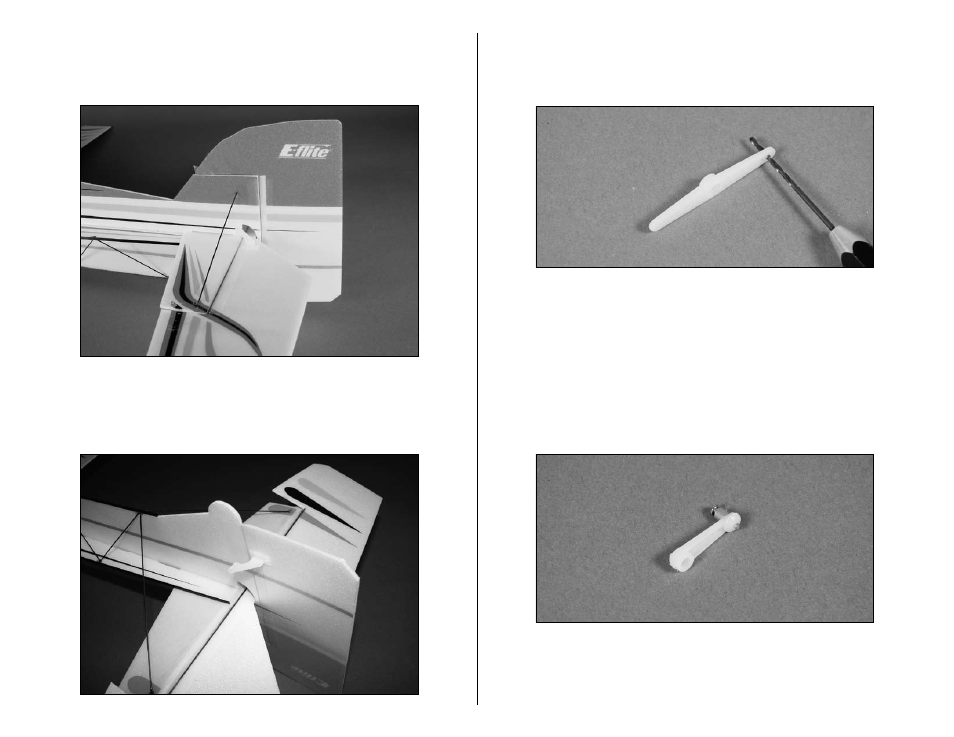

 2. Install the elevator micro control horns at this time.
Make sure the rudder horn extends opposite of the
elevator horn.
 3. Install the rudder micro control horns at this time as
well. Make sure the rudder horn extends opposite of
the elevator horn.
 4. Remove the servo arms from the four servos. Drill
a
1 /
16
-inch (1.5mm) hole in the end of all four of the
servo arms.
Note: We then suggest using the longest servo arms
available for your servo to help achieve maximum control
throws for 3D flying.
 5. Slide a micro control connector into the hole drilled
in the previous step. Secure the connector using a
control connector backplate from the opposite side of
the connector. Repeat for all four servo arms.
Note: The connectors will face out away from the servo
when installed. Remove any unused sides or portions of
the servo arms.
