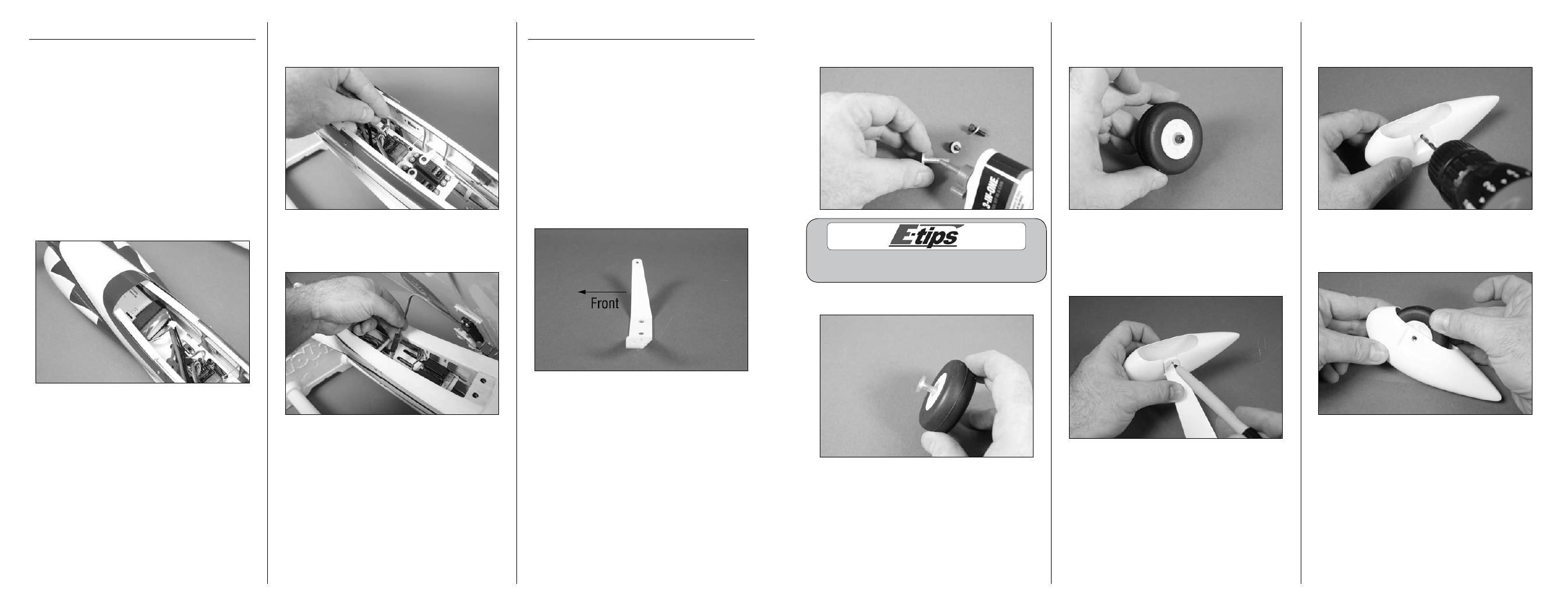

30 E-flite LR-1A Pogo 15e ARF Assembly Manual 31 E-flite LR-1A Pogo 15e ARF Assembly Manual
 2. Remove the hardware from the axle. Place a
drop of light machine oil on the axle to help the
wheel roll freely.
Always use threadlock on metal-to-metal fasteners
to prevent them from vibrating loose.
 3. Slide the axle into the wheel.
 4. Use a 3mm hex wrench or ball driver to secure
the wheel using the shorter screw and washer
removed from the axle.
 5. Position the wheel pant on the landing gear.
With the indentation of the wheel pant resting flat
on the gear, use a felt-tipped pen to transfer the
location for the screw that secures the wheel pant
and wheel to the landing gear.
 6. Use a drill and 5/32-inch (4mm) drill bit to drill
a hole in the wheel pant at the locations marked in
the previous step.
 7. Slide the wheel into the wheel pant. You may
need to flex the pant open slightly to get the wheel
to fit.
Battery and Wing Installation
Required Parts
Wing assembly Fuselage assembly
Motor battery Servo extension: 3-inch (76mm)
4mm washer (2) Wing bolt plate
4mm x 30mm machine screw (2)
Required tools and Adhesives
Phillips screwdriver: #2
Hook and loop strap
Hook and loop tape
 1. Secure the battery in the fuselage using a hook
and loop strap. Also, place hook and loop tape on
the battery and fuselage where they contact each
other to prevent the battery from moving.
 2. Plug the aileron servo extension into the receiver.
Route the extension through the servo tray so it can
be accessed from the bottom of the fuselage.
 3. Plug the aileron servo lead into the servo
extension. Mount the wing following the procedure
described earlier in this manual.
Landing gear Installation
Required Parts
Main wheel (2) Axle with hardware (2)
Assembled airframe
Aluminum landing gear
1/4-20 x 2-inch nylon bolt (2)
Required tools and Adhesives
Felt-tipped pen Drill
Light machine oil Drill bit: 5/32-inch (4mm)
Threadlock Flat blade screwdriver
Hex wrench or ball driver: 3mm
 1. Locate the aluminum landing gear. The straight
side of the gear faces to the front of the aircraft.
