User Programming Mode SXT
Abbreviation Parameter Description
DO Day Override
The timer's day override
setting.
RT Regeneration Time
The time of the day that the
system will regenerate (meter
delayed, timeclock, and day-of-
week systems)
H Feed Water Hardness
The hardness of the inlet water
- used to calculate system
capacity for metered systems.
RC or SF Reserve Capacity The fixed reserve capacity.
CD Current Day The current day of week.
NOTE: Some items may not be shown depending on timer
configuration. The timer will discard any changes
and exit User Programming Mode if a button is not
pressed for 60 seconds.
A. User Programming Mode Steps
1 . Press the Up and Down buttons for five seconds while in service,
and the time of day is NOT set to 12:01 PM .

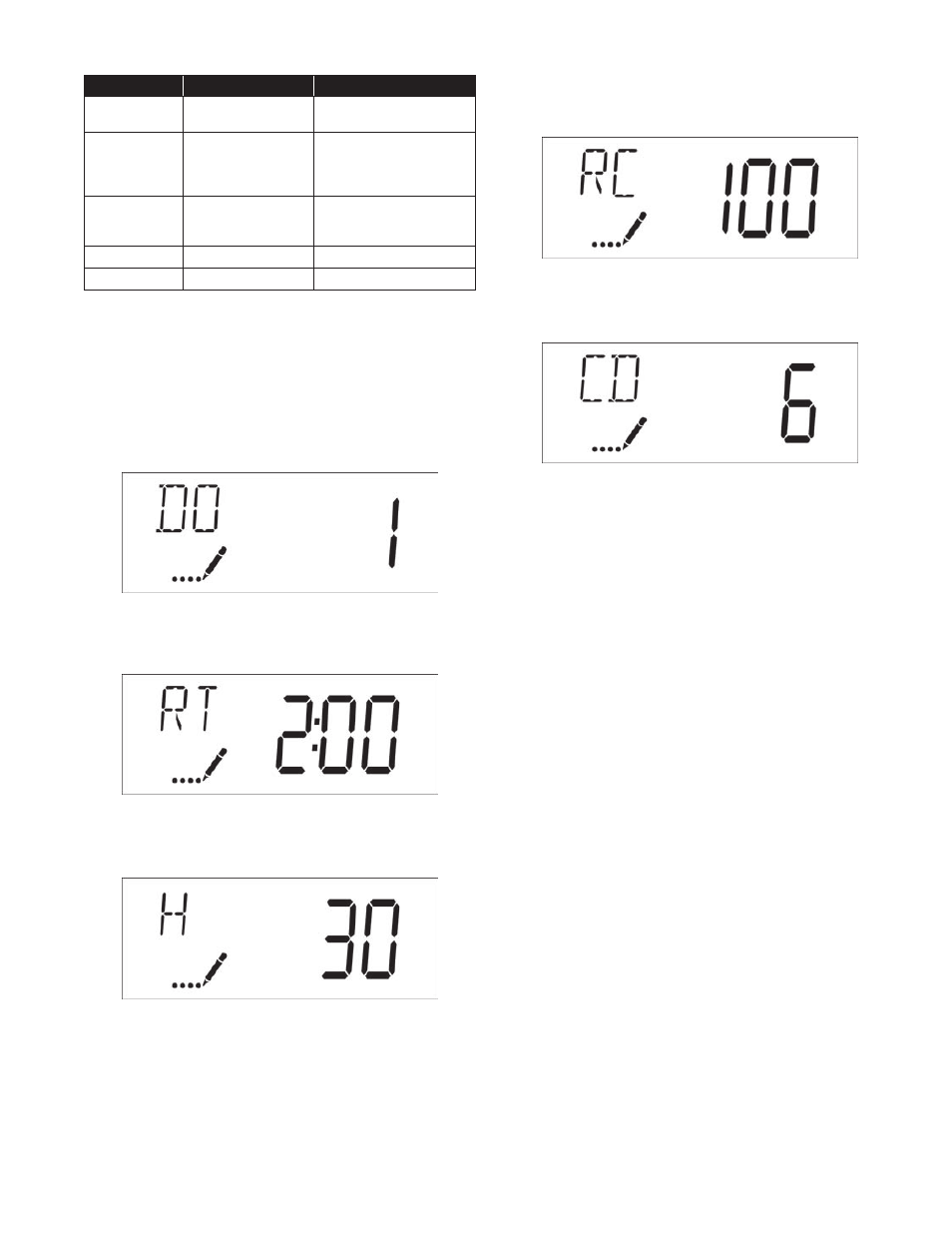

2 . Use this display to adjust the Day Override . This option setting is
identified by "DO" in the upper left hand corner of the screen .
Figure 28
3 . Press the Extra Cycle button . Use this display to adjust the
Regeneration Time . This option setting is identified by "RT" in the
upper left hand corner of the screen .
Figure 29
4 . Press the Extra Cycle button . Use this display to adjust the Feed
Water Hardness . This option setting is identified by "H" in the
upper left hand corner of the screen .
Figure 30
Range: 1-199 hardness
5 . Press the Extra Cycle button . Use this display to adjust the Fixed
Reserve Capacity . This option setting is identified by "RC" or "SF"
in the upper left-hand corner of the screen .
Figure 31
6 . Press the Extra Cycle button . Use this display to set the Current
Day of the Week . This option setting is identified by "CD" in the
upper left hand corner of the screen .
Figure 32
7 . Press the Extra Cycle button to end User Programming Mode .
