Models PPLIM.. PresencePLUS Light Interface Module
P/N 128190
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering Corp. will repair
or replace, free of charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty
period. This warranty does not cover damage or liability for the improper application of Banner products. This warranty is in lieu of any
other warranty either expressed or implied.
Terminal Block Wiring Tables
“Input” Terminal Block
“ PresencePLUS Light” Terminal Block
Pin Color Description
1 Brown 24V dc
2 Blue OV dc (Common)
3 Black 8-30V Strobe
4 Pink 5V Strobe
Pin Color Description
1 Brown 24V dc
2 Blue OV dc (Common)
3 White 5V Active low (non-inverting)
4 Yellow 5V Active high (inverting)

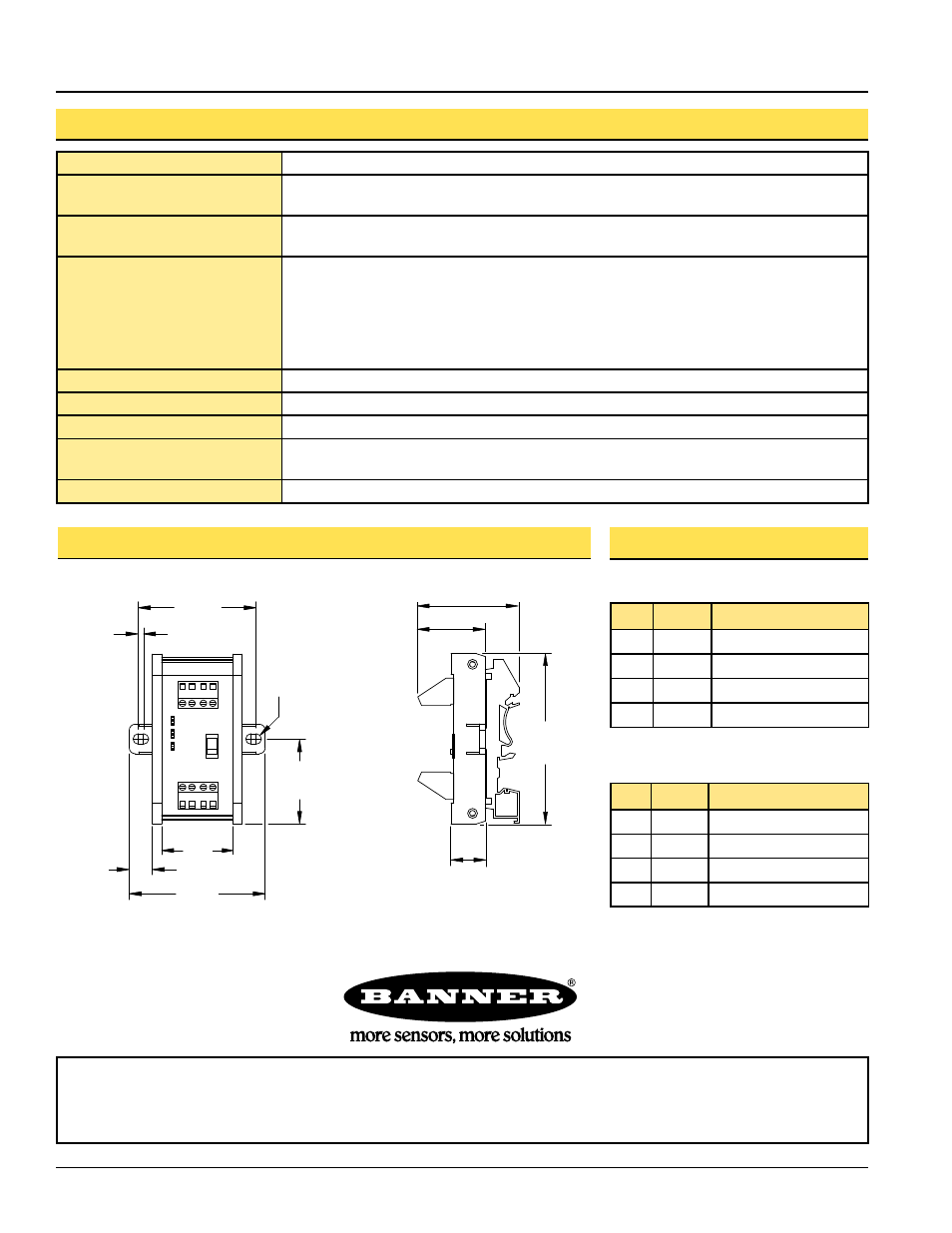

Dimensions
2X 2.7 mm
(0.11")
52.5 mm
(2.07")
2X 11.8 mm (0.46")
2X R 2.7 mm
(R 0.11")
43.2 mm
(1.70")
62.6 mm
(2.46")
28.7 mm
(1.13")
86.4 mm
(3.40")
29.5 mm
(1.16")
49.5 mm
(1.95")
17.5 mm
(0.69")
Specifications
Input Supply Voltage 24V dc ±10%
Strobe Output Non-Inverting “Active Low”: 5V @ 10 mA max.
Inverting “Active High”: 5V @ 10 mA max.
Adjustments NPN / PNP Select switch is dedicated to “8-30V Strobe” input only.
When using “5V Strobe” input, put NPN / PNP Select switch in PNP position.
Indicator LEDs Power
Green: Power ON
5V Strobe
Green: Active
8-30V Strobe
Green: Active
Construction PCB circuit board; PVC housing, polyamide end caps and DIN rail mounting hardware
Environmental Rating IEC IP00: NEMA 1
Connections Terminal Strip: Accepts 12 to 24 gauge wire
Operating Conditions Temperature: 0° to +50° C (+32° to +122° F)
Max. Relative Humidity: 90% (non-condensing)
Weight Approximately 45 grams (0.1 lb.)
