Cb a – Banner FLTI Infrared Pass Filter User Manual
Page 2
Use the FLTI filter only with infrared light sources. The lens filter installs behind the lens.
1. Remove the lens.
2. Insert the FLTI filter.
3. Install the retainer ring.
4. Remount the lens.
Note: Take care not to fingerprint the filter. If necessary, carefully clean the filter using only lens or window
cleaner.
C
B
A

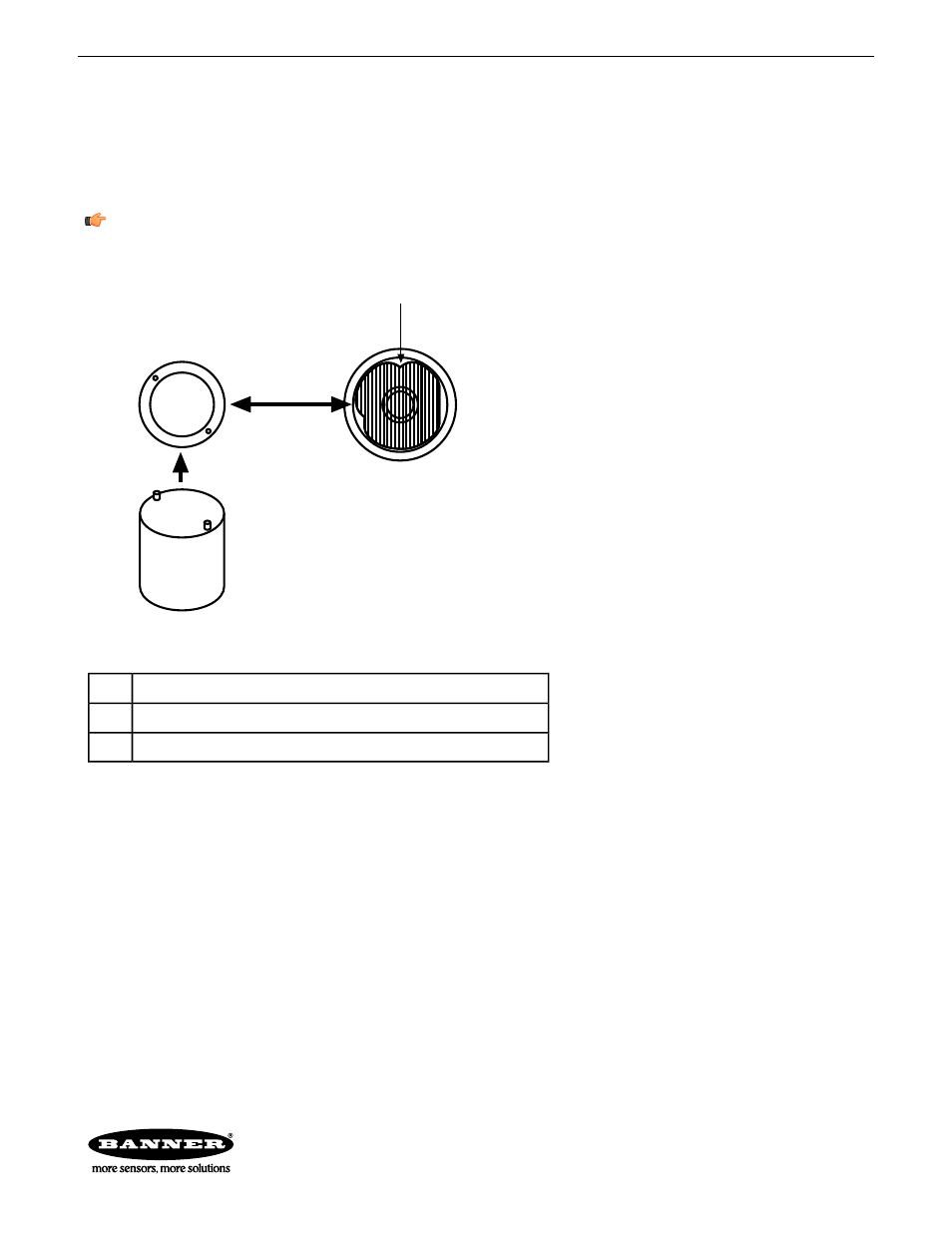

Figure 2: Installing the FLTI Filter on PresencePLUS Sensors
Use the retainer ring tool to install the retainer ring.
A
Install retainer ring.
B
Insert FLTI filter.
C
Warranty: Banner Engineering Corp. will repair or replace, free of charge, any product
of its manufacture found to be defective at the time it is returned to the factory during
the warranty period. This warranty does not cover damage or liability for the improper
application of Banner products. This warranty is in lieu of any other warranty either
expressed or implied.
