WORLD-BEAM
®
QS30ELVC Series

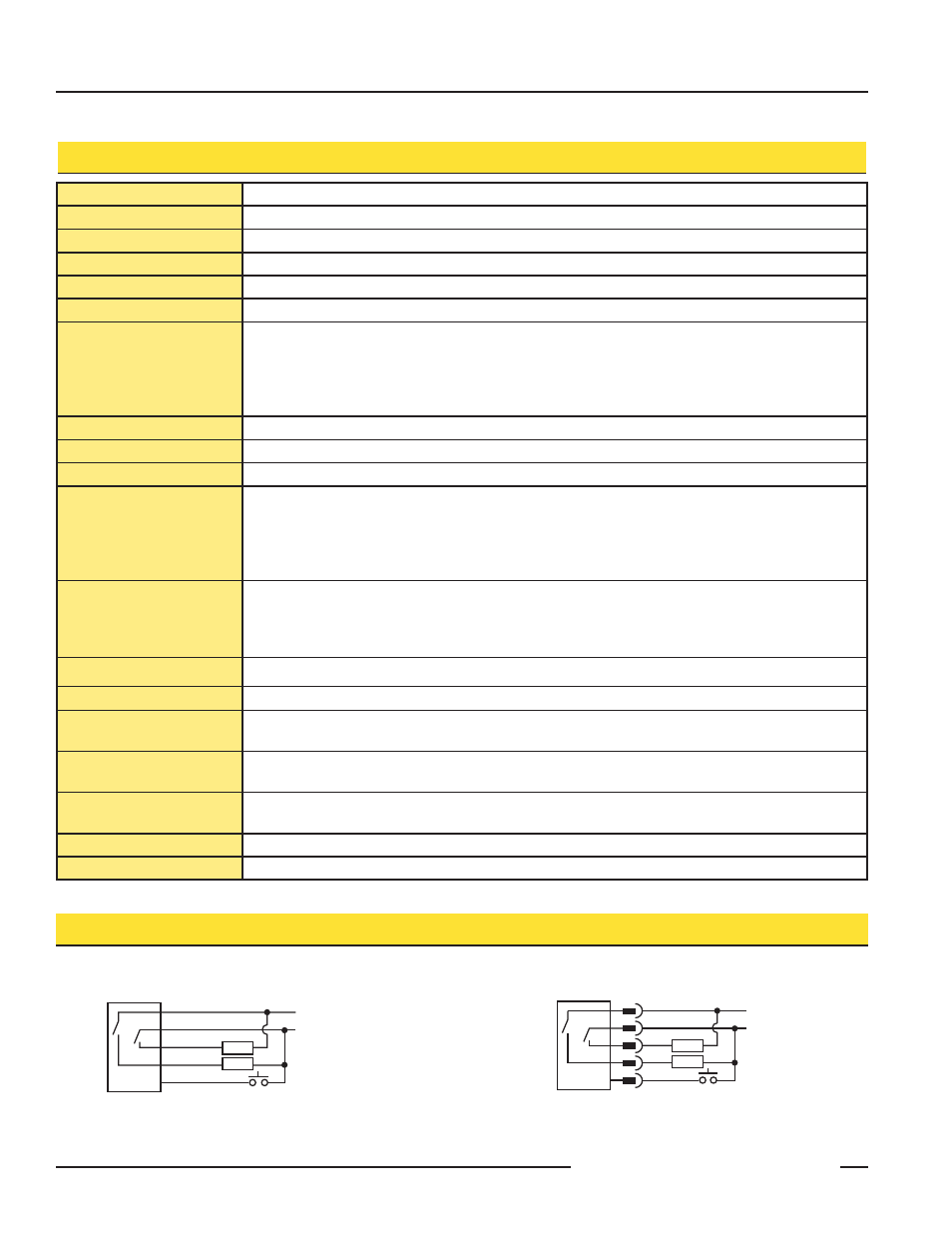

Specifications
Sensing Beam 660 nm visible red LED
Sensing Range and Use 100 mm to 2 m (3.9" to 78"); Light SET for clear object detection
Supply Voltage 10 to 30V dc (10% max. ripple) @ 25 mA max current, exclusive of load
Supply Protection Circuitry Protected against reverse polarity, over voltage, and transient voltages
Delay at Power-Up 250 ms; outputs do not conduct during this time
Output Configuration Bipolar: 1 current sourcing (PNP) and 1 current sinking (NPN)
Output Ratings
150 mA maximum load; see Application Note 1
OFF-state leakage current: < 50 µA at 30V dc
ON-state saturation voltage:
NPN: < 200 mV @ 10 mA; < 1V @ 150 mA
PNP: < 1.25V @ 10 mA; < 2V @ 150 mA
Output Protection Protected against output short-circuit, continuous overload, transient over-voltages, and false pulse on power up
Output Response Time 500 microseconds
Repeatability 150 microseconds
Adjustments
2 push buttons and remote wire
• Easy push-button configuration and deterministic remote wire configuration
• Select from 3 standard thresholds based on object being detected
• Light Operate/Dark Operate configuration options selectable via push buttons or remote wire
• Push-button lockout (from remote wire only)
Indicators
Green LED: Power ON and feedback on configuration and remote wire pulses
Amber LED: Output conducting or error condition (flashing)
3-Segment Red Signal Bargraph: Signal strength (excess gain), relative to switchpoint
5-Segment Amber Display: Sensor Configuration
Construction ABS plastic housing; acrylic lens cover
Environmental Rating Leakproof design rated IEC IP67 (NEMA 6); PW12 1200 PSI washdown
Connections
5-conductor 2 m (6.5’) PVC cable, 9 m (30’) PVC cable, 150 mm (6") pigtail with a 5-pin Euro-style connector,
150 mm (6") PUR cable with 5-pin threaded Euro-Style QD or 5-pin integral Euro-style quick-disconnect fitting
Operating Conditions
Temperature: -10° to +55°C (+14° to 122°F),
Max. relative humidity: 95% @ 50°C (non-condensing)
Vibration and Mechanical
Shock All models meet Mil. Std. 202F requirements. Method 201A (Vibration: 10 to 60 Hz max. double amplitude 0.06",
maximum acceleration 10G). Also meets IEC 947-5-2 requirements: 30G, 11 ms duration, half sine wave.
Application Notes 1. If supply voltage is > 24V dc, derate maximum output current 1 mA/°C above 25°C
Certifications CE Pending
Hookups
Cabled Models QD Models
bn
Remote Teach
bu
wh
bk
gy
+
10 - 30V dc
–
Load
Load 150 mA max. load
bn
Remote Teach
Note: Pink wire not used
bu
wh
bk
gy
+
10 - 30V dc
–
Load
Load 150 mA max. load
