Banner WORLD-BEAM QS30 Clear Object Sensor - Manual (Page 10)

Banner Engineering Corp. • Minneapolis, MN U.S.A
www.bannerengineering.com • Tel: 763.544.3164 10
P/N 139760 rev. A
WORLD-BEAM
®
QS30ELVC Series

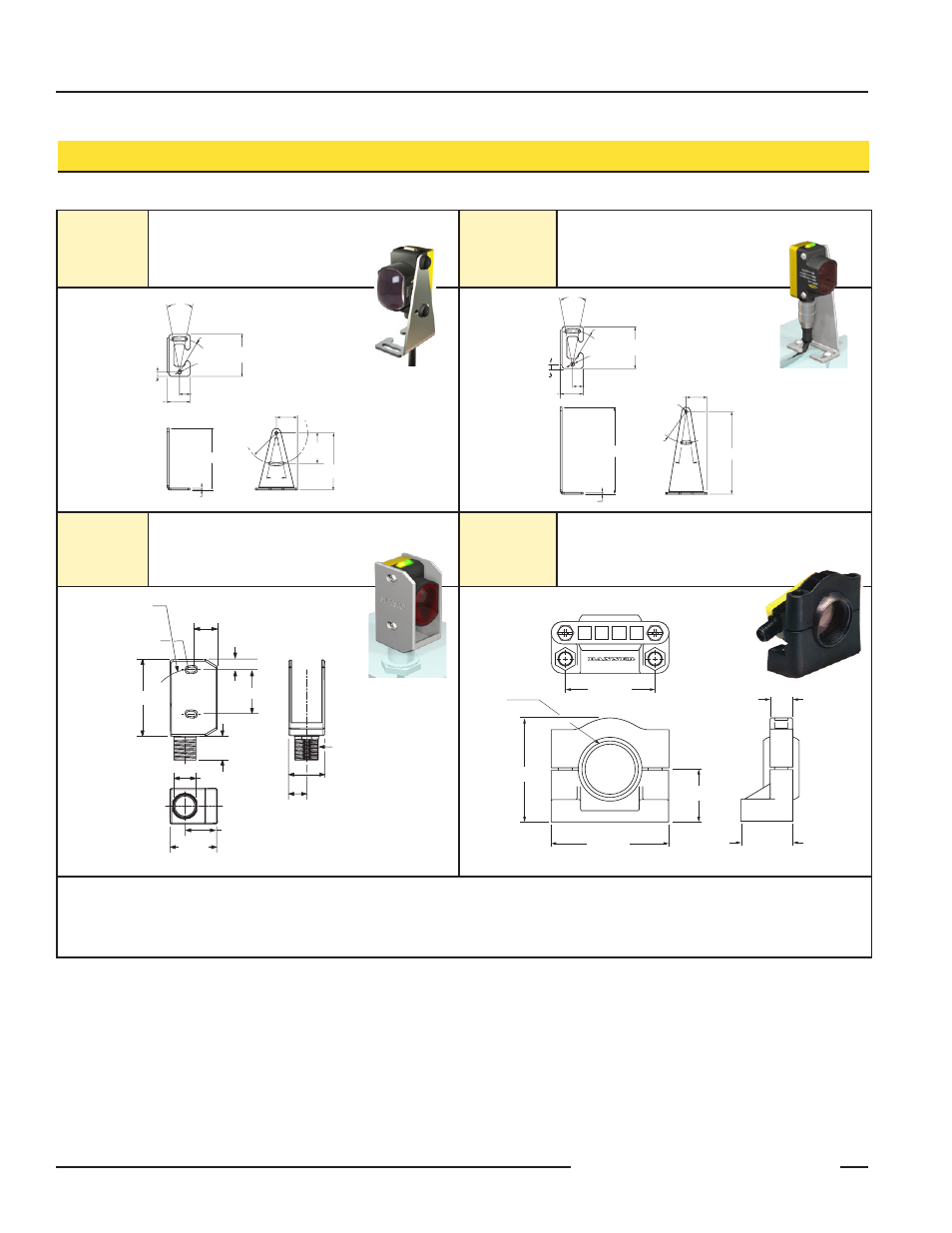

Mounting Brackets
NOTE: Other sensor models shown on some views below.
SMBQS30L • Right-angle bracket for cabled sensors
• 14-gauge stainless steel
• ± 12° tilt adjustment
• Clearance for M4 (#8) hardware SMBQS30LT • Tall right-angle bracket for QD sensors with straight
cordset connectors
• 14-gauge stainless steel
• ± 8° tilt adjustment
SMBQS30Y • Heavy-duty die-cast bracket with M18 vertical
mounting option
• ± 8° tilt adjustment for cabled sensors
• Nuts and lockwasher included
SMB30SC • Swivel bracket with 30 mm mounting hole for sensor
• Black reinforced thermoplastic polyester
• Stainless steel mounting and swivel locking hardware
included
Other Compatible Mounting Brackets (see Banner Photoelectric catalog or website for more information):
• SMB30MM
• SMB30A
• SMB30FA
16.35 mm
24.0 mm
35.0 mm
13.3 mm
26.5 mm
18.0 mm
56 mm
7.0 mm
33 mm
17.0 mm
M18 X 1
4 X Ø 3.3 mm
2 X R 33.0 mm
20°
4.5 mm
24.0 mm
11.0 mm
44.0 mm
R35.0 mm
ø4.3 mm
22.0 mm
R1.7 mm
R33.0 mm
91.4 mm
1.9 mm
86.4 mm
16 mm
20°
44.0 mm
R35.0 mm
4.5 mm
24.0 mm
11.0 mm
ø4.3 mm
22.0 mm
64.4 mm
1.9 mm
R33.0 mm
33.0 mm
59.4 mm
24°
50.8 mm
58.7 mm
66.5 mm
30.0 mm
29.0 mm
12.7 mm
M30 x 1.5
internal
thread
50.8 mm
58.7 mm
66.5 mm
30.0 mm
29.0 mm
12.7 mm
M30 x 1.5
internal
thread
