WORLD-BEAM
®
QS30ELVC Series
Push Buttons
Remote
0.04 seconds ≤ T ≤ 0.8 seconds
Indicators
Set
Switchpoint
• Align sensor to reflector
• Press and hold “+”
> 2 seconds • Align sensor to reflector
• Single-pulse remote line
Green Power LED: OFF
Amber Output LED: ON
Bargraph: Top two signal LEDs
alternate flashing
Sensor
Feedback
Switchpoint Accepted
Green Power LED: ON
Amber Output LED: ON (LO) or OFF (DO)
Bargraph: Appropriate LED ON
• Sensor returns to RUN mode with
new settings
Switchpoint Unacceptable
Green Power LED: ON
Amber Output LED: Flashing (Alarm State*)
Bargraph: All OFF
* See page 6

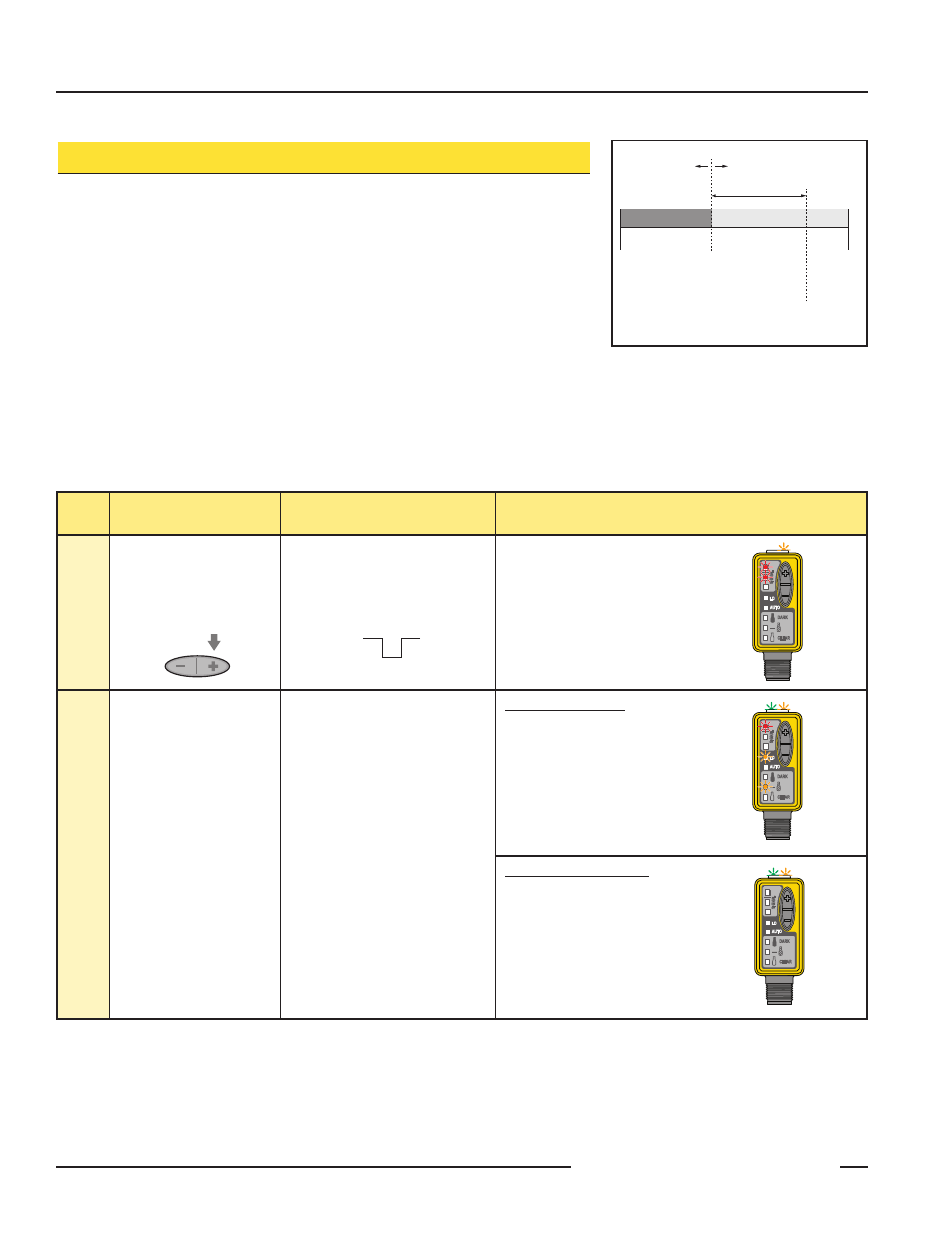

Single-Point Light SET
• Useful for clear object detection and other applications with small variations in contrast.
• Sets a switchpoint at 8 (clear), 16 (medium) or 32 (dark) percent below the signal from the
retroreflector.
• Switchpoint position is selectable using the “+” and “-” buttons. Select 8, 16, or 32
percent (Switchpoint Selection).
• Sensor must be aimed at the reflector during the SET process. All conditions darker than
the switchpoint condition result in ON output (Dark Operate). Output ON and OFF conditions
can be reversed by changing Light/Dark Operate in SETUP mode (factory setting: Dark
Operate).
Darkest
(no signal)
Most Light
(saturated
signal)
Output ON Output OFF
Location of switchpoint
Sensor
Switchpoint
Learned
Signal from
Retro Target
Offset based on
selected configuration
(+) (-)
Figure 3. Low-contrast SET (Dark Operate
shown)
or
T
T
T
T
T
T T
T T T
T T
T T
T
T T
T T
T
