Models PPSIM.. Sensor Interface Modules
P/N 126330
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
Installation
For mounting to a flat surface, unscrew one end cap, slide the DIN clips off of the housing,
and replace the end cap. Use the screw-holes in the end caps for mounting to a flat surface.

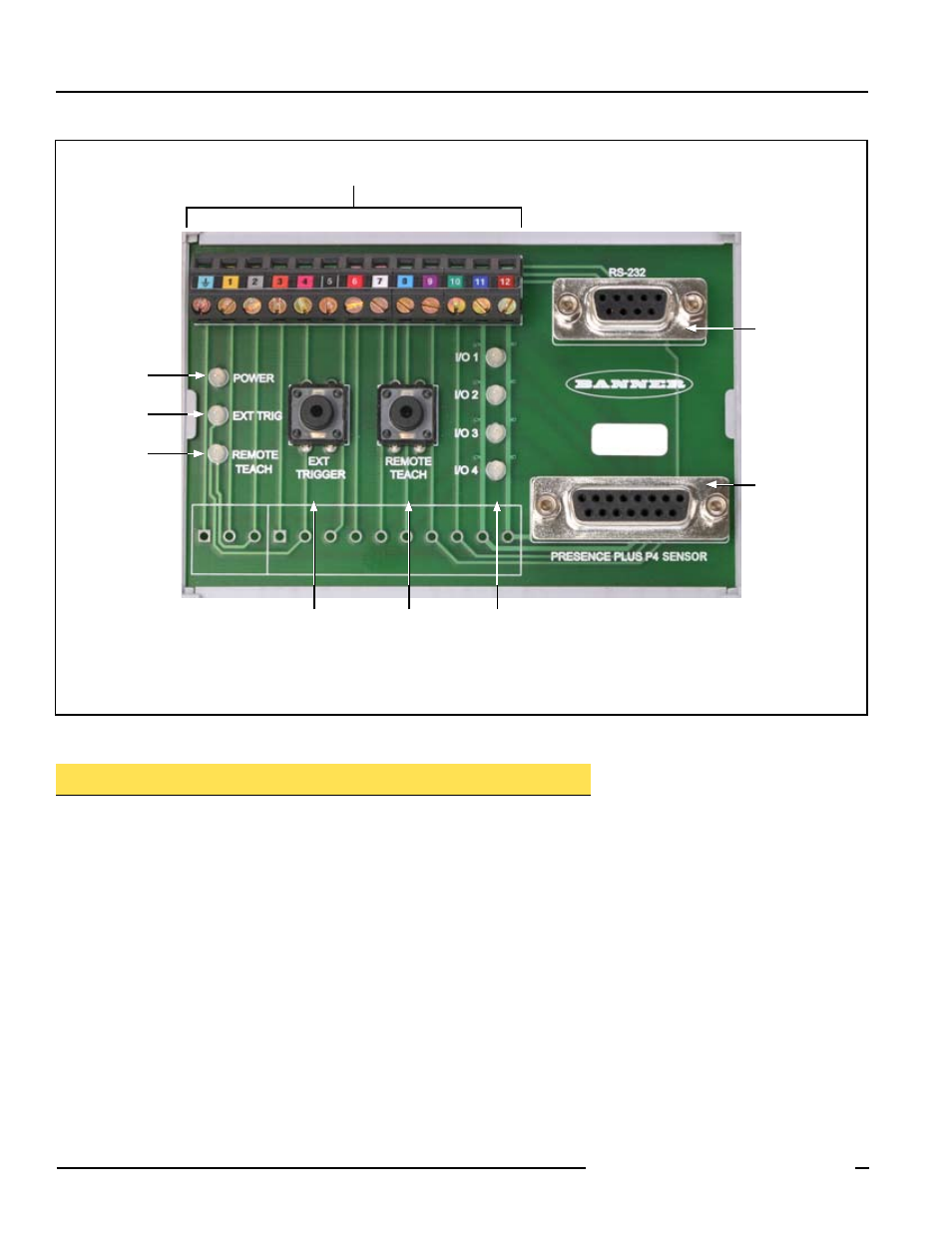

Figure 1. Features
Power LED
External
Trigger LED
Remote
TEACH LED
Terminal Block (all models)
DB-9
Connection
DB-15
Connection
(models
PPSIM..C only)
NOTE: Model PPSIM-PC shown. Models PPSIM..T have two terminal blocks and no DB-15 connection.
External
Trigger Push
Button
Remote
TEACH
Push Button
I/O 1 through
I/O 4 LEDs
