Banner EZ-SCREEN­ Safety Light Curtain Systems - Manual (Page 2)

EZA-MBK-21 –
EZ-SCREEN™ Mounting Bracket
2
P/N 121007
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
Light Screen
Model
Sensor Housing
Length
L1
Sensor #1 Sensor #2
Mounting
Dimension L2
Mounting
Dimension L3
Mounting
Dimension L4
Mounting
Dimension L5
SLSC..-300 372 mm (14.6") 310 mm (12.2") 280.8 mm (11.1") 424.7 mm (16.7") 395.5 mm (15.6")
SLSC..-450 522 mm (20.6") 460 mm (18.1") 430.8 mm (17.0") 574.7 mm (22.6") 545.5 mm (21.5")
SLSC..-600 671 mm (26.4") 609 mm (24.0") 579.8 mm (22.8") 723.7 mm (28.5") 694.5 mm (27.3")
SLSC..-750 821 mm (32.3") 759 mm (29.9") 729.8 mm (28.7") 873.7 mm (34.4") 844.5 mm (33.2")
SLSC..-900 971 mm (38.2") 909 mm (35.8") 879.8 mm (34.6") 1023.7 mm (40.3") 994.5 mm (39.2")
SLSC..-1050 1120 mm (44.1") 1058 mm (41.7") 1028.8 mm (40.5") 1172.7 mm (46.2") 1143.5 mm (45.0")
SLSC..-1200 1270 mm (50.0") 1208 mm (47.6") 1178.8 mm (46.4") 1322.7 mm (52.1") 1293.5 mm (50.9")
SLSC..-1350 1420 mm (55.9") 1358 mm (53.5") 1328.8 mm (52.3") 1472.7 mm (58.0") 1443.5 mm (56.8")
SLSC..-1500 1569 mm (61.8") 1507 mm (59.3") 1477.8 mm (58.2") 1621.7 mm (63.8") 1592.5 mm (62.7")
SLSC..-1650 1719 mm (67.7") 1657 mm (65.2") 1627.8 mm (64.1") 1771.7 mm (69.8") 1742.5 mm (68.6")
SLSC..-1800 1869 mm (74.9") 1807 mm (71.1") 1777.8 mm (70.0") 1921.7 mm (75.7") 1892.5 mm (74.5")
33.7 mm (1.33")
98.2 mm
(3.87")
63.2 mm
(2.49")
54.7 mm (2.15")
L3
CL
CL
CL
CL
L2
CL
L5
L4
30° Sensor
Rotation Potential
Alternate Bracket
Orientation
Alternate
Bracket
Orientation
Jumper
Assembly
Bracket #2
Bracket #1
Bracket #3
Bracket #4
Sensor #1
Sensor #2
Machine
Interface
Cable

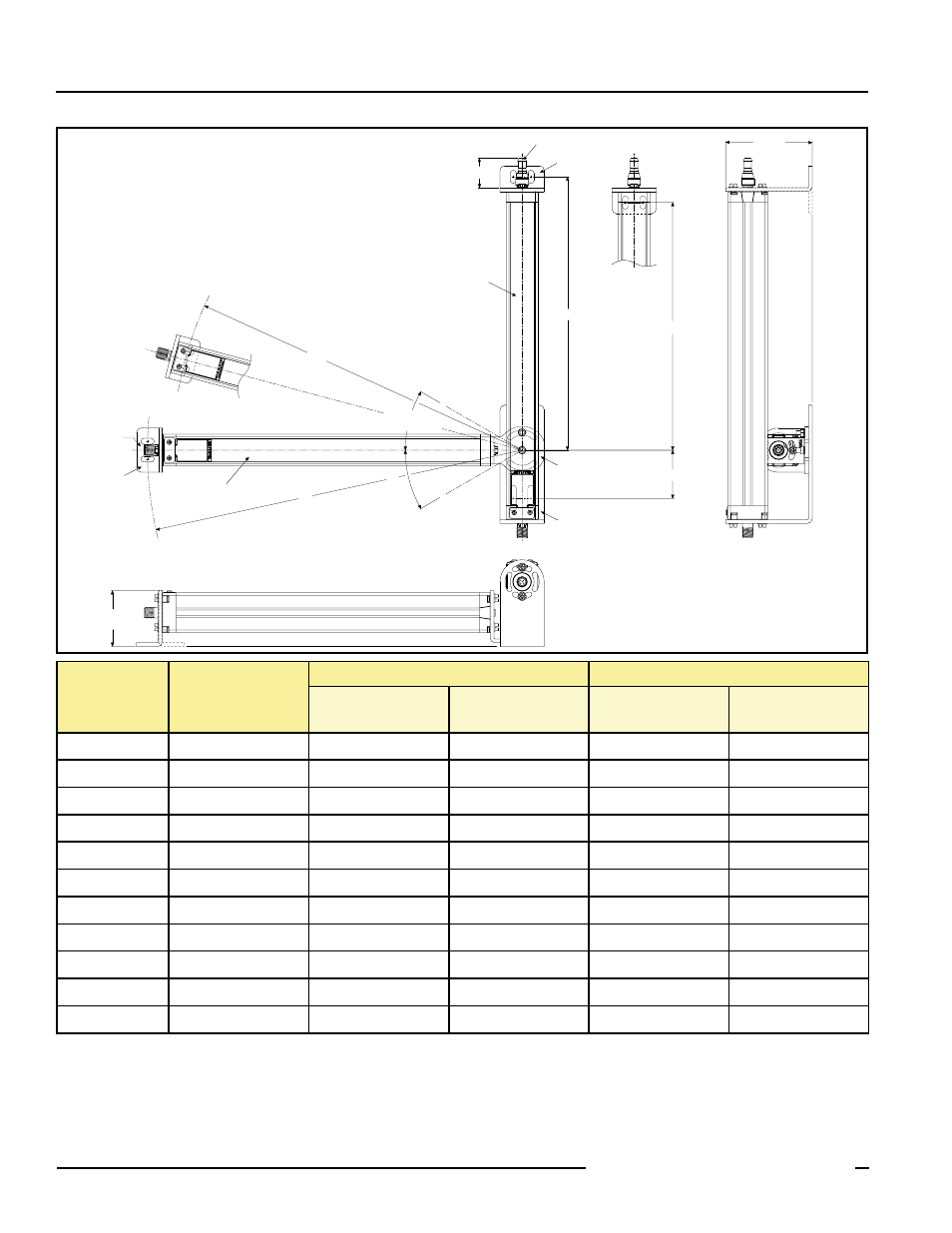

Figure 1. Machine Interface Cable oriented
horizontally (0° to ±30°)
