Metrohm NIRS XDS MasterLab Analyzer - Manual (Page 123)

▪▪▪▪▪▪▪ 121

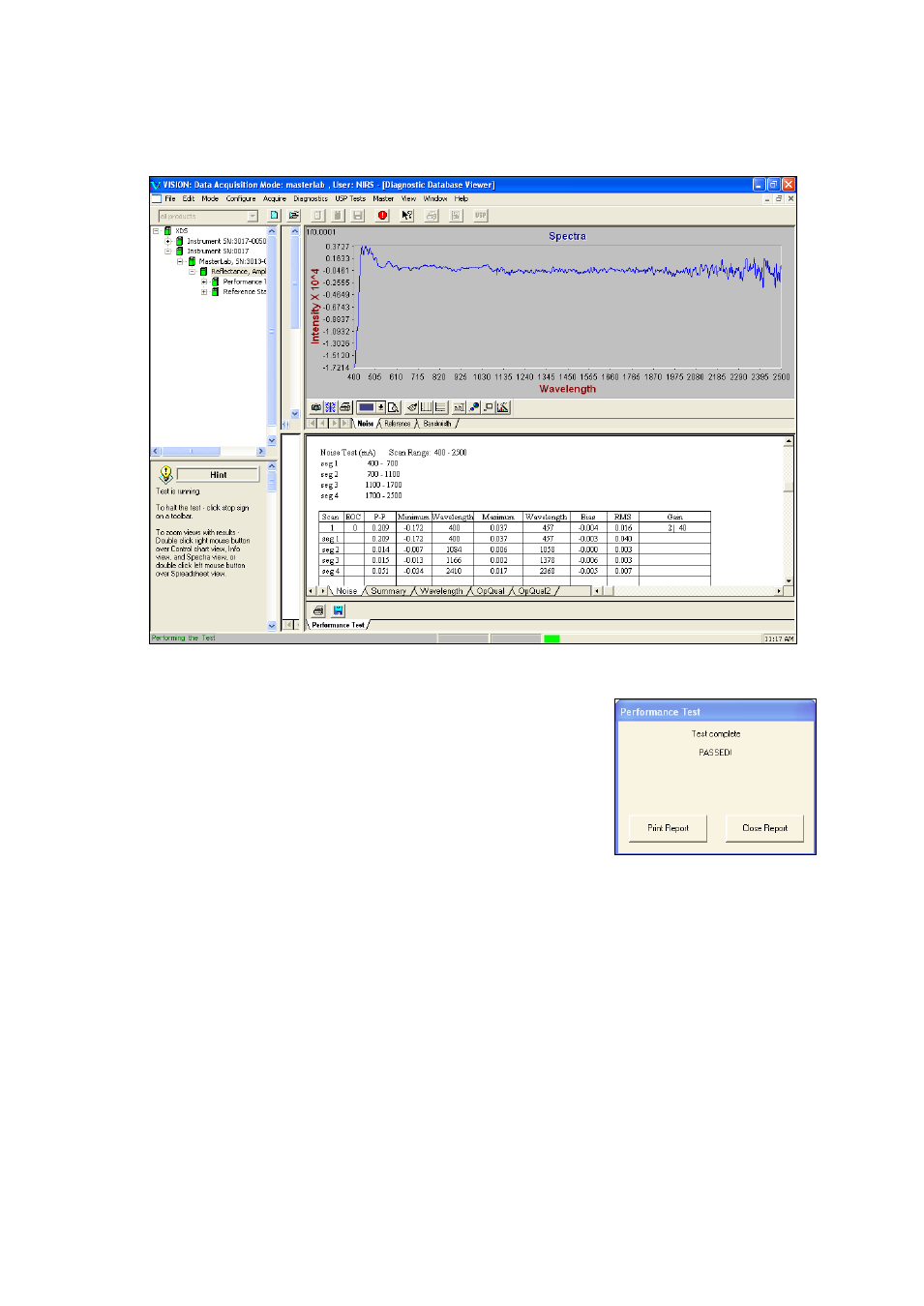

Because only the right two quadrants of the screen will be updated, many users “pull the screen
over” to see better, as shown on the next page.
This view shows the fill width of the tabulated results, and expands the spectrum for better viewing.
When Performance Test is finished, a message box is displayed to
indicate test completion and status. All measured values are
compared with acceptance criteria stored in Vision. If all results
meet acceptance criteria, the test is successful and this dialog box is
displayed.
Click “Print Report” for a hard copy of results. Before clicking “Close
Report”, the user is directed to the tabular display.
To view the tabular display of results, place cursor over the tabular display and double-click twice.
Vision enlarges the tabular portion of the screen. Now click on the OpQual tab, near the bottom of
the screen. Noise summary results are shown.
