3.3 Multi-mode electrode (MME)
757 VA Computrace – Hardware
27
94
95
88
17
92
93
97
96
96

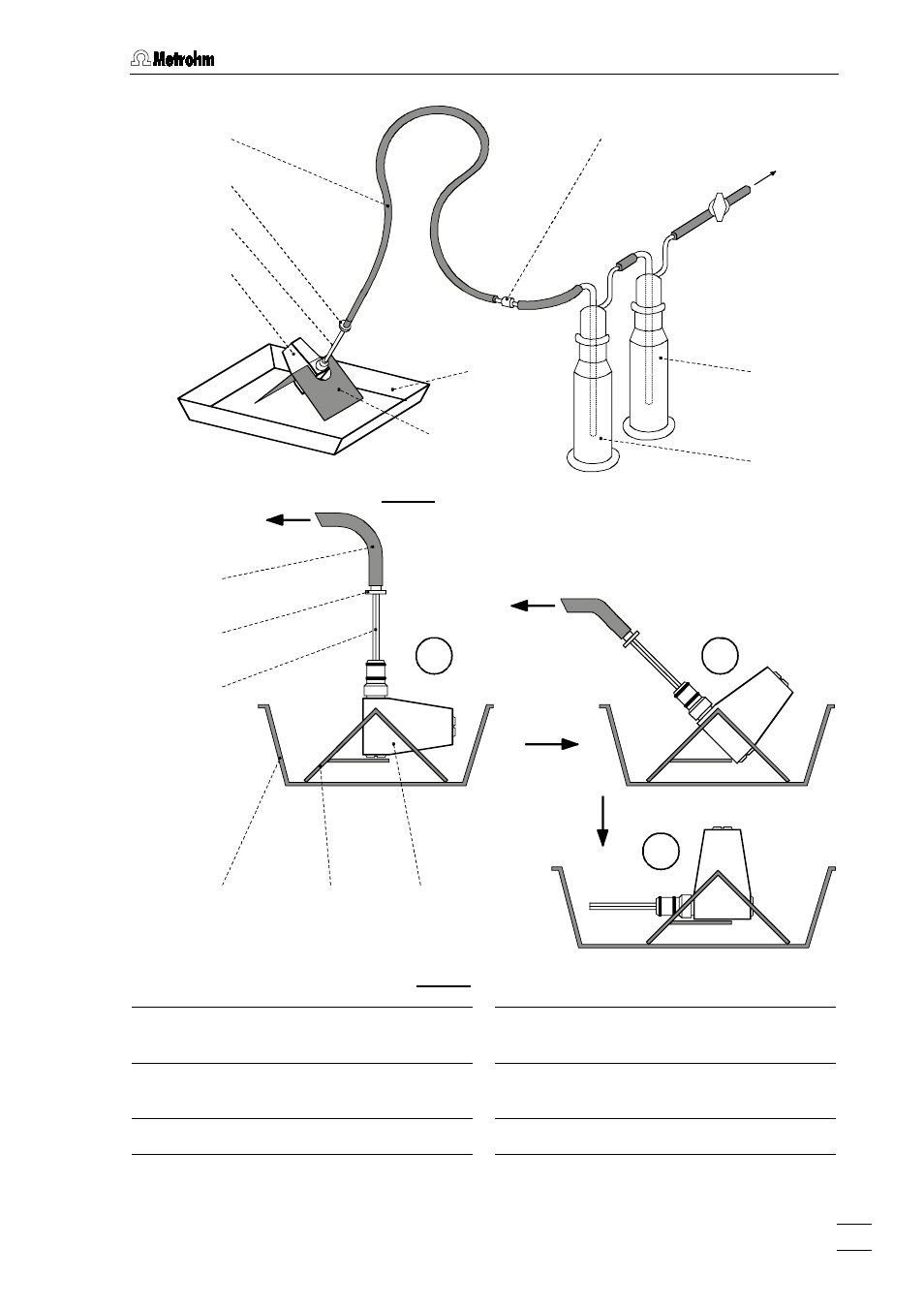

Fig. 10: Setting up the filling station
93
94
95
88
17
1
92
2
3
Fig. 11: Filling the capillary
17
Multi-mode electrode
(6.1246.0020)
94 Filling tubing (6.1817.000)
88
Glass capillary (6.1226.030)
95 Filling cone (4.420.2860)
(part of the filling tubing 94)
92
Drip pan (6.2711.030)
96 Gas wash bottle
93 Electrode holder (6.2615.030)
97 Tubing coupling (6.1809.000)
(part of the filling tubing 94)
Vacuum
release tap
Pump
Vacuum
Vacuum
