4.2.2. HBE Card Installation
The PCI-e HBE Card requires an x8 lane slot connector or larger. Computers
with PCI-e slot connectors less than x8 lanes will not physically accommodate
the HBE. PCI-e slots with x16 lane connectors will accommodate a HBE Card.
4.2.3. HBE Cable Connection
The HBE PCI-e x8 cable interfaces/connects the Mac, or PC, to the PRO Mini.
The green tab is up in the Mac orientation. To remove, pull the tab to unlock the
latch and then pull the metal body to remove the connector.

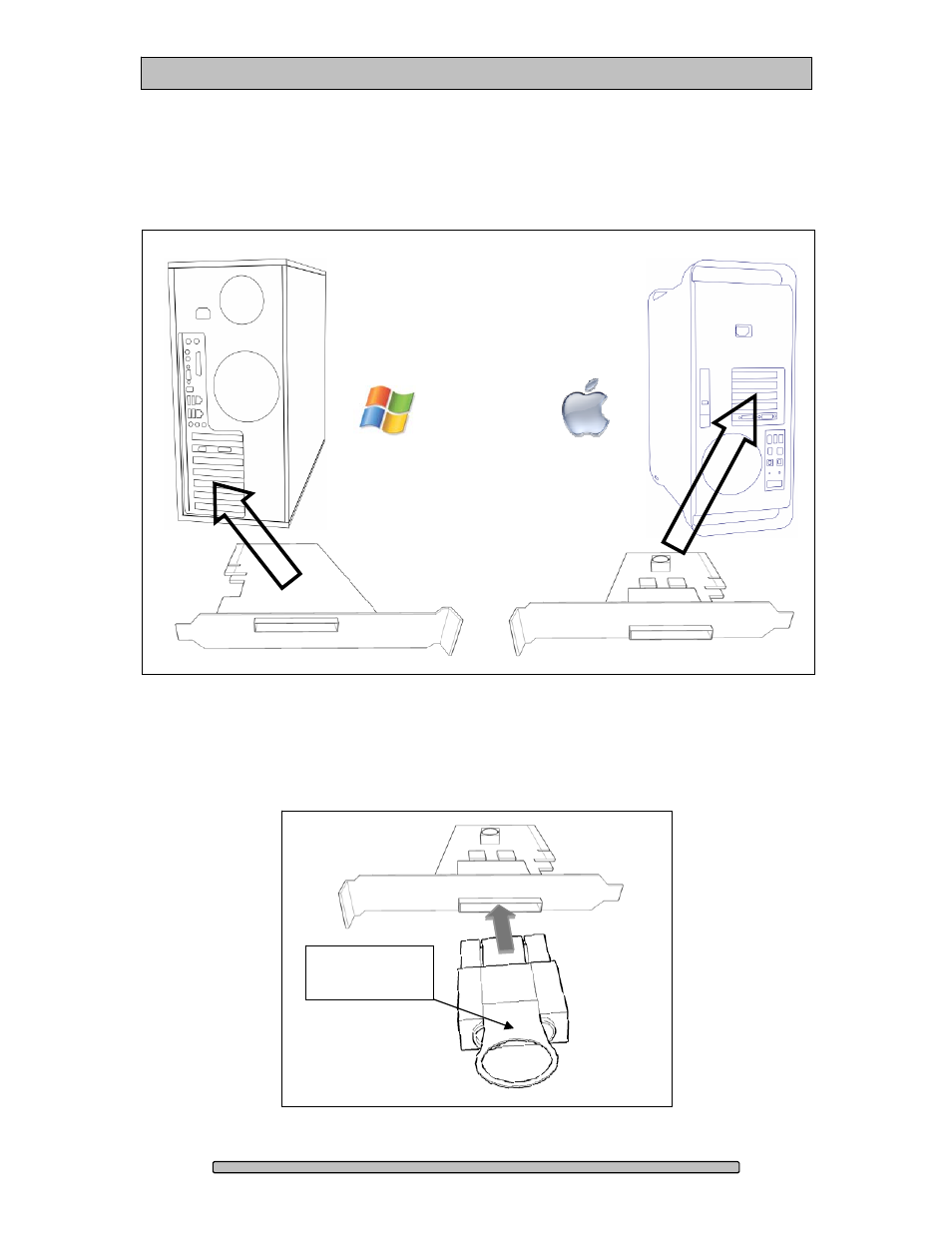

Green Tab
on top
Typical
Windows PC
Apple Mac Pro
& Power Mac
