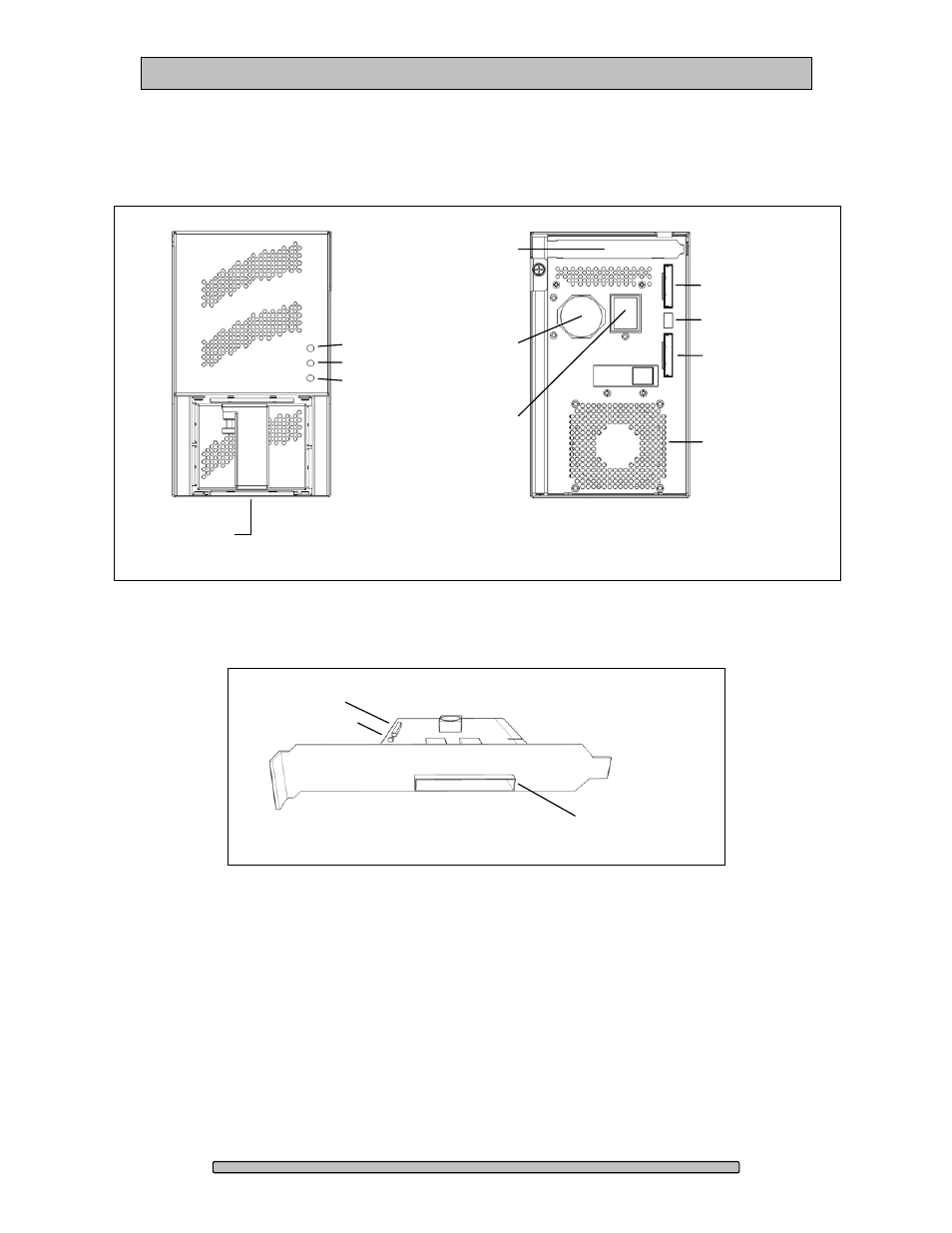

3.3. Front, back and adapters
Front View Rear View
Host Bus Extender Card
Configuration
Switches
Uplink Port
Link Status LED
Power Plug
POWER IS REMOTELY
CONTROLLED BY
HOST COMPUTER
Power Supply
Cooling Fan
Host
Computer
Port
Removable
MPD Pack
Disk Module
Temp
Fan
Alarm Reset
Configuration
Switches
Expansion
Port
Available
PCI Express
Card Slot
( Gen 2 - x8 Lane )
Enclosure
Cooling Fan
