DJI H3-2D - Manual (Page 10)

©2013 DJI Innovations. All Rights Reserved.
10
positive pole( + )
negative pole(-)
Battery
(3S~6S)
Note:
The GCU can be connected to any CAN
ports on the PMU or to the CAN port on
the GPS.(Any spare CAN port on the
WKM system.)
To Battery
Note:
The PMU and GCU can both connect to
the same battery of LiPo 3S-6S.
Gimbal TILT Control
Channel X3 is for Gimbal TILT Control,
connect it correctly, and configure the right
channel on your Transmitter.

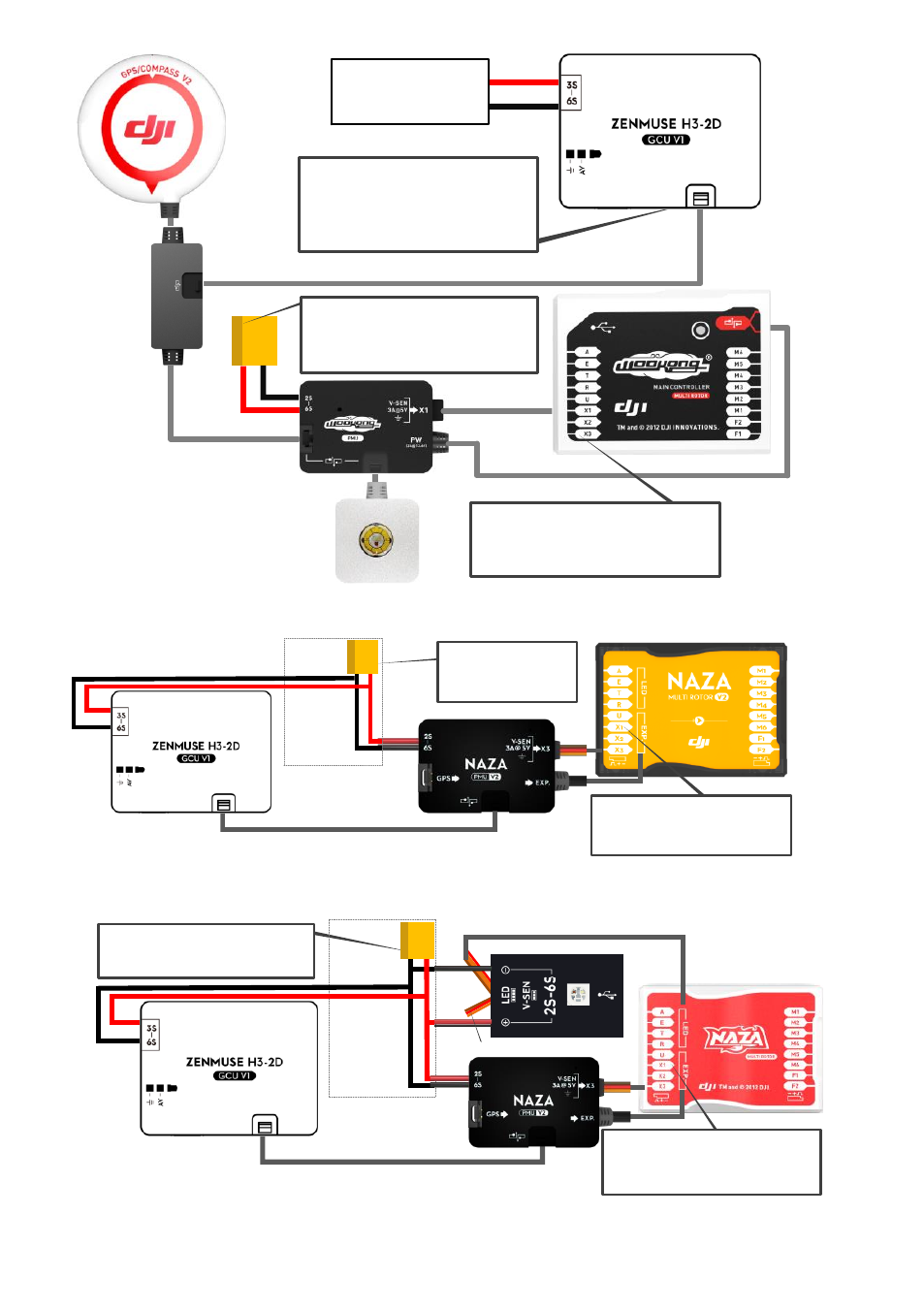

Fig.1 GCU and WKM Connection Diagram
To Battery
Note: The PMU and GCU can
both connect to the same
battery of LiPo 3S-6S.
Connecter made
by yourself
Gimbal TILT Control
Channel X1 is for Gimbal TILT Control,
connect it correctly, and configure the right
channel on your Transmitter.
Fig.2 GCU and NAZA-M V2 Connection Diagram
Disconnected
To Battery
Note: The PMU and GCU can both
connect to the same battery of LiPo 3S-6S.
Connecter made
by yourself
Gimbal TILT Control
Channel X1 is for Gimbal TILT Control,
correctly configure the right channel on
your Transmitter.
Fig.3 GCU and NAZA-M Connection Diagram with PMU V2 (NAZA-M V2 Accessory)
